Description

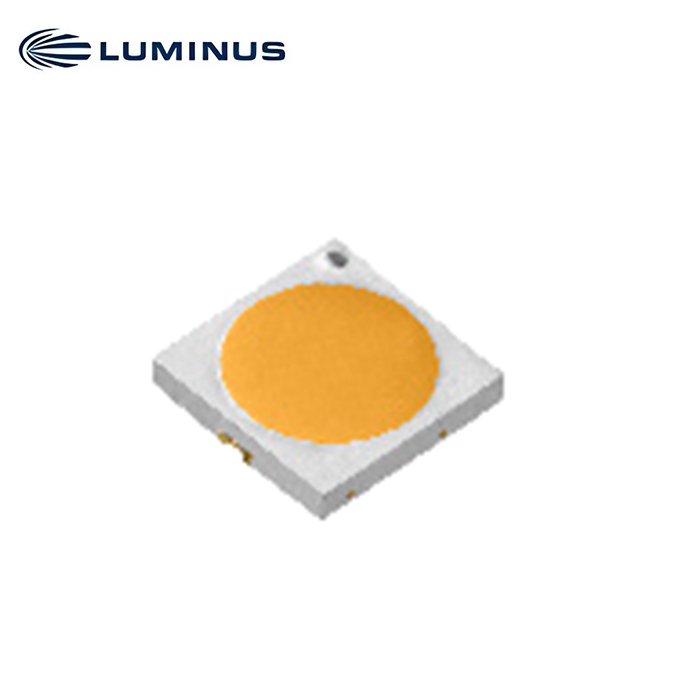

5050 -8100 Mid Power LED

Luminus mid power LEDs are lighting class solutions designed for high performance general lighting applications These state-of-the-art LEDs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality

Features
• High efficacy
• Low thermal resistance
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
• RoHs and REACH compliant

Applications
• Replacement lamps
• Panel lighting
• Down lights
• Architectural lighting

Product Selection Table

Test condition = 200 mA, Ts=25 ºC

Nominal CCT	Minimum CRI	Ordering Part Number	Minimum Flux (Lumens)	Typical Flux (Lumens)
2700K	70	MP-5050-8100-27-70	650	730
	80	MP-5050-8100-27-80	650	705
	90	MP-5050-8100-27-90	560	605
3000K	70	MP-5050-8100-30-70	700	770
	80	MP-5050-8100-30-80	700	745
	90	MP-5050-8100-30-90	600	635
4000K	70	MP-5050-8100-40-70	700	805
	80	MP-5050-8100-40-80	700	775
	90	MP-5050-8100-40-90	600	660
5000K	70	MP-5050-8100-50-70	700	805
	80	MP-5050-8100-50-80	700	775
	90	MP-5050-8100-50-90	600	660
5700K	70	MP-5050-8100-57-70	700	805
	80	MP-5050-8100-57-80	700	775
	90	MP-5050-8100-57-90	600	660
6500K	70	MP-5050-8100-65-70	700	805
	80	MP-5050-8100-65-80	700	775
	90	MP-5050-8100-57-90	600	660

Optical and Electrical Characteristics(Ts=250C)

Parameter	Symbol	Minimum	Typical	Maximum	Unit	Condition
Forward Voltage	Vf	23	26	29	V	If=200mA
Reverse Current	Ir			10	uA	V =5V r
View Angle	2θ1/2		115		º	If=200mA
Thermal Resistance	Rthj-sp		2		ºC/W	If=200mA
Electrostatic Discharge	ESD	1000			V

Absolute Maximum Ratings (Ts=250C)

Parameter	Symbol	Rating	Unit
Forward Current	If	240	mA
Pulse Forward Current	Ifp	300	mA
Power Dissipation	Pd	6,960	mW
Reverse Voltage	V r	5	V
Operating Temperature	T opr	-40~+85	°C
Storage Temperature	T stg	-40~+85	°C
Junction Temperature	Tj	125	°C
Soldering Temperature	Tsld	230 °C or 260 °C for 10 sec
