Description

CCT TUNABLE Modules

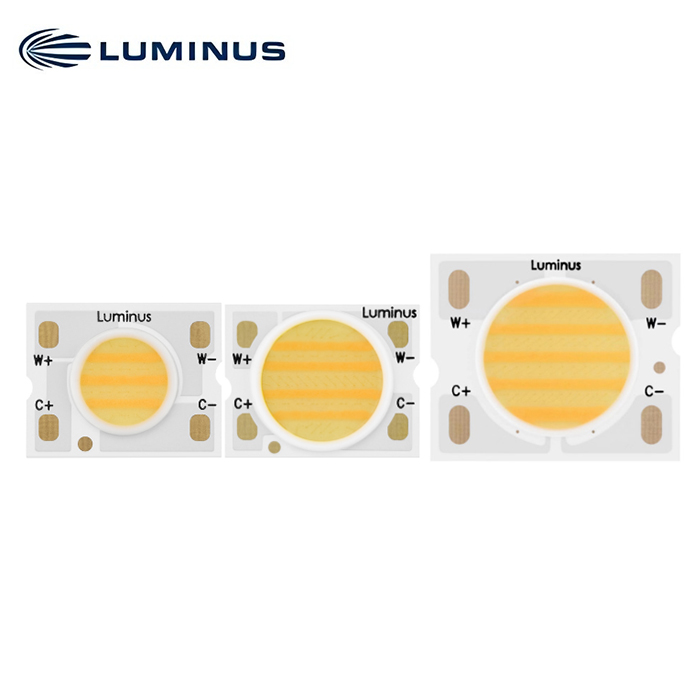

Luminus recently introduced the Gen 2 CCT tunable COBs, improving the first-generation portfolio. These Gen 2 dynamic COBs feature two independent channels with 90+ CRI warm and cool white engineered in a multi-stripe design for excellent color mixing and high flux density for directional lighting. Customers can easily achieve system beam angles from 10 to 40 degrees using standard secondary optics to deliver uniform color and outstanding quality of light. With a 6500K to 2700K CCT range and consistent white light <3 SDCM these COBs are ideal for commercial and residential applications including human-centric lighting, museum and high-end retail, hospitality, and circadian lighting. To enable a smooth transition from Gen 1 to Gen 2, Luminus has kept the same footprint and thus allows customers to use their existing ecosystem. New customers also have a large ecosystem of optics, holders, and connectors to choose from, since these products use the industry standard 12x15mm and 20x24mm footprints which have been common for 2-channel COBs over many years.

APPLICATIONS

• Human centric lighting
• Hospitality / hotel / restaurant lighting
• Residential lighting
• Museum and high-end retail lighting
• Circadian lighting in hospitals, offices, or schools
• Public, commercial buildings
• Ceiling and wall mounted lights
• Multi-function space lighting

FEATURES

• Two channel cool and warm 90+ CRI
• 95 CRI typical with both channels powered on
• High lumen density for directional lighting
• Enables system beam angles from 10 to 40 degrees
• 4000 K to 1800 K CCT range for residential and hospitality lighting
• 6500 K to 2700 K CCT range for commercial lighting
• 5000 K Salud™ to 2200 K CCT range for healthy circadian human centric lighting
• Robust design with standard COB technology LM-80
• Consistent white light <3 SDCM
• Specified “hot” performance and 100% factory tested at Tj = 85°C



PRODUCT SELECTOR (GEN 2)



PRODUCT SELECTOR

Download Luminus Tunable RGBW Modules Datasheet



PRODUCT SELECTOR (GEN 1)

Not recommended for new design
