Description

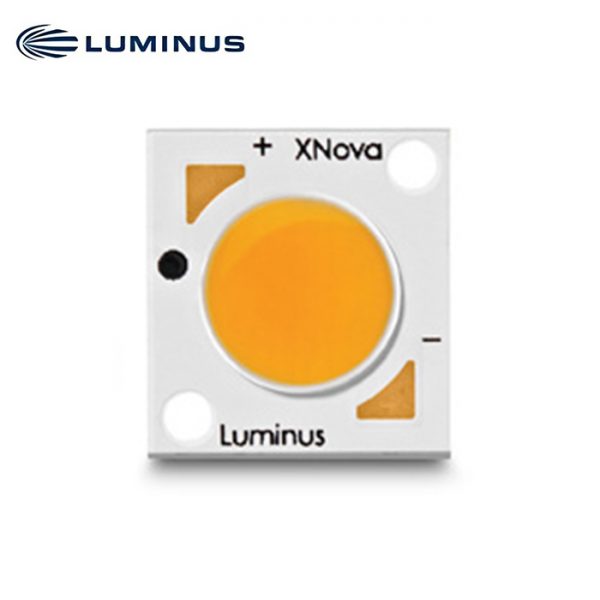

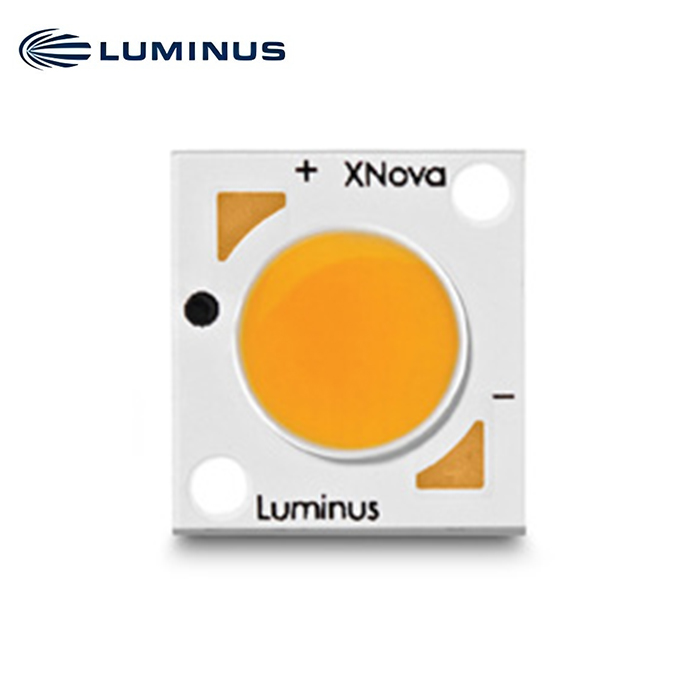

CLM-6 COB Arrays White LED
Luminus XNova™ Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 10,000lm, all major color temperatures and can deliver color rendering greater than 97 at 2700K and 3000K and R9 equal to 95. These breakthroughs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality.
Features
• High lumen output and efficacy typical
• Over 370 lm, 114 LPW @ 3000K, 25ºC
• Over 400 lm, 125 LPW @ 5000K, 25ºC
• Complete CCT range 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 80 or 90 CRI min. up to 95 min. in warm white
• 3-step MacAdam Ellipse color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACh compliant
Applications
• Spotlights/Track Lights
• Down Lights
• MR16 Replacement lamps
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
Color Temperature, CRI and R9 Values
| Color Temperatures | XX Value | CRI | R9 |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2700K, 3000K | 90 | >90 | >50 |
CLM-6 Flux Bin Part Numbers
The following tables describe the products with a maximum and minimum output flux measured at 120mA and specified at 85ºC. The
values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºC junction temperature. Luminus may choose to ship a smaller chromaticity bin in an order for a larger.
| Output Flux (lm) | Reference | Color
Rendering Index |
Ordering Part Number | |||
| CCT | Typ.
(85ºC) |
Min.
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 3-step MacAdam Ellipse | 2-step MacAdam Ellipse |
| 2700K | 315 | 290 | 350 | 80 | CLM-6-27-80-27-AA00-F2-3 | CLM-6-27-80-27-AA00-F2-2 |
| 245 | 225 | 270 | 90 | CLM-6-27-90-27-AA00-F2-3 | CLM-6-27-90-27-AA00-F2-2 | |
| 235 | 215 | 260 | 95 | CLM-6-27-95-27-AA00-F2-3 | CLM-6-27-95-27-AA00-F2-2 | |
| 3000K | 330 | 310 | 370 | 80 | CLM-6-30-80-27-AA00-F2-3 | CLM-6-30-80-27-AA00-F2-2 |
| 280 | 260 | 310 | 90 | CLM-6-30-90-27-AA00-F2-3 | CLM-6-30-90-27-AA00-F2-2 | |
| 260 | 240 | 290 | 95 | CLM-6-30-95-27-AA00-F2-3 | CLM-6-30-95-27-AA00-F2-2 | |
| 3500K | 340 | 315 | 380 | 80 | CLM-6-35-80-27-AA00-F2-3 | CLM-6-35-80-27-AA00-F2-2 |
| 290 | 265 | 320 | 90 | CLM-6-35-90-27-AA00-F2-3 | CLM-6-35-90-27-AA00-F2-2 | |
| 4000K | 360 | 335 | 400 | 80 | CLM-6-40-80-27-AA00-F2-3 | CLM-6-40-80-27-AA00-F2-2 |
| 305 | 280 | 335 | 90 | CLM-6-40-90-27-AA00-F2-3 | CLM-6-40-90-27-AA00-F2-2 | |
| Output Flux (lm) | Reference | Color
Rendering Index |
Part Number | |||
| CCT | Typ.
(85ºC) |
Min..
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 5-step MacAdam Ellipse | 3-step MacAdam Ellipse |
| 5000K | 370 | 340 | 400 | 80 | CLM-6-50-80-27-AA00-F2-5 | CLM-6-50-80-27-AA00-F2-3 |
| 6500K | 370 | 340 | 400 | 80 | CLM-6-65-80-27-AA00-F2-5 | CLM-6-65-80-27-AA00-F2-3 |
CLM-6 Flux Bin Part Numbers
The following tables describe the products with a maximum and minimum output flux measured at 180mA and specified at 85ºC. The
values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºC junction temperature. Luminus may choose to ship a smaller chromaticity bin in an order for a larger.
| Output Flux (lm) | Reference | Color
Rendering Index |
Ordering Part Number | |||
| CCT | Typ.
(85ºC) |
Min..
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 3-step MacAdam Ellipse | 2-step MacAdam Ellipse |
| 2700K | 315 | 290 | 350 | 80 | CLM-6-27-80-18-AA00-F2-3 | CLM-6-27-80-18-AA00-F2-2 |
| 245 | 225 | 270 | 90 | CLM-6-27-90-18-AA00-F2-3 | CLM-6-27-90-18-AA00-F2-2 | |
| 235 | 215 | 260 | 95 | CLM-6-27-95-18-AA00-F2-3 | CLM-6-27-95-18-AA00-F2-2 | |
| 3000K | 330 | 310 | 370 | 80 | CLM-6-30-80-18-AA00-F2-3 | CLM-6-30-80-18-AA00-F2-2 |
| 280 | 260 | 310 | 90 | CLM-6-30-90-18-AA00-F2-3 | CLM-6-30-90-18-AA00-F2-2 | |
| 260 | 240 | 290 | 95 | CLM-6-30-95-18-AA00-F2-3 | CLM-6-30-95-18-AA00-F2-2 | |
| 3500K | 340 | 315 | 380 | 80 | CLM-6-35-80-18-AA00-F2-3 | CLM-6-35-80-18-AA00-F2-2 |
| 290 | 265 | 320 | 90 | CLM-6-35-90-18-AA00-F2-3 | CLM-6-35-90-18-AA00-F2-2 | |
| 4000K | 360 | 335 | 400 | 80 | CLM-6-40-80-18-AA00-F2-3 | CLM-6-40-80-18-AA00-F2-2 |
| 305 | 280 | 335 | 90 | CLM-6-40-90-18-AA00-F2-3 | CLM-6-40-90-18-AA00-F2-2 | |
| Output Flux (lm) | Reference | Color
Rendering Index |
Part Number | |||
| CCT | Typ.
(85ºC) |
Min..
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 5-step MacAdam Ellipse | 5-step MacAdam Ellipse |
| 5000K | 370 | 340 | 400 | 80 | CLM-6-50-80-18-AA00-F2-5 | CLM-6-50-80-18-AA00-F2-3 |
| 6500K | 370 | 340 | 400 | 80 | CLM-6-65-80-18-AA00-F2-5 | CLM-6-65-80-18-AA00-F2-3 |
CLM-6 Flux Bin Part Numbers
The following tables describe the products with a maximum and minimum output flux measured at 360mA and specified at 85ºC. The
values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºC junction temperature. Luminus may choose to ship a smaller chromaticity bin in an order for a larger.
| Output Flux (lm) | Reference | Color
Rendering Index |
Ordering Part Number | |||
| CCT | Typ.
(85ºC) |
Min..
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 3-step MacAdam Ellipse | 2-step MacAdam Ellipse |
| 2700K | 315 | 290 | 350 | 80 | CLM-6-27-80-9-AA00-F2-3 | CLM-6-27-80-9-AA00-F2-2 |
| 245 | 225 | 270 | 90 | CLM-6-27-90-9-AA00-F2-3 | CLM-6-27-90-9-AA00-F2-2 | |
| 235 | 215 | 260 | 95 | CLM-6-27-95-9-AA00-F2-3 | CLM-6-27-95-9-AA00-F2-2 | |
| 3000K | 330 | 310 | 370 | 80 | CLM-6-30-80-9-AA00-F2-3 | CLM-6-30-80-9-AA00-F2-2 |
| 280 | 260 | 310 | 90 | CLM-6-30-90-9-AA00-F2-3 | CLM-6-30-90-9-AA00-F2-2 | |
| 260 | 240 | 290 | 95 | CLM-6-30-95-9-AA00-F2-3 | CLM-6-30-95-9-AA00-F2-2 | |
| 3500K | 340 | 315 | 380 | 80 | CLM-6-35-80-9-AA00-F2-3 | CLM-6-35-80-9-AA00-F2-2 |
| 290 | 265 | 320 | 90 | CLM-6-35-90-9-AA00-F2-3 | CLM-6-35-90-9-AA00-F2-2 | |
| 4000K | 360 | 335 | 400 | 80 | CLM-6-40-80-9-AA00-F2-3 | CLM-6-40-80-9-AA00-F2-2 |
| 305 | 280 | 335 | 90 | CLM-6-40-90-9-AA00-F2-3 | CLM-6-40-90-9-AA00-F2-2 | |
| Output Flux (lm) | Reference | Color
Rendering Index |
Part Number | |||
| CCT | Typ.
(85ºC) |
Min..
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 5-step MacAdam Ellipse | 5-step MacAdam Ellipse |
| 5000K | 370 | 340 | 400 | 80 | CLM-6-50-80-9-AA00-F2-5 | CLM-6-50-80-9-AA00-F2-3 |
| 6500K | 370 | 340 | 400 | 80 | CLM-6-65-80-9-AA00-F2-5 | CLM-6-65-80-9-AA00-F2-3 |
CLM-6 Operating Characteristics1
27V Operating Conditions
| Parameter | Symbol | Typical | Maximum | Unit |
| Forward Current2 | If | 120 | 240 | mA |
| Forward Voltage | Vf | 27 | 31 | V |
18V Operating Conditions
| Parameter | Symbol | Typical | Maximum | Unit |
| Forward Current2 | If | 180 | 360 | mA |
| Forward Voltage | Vf | 18 | 20 | V |
9V Operating Conditions
| Parameter | Symbol | Typical | Maximum | Unit |
| Forward Current2 | If | 360 | 720 | mA |
| Forward Voltage | Vf | 9 | 11 | V |
Operating Conditions
| Parameter | Symbol | Typical | Maximum | Unit |
| Power | 3.24 | 6.5 | W | |
| Operating Case Temperature3 | T c | 105 | ºC | |
| Light Emitting Surface Diameter | LES | 6.3 | mm | |
| Thermal Resistance (junction-to-case) | Θjc | 2.33 | ºC/W | |
| Junction Temperature | Tj | 140 | ºC | |
| Viewing Angle | 120 | Degree |
