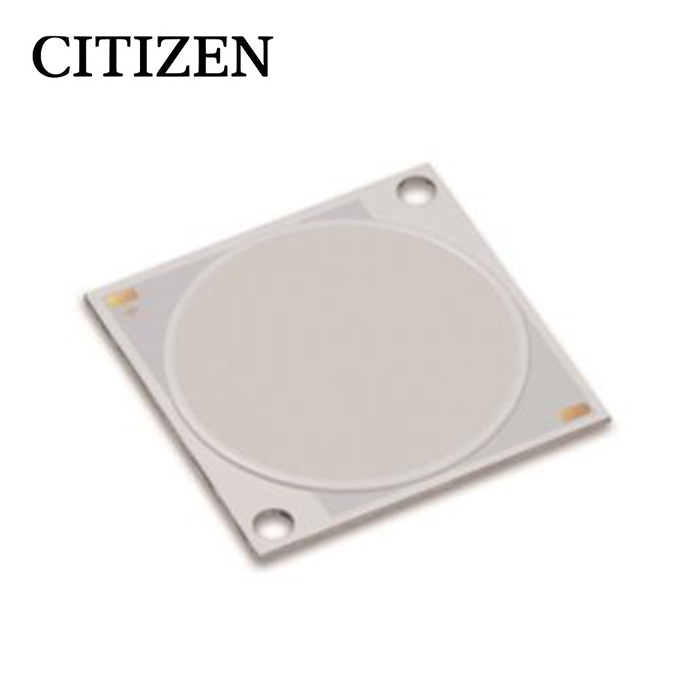

CITILED COB Series Blue ModelCLU058-3618C4-B455-XX
CITIZEN ELECTRONICS was the first COB manufacturer. Our long-term advanced knowledge and packaging techniques have enabled us to provide products with excellent reliability and high quality. We succeeded in developing the high-power blue light COB, with in excess of 400W power, by adopting our specific heat-release technique.
The blue-colored COB is intended for applications such as lighting for swimming pools, landscapes and security. This is also a product with as long a service life as conventional products. The outer dimensions and LES sizes are the same as those of the conventional products. The optical characteristics values were obtained at Tc=25C.
Features
・ Mechanical Dimensions : 38.0 × 38.0 × 1.4 (mm)
・ Package Structure : Aluminum Base Chip on Board
・ Reference Assembly : M3 screw, Connector
・ Color : Blue
・ Wave length Dominant : Typ. 455 (nm)
・ Thermal Resistance : 0.10C/W
・ Maximum drive current : 3240 mA
・ RoHS compliant
・ Better die arrangement for optics
・ Wide range of radiant flux and high efficacy
・ Improved lumen density compared with previous version
・ UL recognized component (E358566)
2-1. Electro Optical Characteristics
| Product code | Color | Radiant
Flux ( W ) |
Wave Length
Dominant (nm) |
Forward
Current ( mA ) |
Forward Voltage
( V ) |
Thermal
Resistance Rj-c ( C / W ) |
||||||
| Min. | Max | Min. | Max. | Min. | Typ. | Max. | ||||||
| CLU058-3618C4-B455-XX | Blue | 75 | 113 | 445 | 465 | 1,620 | 98.5 | 107.1 | 115.7 | 0.10 | ||
2-2. Absolute Maximum Ratings
| Parameter | Symbol | Rating |
| Input Power (W) | Pi | 404.7 |
| Forward Current (mA) | If | 3240 |
| Reverse Current (mA) | Ir | 1 |
| Operating Temperature (C) | Top | -40 ~ +100 |
| Storage Temperature (C) | Tst | -40 ~ +100 |
| Case Temperature (C) | Tc | 105 |
| Junction Temperature (C) | Tj | 140 |
