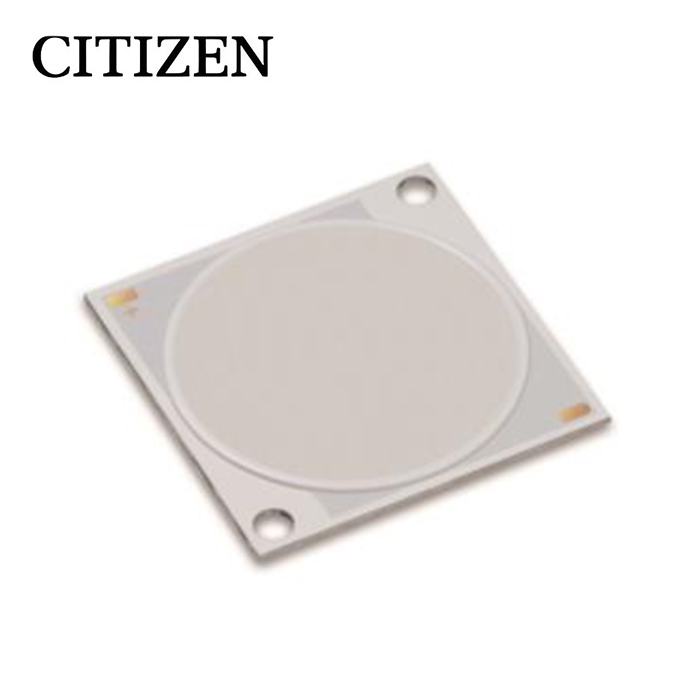

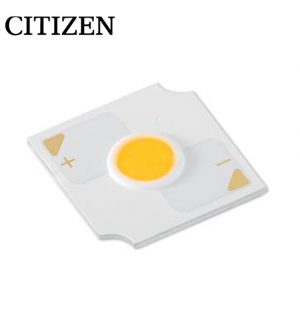

CITILED COB Series Blue Type CLU551-3626C4-B455-XX-B2
CITIZEN ELECTRONICS was the first COB manufacturer. Our long-term advanced knowledge and packaging techniques have enabled us to provide products with excellent reliability and high quality. We succeeded in developing the high-power blue light COB, with in excess of 400W power, by adopting our specific heat-release technique.
The blue-colored COB is intended for applications such as lighting for swimming pools, landscapes and security. This is also a product with as long a service life as conventional products. The outer dimensions and LES sizes are the same as those of the conventional products. The optical characteristics values were obtained at Tc=25C.
Features
・Mechanical Dimensions : 38.0 × 38.0 × 1.4 (mm)
・Package Structure : Aluminum Base Chip on Board
・Reference Assembly : M3 screw
・ Color : Blue
・ Wave length Dominant : Typ. 455 (nm)
・ Thermal Resistance : 0.070C/W
・Maximum drive current : 3900 mA ( mA Max per channel )
・RoHS compliant
・Better die arrangement for optics
・Wide range of luminous flux and high efficacy
・Improved lumen density compared with previous version
・UL recognized component (E358566)
2-1. Electro Optical Characteristics
| Product code | Color | Radiant Flux
( W ) |
Wave Length
Dominant (nm) |
Forward
Current ( mA ) |
Forward Voltage
( V ) |
Thermal
Resistance Rj-c ( C / W ) |
||||||
| Min. | Max | Min. | Max. | Min. | Typ. | Max. | ||||||
| CLU551-3626C4-B455-XX-B24 | Blue | 105 | 159 | 445 | 465 | 2,340 | 98.5 | 107.1 | 115.7 | 0.070 | ||
2-2. Absolute Maximum Ratings
| Parameter | Symbol | Rating | ||
| Channel 1 | Channel 2 | Package | ||
| Input Power (W) | Pi | 237.25 | 237.25 | 474.5 |
| Forward Current (mA) | If | 1950 | 1950 | 3900 |
| Reverse Current (mA) | Ir | 1 | 1 | 1 |
| Operating Temperature (C) | Top | -40 ~ +100 | ||
| Storage Temperature (C) | Tst | -40 ~ +100 | ||
| Case Temperature (C) | Tc | 105 | ||
| Junction Temperature (C) | Tj | 140 | ||
