Description

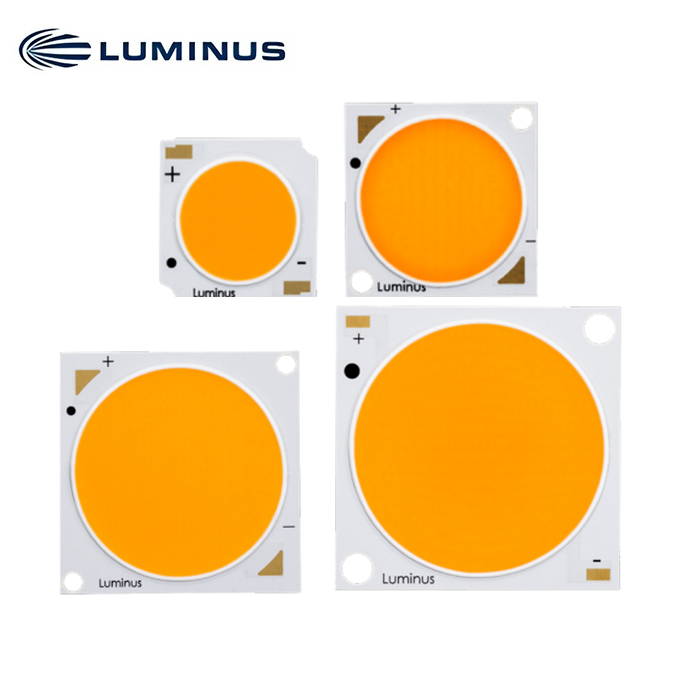

CVM Studio COB Arrays LED Entertainment Lighting
Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications The selection covers a wide lumen range from less than 400lm to over 10,000lm, all major color temperatures and can deliver color rendering greater than 97 at 2700K and 3000K and R9 equal to 95 These breakthroughs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality.
Features
• High lumen output
• Over 25,000 lm @ 3150K, 25ºC
• Over 27,000 lm @ 5600K, 25ºC
• 3150K and 5600K CCT
• 95 CRI minimum
• 90 TLCI minimum
• 2 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL certified, file # E465703
Applications
• TV Studio
• Film Production
• Still Photography
• Stage/Set Lights
• Architectural/Hospitality
CVM Part Numbers
The following tables describe products with typical flux and minimum flux measured atthe maximum rated current and specified at junction temperature, Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | LES
(mm) |
Test
Currant (A) |
Output Flux (lm) | Reference | 2-step MacAdam Ellipse | 3-step MacAdam Ellipse | |
| Typ.
(85ºC) |
Min.
(85ºC) |
Typ.
(calculated) (25ºC) |
|||||
| 3150K | 13.5 | 1.0 | 2,575 | 2,395 | 3,085 | CVM-14-31-95-36-FC00-F2-2 | CVM-14-31-95-36-AC00-F2-3 |
| 17.5 | 1.8 | 5,140 | 4,880 | 5,655 | CVM-18-31-95-36-FA00-F2-2 | CVM-18-31-95-36-AA00-F2-3 | |
| 26.5 | 4.2 | 11,500 | 10,750 | 13,800 | CVM-27-31-95-36-FA00-F2-2 | CVM-27-31-95-36-AA00-F2-3 | |
| 26.5 | 4.2 | 11,500 | 10,750 | 13,800 | CVM-27-31-95-36-FB00-F2-2 | CVM-27-31-95-36-AB00-F2-3 | |
| 32 | 5.0 | 22,800 | 21,250 | 25,150 | CVM-32-31-95-54-FC00-F2-2 | CVM-32-31-95-54-AC00-F2-3 | |
| 5600K | 13.5 | 1.0 | 2,800 | 2,600 | 3,350 | CVM-14-56-95-36-FC00-F2-2 | CVM-14-56-95-36-AC00-F2-3 |
| 17.5 | 1.8 | 5,625 | 5,345 | 6,190 | CVM-18-56-95-36-FA00-F2-2 | CVM-18-56-95-36-AA00-F2-3 | |
| 26.5 | 4.2 | 12,500 | 11,500 | 15,000 | CVM-27-56-95-36-FA00-F2-2 | CVM-27-56-95-36-AA00-F2-3 | |
| 26.5 | 4.2 | 12,500 | 11,500 | 15,000 | CVM-27-56-95-36-FB00-F2-2 | CVM-27-56-95-36-AB00-F2-3 | |
| 32 | 5.0 | 24,800 | 23,110 | 27,350 | CVM-32-56-95-54-FC00-F2-2 | CVM-32-56-95-54-AC00-F2-3 | |
CVM Operating Characteristics1
CVM-14
| Parameter | Symbol | Typical | Maximum | Unit |
| Forward Current2 | If | 1 | 1 | A |
| Forward Voltage | Vf | 36 | 40 | V |
| Power | 36 | 40 | W | |
| Operating Case Temperature3 | T c | 100 | ºC | |
| Light Emitting Surface Diameter | LES | 13.5 | mm | |
| Thermal Resisitance (junction-to-case) | Θjc | 0.46 | ºC/W | |
| Viewing Angle | 120 | Degree |
CVM Operating Characteristics
CVM-18
| Parameter | Symbol | Typical | Maximum | Unit |
| Forward Current2 | If | 1.8 | 1.8 | A |
| Forward Voltage | Vf | 36 | 40 | V |
| Power | 65 | 72 | W | |
| Operating Case Temperature3 | Tc | 100 | ºC | |
| Light Emitting Surface Diameter | LES | 17.5 | mm | |
| Thermal Resisitance (junction-to-case) | Θjc | 0.30 | ºC/W | |
| Viewing Angle | 120 | Degree |
CVM-27
| Parameter | Symbol | Typical | Maximum | Unit |
| Forward Current2 | If | 4.2 | 4.2 | A |
| Forward Voltage | Vf | 36 | 40 | V |
| Power | 150 | 168 | W | |
| Operating Case Temperature3 | Tc | 100 | ºC | |
| Light Emitting Surface Diameter | LES | 26.5 | mm | |
| Thermal Resisitance (junction-to-case) | Θjc | 0.16 | ºC/W | |
| Viewing Angle | 120 | Degree |
CVM-32
| Parameter | Symbol | Typical | Maximum | Unit |
| Forward Current2 | If | 5.0 | 5.0 | A |
| Forward Voltage3 | Vf | 54.5 | 58 | V |
| Power | 272.5 | 290 | W | |
| Operating Case Temperature4 | Tc | 100 | ºC | |
| Light Emitting Surface Diameter | LES | 32 | mm | |
| Thermal Resisitance (junction-to-case) | Θjc | 0. 10 (est.) | ºC/W | |
| Viewing Angle | 120 | Degree |
