Description

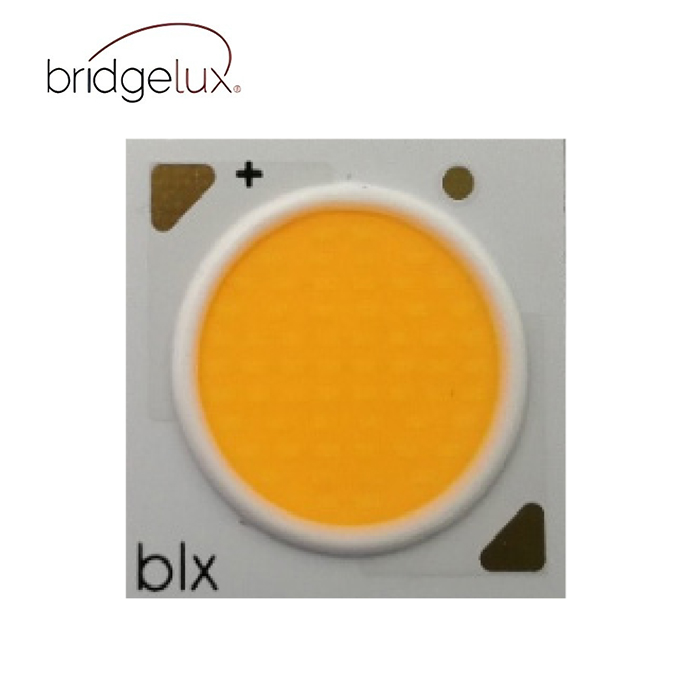

Bridgelux® E Series E13 CA HE LED Array

The Bridgelux E Series E13 LED array products deliver high quality light in a compact and high cost-effective solid-state lighting package. These chip on-board (COB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility not previously possible. The E Series E13 CA HE is designed to support a wide range of luminaries and replacement lamps for both indoor and outdoor general lighting applications with highly comepetitive cost and good performance.

E Series E13 CA HE is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility and energy efficiencies.

Typical applications include, replacement lamps, and task, accent, spot, track, wide area, security, wall pack and down lights.

Features
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant

Benefits
• Easy for second optics design
• Clean white light without pixilation
• Significantly reduced thermal resistance
• Easy for LED driver selection
• Easy to use with daylight and motion detectors toenable increased energy savings
• Reduced maintenance costs
• Environmentally friendly



Table 1: Selection Guide, Measurement Data (Tc=25°C)



Table 2: Selection Guide, Measurement Data (Tc=85°C)



Table 3: Part numbers registered in European Product Registry for Energy Labeling
