E Series E6 CA LED Array

Description

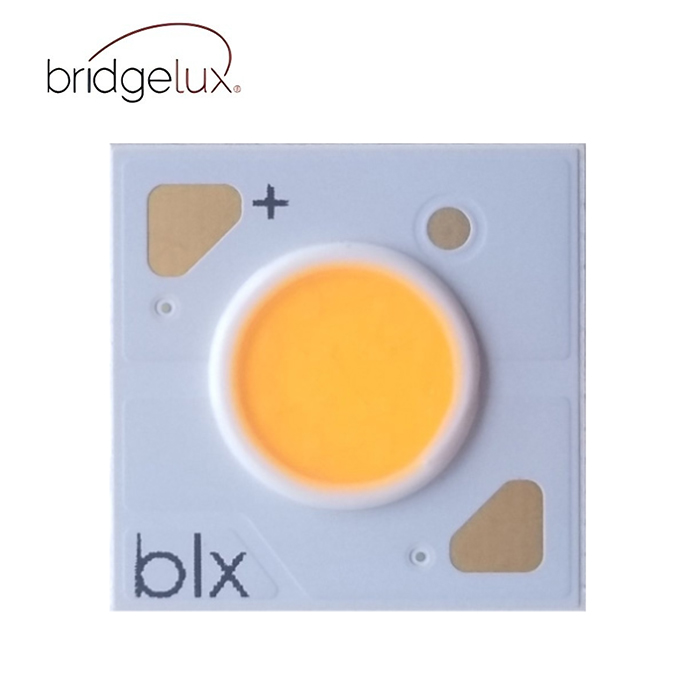

Bridgelux® E Series E6 CA LED Array

The Bridgelux E Series LED array products deliver high quality light in a compact and cost-effective solid-state lighting package. These chip-on-board (COB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility not previously possible. The E Series E6 CA is designed to support a wide range of luminaires and replacement lamps for both indoor and outdoor general lighting applications with highly competitive cost and good performance.

E Series E6 CA is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility and energy efficiencies.

Typical applications include replacement lamps, task, accent, spot, track, wide area, security, wall pack and down lights.

Features
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant

Benefits
• Easy for secondary optics design
• Clean white light without pixilation
• Significantly reduced thermal resistance
• Easy for LED driver selection
• Easy to use with daylight and motion detectors to enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly

Product Family	Product	Doc Number	Typ. Flux (lm)	If (mA)	Vf (V)	Efficacy (lm/W)	Substrate Size (mm)	CRI	CCT (K)
BXKC E	E6A	DS335	530	100	35.5	149	6	80, 90, 95	2700-6500
BXKC E	E6B	DS335	530	200	17.8	149	6	80, 90, 95	2700-6500
BXKC E	E6D	DS335	530	400	8.9	149	6	80, 90, 95	2700-6500

Table 1: Selection Guide, Measurement Data (Tc=25°C)

Part Number	Nominal CCT1 (K)	Typical CRI	Nominal Drive Current (mA)	Typical Pulsed Flux2,3,4 Tc = 25ºC (lm)	Minimum Pulsed Flux2,4,5 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-27E0801-A-13	2700	82	100	502	437	35.5	3.6	141
BXKC-27G0801-A-13	2700	92	100	412	358	35.5	3.6	116
BXKC-27H0801-A-13	2700	96	100	400	348	35.5	3.6	113
BXKC-30E0801-A-13	3000	82	100	530	461	35.5	3.6	149
BXKC-30G0801-A-13	3000	92	100	432	376	35.5	3.6	122
BXKC-30H0801-A-13	3000	96	100	410	357	35.5	3.6	115
BXKC-35E0801-A-13	3500	82	100	542	472	35.5	3.6	153
BXKC-35G0801-A-13	3500	92	100	443	385	35.5	3.6	125
BXKC-35H0801-A-13	3500	96	100	435	378	35.5	3.6	123
BXKC-40E0801-A-13	4000	82	100	547	476	35.5	3.6	154
BXKC-40G0801-A-13	4000	92	100	459	399	35.5	3.6	129
BXKC-40H0801-A-13	4000	96	100	445	387	35.5	3.6	125
BXKC-50E0801-A-14	5000	81.5	100	563	490	35.5	3.6	159
BXKC-50G0801-A-14	5000	91	100	470	409	35.5	3.6	132
BXKC-56E0801-A-14	5600	81.5	100	563	490	35.5	3.6	159
BXKC-65E0801-A-14	6500	81.5	100	563	490	35.5	3.6	159
BXKC-27E0801-B-13	2700	82	200	502	437	17.8	3.6	141
BXKC-27G0801-B-13	2700	92	200	412	358	17.8	3.6	116
BXKC-27H0801-B-13	2700	96	200	400	348	17.8	3.6	112
BXKC-30E0801-B-13	3000	82	200	530	461	17.8	3.6	149
BXKC-30G0801-B-13	3000	92	200	432	376	17.8	3.6	122
BXKC-30H0801-B-13	3000	96	200	410	357	17.8	3.6	115
BXKC-35E0801-B-13	3500	82	200	542	472	17.8	3.6	153
BXKC-35G0801-B-13	3500	92	200	443	385	17.8	3.6	125
BXKC-35H0801-B-13	3500	96	200	435	378	17.8	3.6	122
BXKC-40E0801-B-13	4000	82	200	547	476	17.8	3.6	154
BXKC-40G0801-B-13	4000	92	200	459	399	17.8	3.6	129
BXKC-40H0801-B-13	4000	96	200	445	387	17.8	3.6	125
BXKC-50E0801-B-14	5000	81.5	200	563	490	17.8	3.6	159
BXKC-50G0801-B-14	5000	91	200	470	409	17.8	3.6	132
BXKC-56E0801-B-14	5600	81.5	200	563	490	17.8	3.6	159

Table 2: Selection Guide, Measurement Data (Tc=85°C)

Part Number	Nominal CCT1 (K)	Minumum CRI	Typical CRI	Nominal Drive Current (mA)	Typical DC Flux2,3 Tc = 85ºC (lm)	Minimum DC Flux4 Tc = 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-27E0801-A-13	2700	80	82	100	445	387	34.9	3.5	128
BXKC-27G0801-A-13	2700	90	92	100	365	318	34.9	3.5	105
BXKC-27H0801-A-13	2700	95	96	100	355	309	34.9	3.5	102
BXKC-30E0801-A-13	3000	80	82	100	470	409	34.9	3.5	135
BXKC-30G0801-A-13	3000	90	92	100	383	333	34.9	3.5	110
BXKC-30H0801-A-13	3000	95	96	100	363	316	34.9	3.5	104
BXKC-35E0801-A-13	3500	80	82	100	481	418	34.9	3.5	138
BXKC-35G0801-A-13	3500	90	92	100	393	342	34.9	3.5	113
BXKC-35H0801-A-13	3500	95	96	100	386	336	34.9	3.5	111
BXKC-40E0801-A-13	4000	80	82	100	485	422	34.9	3.5	139
BXKC-40G0801-A-13	4000	90	92	100	407	354	34.9	3.5	117
BXKC-40H0801-A-13	4000	95	96	100	395	343	34.9	3.5	113
BXKC-50E0801-A-14	5000	80	81.5	100	499	434	34.9	3.5	143
BXKC-50G0801-A-14	5000	90	91	100	417	363	34.9	3.5	120
BXKC-56E0801-A-14	5600	80	81.5	100	499	434	34.9	3.5	143
BXKC-65E0801-A-14	6500	80	81.5	100	499	434	34.9	3.5	143
BXKC-27E0801-B-13	2700	80	82	200	445	387	17.4	3.5	128
BXKC-27G0801-B-13	2700	90	92	200	365	318	17.4	3.5	105
BXKC-27H0801-B-13	2700	95	96	200	355	309	17.5	3.5	101
BXKC-30E0801-B-13	3000	80	82	200	470	409	17.4	3.5	135
BXKC-30G0801-B-13	3000	90	92	200	383	333	17.4	3.5	110
BXKC-30H0801-B-13	3000	95	96	200	363	316	17.5	3.5	104
BXKC-35E0801-B-13	3500	80	82	200	481	418	17.4	3.5	138
BXKC-35G0801-B-13	3500	90	92	200	393	342	17.4	3.5	113
BXKC-35H0801-B-13	3500	95	96	200	386	336	17.5	3.5	110
BXKC-40E0801-B-13	4000	80	82	200	485	422	17.4	3.5	139
BXKC-40G0801-B-13	4000	90	92	200	407	354	17.4	3.5	117
BXKC-40H0801-B-13	4000	95	96	200	395	343	17.5	3.5	113
BXKC-50E0801-B-14	5000	80	81.5	200	499	434	17.4	3.5	143
BXKC-50G0801-B-14	5000	90	91	200	417	363	17.4	3.5	120
BXKC-56E0801-B-14	5600	80	81.5	200	499	434	17.4	3.5	143

Part Number	Nominal CCT1 (K)	Minumum CRI	Typical CRI	Nominal Drive Current (mA)	Typical DC Flux2,3 Tc = 85ºC (lm)	Minimum DC Flux4 Tc = 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-65E0801-B-14	6500	80	81.5	200	499	434	17.4	3.5	143
BXKC-27E0801-D-13	2700	80	82	400	445	387	8.7	3.5	128
BXKC-27G0801-D-13	2700	90	92	400	365	318	8.7	3.5	105
BXKC-30E0801-D-13	3000	80	82	400	470	409	8.7	3.5	135
BXKC-30G0801-D-13	3000	90	92	400	383	333	8.7	3.5	110
BXKC-35E0801-D-13	3500	80	82	400	481	418	8.7	3.5	138
BXKC-35G0801-D-13	3500	90	92	400	393	342	8.7	3.5	113
BXKC-40E0801-D-13	4000	80	82	400	485	422	8.7	3.5	139
BXKC-40G0801-D-13	4000	90	92	400	407	354	8.7	3.5	117
BXKC-50E0801-D-14	5000	80	81.5	400	499	434	8.7	3.5	143
BXKC-50G0801-D-14	5000	90	91	400	417	363	8.7	3.5	120
BXKC-56E0801-D-14	5600	80	81.5	400	499	434	8.7	3.5	143
BXKC-65E0801-D-14	6500	80	81.5	400	499	434	8.7	3.5	143

Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXKC-27E0801-A-13	2700	80	210	39.1	825	8.2	100	F	1116559
BXKC-27E0801-B-13	2700	80	430	19.7	839	8.5	99	F	1116565
BXKC-27G0801-A-13	2700	90	150	36.8	522	5.5	94	F	1116614
BXKC-27G0801-B-13	2700	90	330	18.8	563	6.2	91	G	1116620
BXKC-27H0801-A-13	2700	95	140	36.4	479	5.1	94	F	1116667
BXKC-30E0801-A-13	3000	80	230	39.9	931	9.2	101	F	1116687
BXKC-30E0801-B-13	3000	80	460	20.0	931	9.2	101	F	1116693
BXKC-30G0801-A-13	3000	90	170	37.6	604	6.4	95	F	1116742
BXKC-30G0801-B-13	3000	90	350	19.0	618	6.6	93	F	1116748
BXKC-30H0801-A-13	3000	95	150	36.8	519	5.5	94	F	1116795
BXKC-35E0801-A-13	3500	80	230	39.9	952	9.2	104	F	1116815
BXKC-35E0801-B-13	3500	80	470	20.1	967	9.5	102	F	1116821
BXKC-35G0801-A-13	3500	90	180	38.0	648	6.8	95	F	1116870
BXKC-35G0801-B-13	3500	90	360	19.0	648	6.9	94	F	1116876
BXKC-35H0801-A-13	3500	95	170	37.6	609	6.4	95	F	1116923
BXKC-40E0801-A-13	4000	80	240	40.3	991	9.7	102	F	1116943
BXKC-40E0801-B-13	4000	80	480	20.2	991	9.7	102	F	1116949
BXKC-40G0801-A-13	4000	90	190	38.4	699	7.3	96	F	1116998

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXKC-40G0801-B-13	4000	90	380	19.2	699	7.3	96	F	1117004
BXKC-40H0801-A-13	4000	95	180	38.0	651	6.8	95	F	1117051
BXKC-50E0801-A-14	5000	80	240	40.3	1020	9.7	105	F	1117067
BXKC-50E0801-B-14	5000	80	480	20.2	1020	9.7	105	F	1117069
BXKC-50G0801-A-14	5000	90	190	38.4	716	7.3	98	F	1117088
BXKC-50G0801-B-14	5000	90	390	19.3	730	7.5	97	F	1117090
BXKC-56E0801-A-14	5600	80	240	40.3	1020	9.7	105	F	1118876
BXKC-56E0801-B-14	5600	80	480	20.2	1020	9.7	105	F	1118878
BXKC-65E0801-A-14	6500	80	240	40.3	1020	9.7	105	F	1117110
BXKC-65E0801-B-14	6500	80	480	20.2	1020	9.7	105	F	1117112
BXKC-27E0801-D-13	2700	80	860	9.9	839	8.5	99	F	1116571
BXKC-27G0801-D-13	2700	90	660	9.4	563	6.2	91	G	1116626
BXKC-30E0801-D-13	3000	80	920	10.0	931	9.2	101	F	1116699
BXKC-30G0801-D-13	3000	90	700	9.5	618	6.6	93	F	1116754
BXKC-35E0801-D-13	3500	80	950	10.1	974	9.6	102	F	1116827
BXKC-35G0801-D-13	3500	90	720	9.5	648	6.9	94	F	1116882
BXKC-40E0801-D-13	4000	80	960	10.1	991	9.7	102	F	1116955
BXKC-40G0801-D-13	4000	90	760	9.6	699	7.3	96	F	1117010
BXKC-50E0801-D-14	5000	80	960	10.1	1020	9.7	105	F	1117071
BXKC-50G0801-D-14	5000	90	780	9.7	730	7.5	97	F	1117092
BXKC-56E0801-D-14	5600	80	960	10.1	1020	9.7	105	F	1118880
BXKC-65E0801-D-14	6500	80	960	10.1	1020	9.7	105	F	1117114
