E Series E8 CA HE LED Array

Description

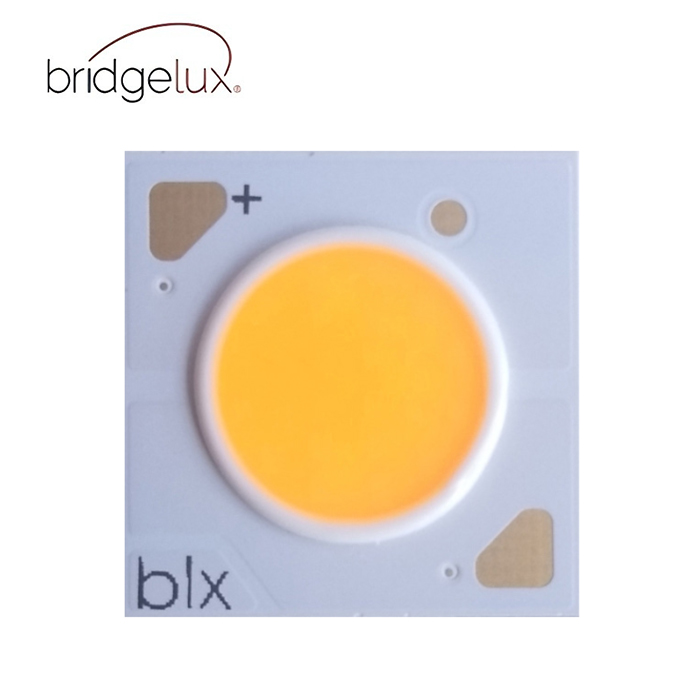

Bridgelux® E Series E8 CA HE LED Array

The Bridgelux E Series LED array products deliver high quality light in a compact and high cost-effective solid-state lighting package. These chip-on board (COB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility not previously possible. The E Series E8 CA HE is designed to support a wide range of luminaries and replacement lamps for both indoor and outdoor general lighting applications with highly comepetitive cost and good performance.

E Series E8 CA HE is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility and energy efficiencies.

Typical applications include, replacement lamps, and task, accent, spot, track, wide area, security, wall pack and down lights.

Features
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant

Benefits
• Easy for second optics design
• Clean white light without pixilation
• Significantly reduced thermal resistance
• Easy for LED driver selection
• Easy to use with daylight and motion detectors to enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly

Product Family	Product	Doc Number	Typ. Flux (lm)	If (mA)	Vf (V)	Efficacy (lm/W)	Substrate Size (mm)	CRI	CCT (K)
BXKC HE	E8B HE	DS338	1077	200	35.5	152	8.9	80, 90, 95	2700-6500
BXKC HE	E8D HE	DS338	1077	400	17.8	152	8.9	80, 90, 95	2700-6500
BXKC HE	E8C HE	DS338	1794	350	36	142	8.9	80, 90, 95	2700-6500

Table 1: Selection Guide, Measurement Data (Tc=25°C)

Part Number	Nominal CCT1 (K)	Typical CRI	Nominal Drive Current (mA)	Typical Pulsed Flux2,3,4 Tc = 25ºC (lm)	Minimum Pulsed Flux2,4,5 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-27E1500-B-23	2700	82	200	1079	939	35.0	7.0	154
BXKC-27G1500-B-23	2700	92	200	888	773	35.0	7.0	127
BXKC-30E1500-B-23	3000	82	200	1140	992	35.0	7.0	163
BXKC-30G1500-B-23	3000	92	200	932	811	35.0	7.0	133
BXKC-35E1500-B-23	3500	82	200	1162	1011	35.0	7.0	166
BXKC-35G1500-B-23	3500	92	200	956	832	35.0	7.0	137
BXKC-40E1500-B-23	4000	82	200	1173	1020	35.0	7.0	168
BXKC-40G1500-B-23	4000	92	200	989	860	35.0	7.0	141
BXKC-50E1501-B-24	5000	81.5	200	1209	1052	35.0	7.0	173
BXKC-50G1501-B-24	5000	91	200	1013	882	35.0	7.0	145
BXKC-56E1501-B-24	5600	81.5	200	1209	1052	35.0	7.0	173
BXKC-65E1501-B-24	6500	81.5	200	1209	1052	35.0	7.0	173
BXKC-27E1500-D-23	2700	82	400	1079	939	17.5	7.0	154
BXKC-27G1500-D-23	2700	92	400	888	773	17.5	7.0	127
BXKC-30E1500-D-23	3000	82	400	1140	992	17.5	7.0	163
BXKC-30G1500-D-23	3000	92	400	932	811	17.5	7.0	133
BXKC-35E1500-D-23	3500	82	400	1162	1011	17.5	7.0	166
BXKC-35G1500-D-23	3500	92	400	956	832	17.5	7.0	137
BXKC-40E1500-D-23	4000	82	400	1173	1020	17.5	7.0	168
BXKC-40G1500-D-23	4000	92	400	989	860	17.5	7.0	141
BXKC-50E1501-D-24	5000	81.5	400	1209	1052	17.5	7.0	173
BXKC-50G1501-D-24	5000	91	400	1013	882	17.5	7.0	145
BXKC-56E1501-D-24	5600	81.5	400	1209	1052	17.5	7.0	173
BXKC-65E1501-D-24	6500	81.5	400	1209	1052	17.5	7.0	173
BXKC-27E2000-C-23	2700	82	350	1825	1588	35.3	12.4	148
BXKC-27G2000-C-23	2700	92	350	1506	1310	35.3	12.4	122
BXKC-30E2000-C-23	3000	82	350	1921	1671	35.3	12.4	156
BXKC-30G2000-C-23	3000	92	350	1585	1379	35.3	12.4	128
BXKC-35E2000-C-23	3500	82	350	1988	1730	35.3	12.4	161
BXKC-35G2000-C-23	3500	92	350	1640	1427	35.3	12.4	133
BXKC-40E2000-C-23	4000	82	350	2036	1772	35.3	12.4	165
BXKC-40G2000-C-23	4000	92	350	1680	1462	35.3	12.4	136
BXKC-50E2001-C-24	5000	81.5	350	2056	1788	35.3	12.4	166
BXKC-50G2001-C-24	5000	91	350	1696	1475	35.3	12.4	137
BXKC-56E2001-C-24	5600	81.5	350	2050	1783	35.3	12.4	166
BXKC-65E2001-C-24	6500	81.5	350	2050	1783	35.3	12.4	166

Table 2: Selection Guide, Measurement Data (Tc=85°C)

Part Number	Nominal CCT1 (K)	Typical CRI	Nominal Drive Current (mA)	Typical DC Flux2,3 Tc = 85ºC (lm)	Minimum DC Flux4 Tc = 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-27E1500-B-23	2700	82	200	982	854	34.3	6.9	143
BXKC-27G1500-B-23	2700	92	200	809	704	34.3	6.9	118
BXKC-30E1500-B-23	3000	82	200	1038	903	34.3	6.9	151
BXKC-30G1500-B-23	3000	92	200	848	738	34.3	6.9	124
BXKC-35E1500-B-23	3500	82	200	1058	921	34.3	6.9	154
BXKC-35G1500-B-23	3500	92	200	870	757	34.3	6.9	127
BXKC-40E1500-B-23	4000	82	200	1068	929	34.3	6.9	156
BXKC-40G1500-B-23	4000	92	200	900	783	34.3	6.9	131
BXKC-50E1501-B-24	5000	81.5	200	1101	958	34.3	6.9	161
BXKC-50G1501-B-24	5000	91	200	922	803	34.3	6.9	135
BXKC-56E1501-B-24	5600	81.5	200	1101	958	34.3	6.9	161
BXKC-65E1501-B-24	6500	81.5	200	1101	958	34.3	6.9	161
BXKC-27E1500-D-23	2700	82	400	982	854	17.1	6.9	143
BXKC-27G1500-D-23	2700	92	400	809	704	17.1	6.9	118
BXKC-30E1500-D-23	3000	82	400	1038	903	17.1	6.9	151
BXKC-30G1500-D-23	3000	92	400	848	738	17.1	6.9	124
BXKC-35E1500-D-23	3500	82	400	1058	921	17.1	6.9	154
BXKC-35G1500-D-23	3500	92	400	870	757	17.1	6.9	127
BXKC-40E1500-D-23	4000	82	400	1068	929	17.1	6.9	156
BXKC-40G1500-D-23	4000	92	400	900	783	17.1	6.9	131
BXKC-50E1501-D-24	5000	81.5	400	1101	958	17.1	6.9	161
BXKC-50G1501-D-24	5000	91	400	922	803	17.1	6.9	135
BXKC-56E1501-D-24	5600	81.5	400	1101	958	17.1	6.9	161
BXKC-65E1501-D-24	6500	81.5	400	1101	958	17.1	6.9	161
BXKC-27E2000-C-23	2700	82	350	1643	1429	34.5	12.1	136
BXKC-27G2000-C-23	2700	92	350	1355	1179	34.5	12.1	112
BXKC-30E2000-C-23	3000	82	350	1729	1504	34.5	12.1	143
BXKC-30G2000-C-23	3000	92	350	1427	1241	34.5	12.1	118
BXKC-35E2000-C-23	3500	82	350	1790	1557	34.5	12.1	148
BXKC-35G2000-C-23	3500	92	350	1476	1284	34.5	12.1	122
BXKC-40E2000-C-23	4000	82	350	1833	1595	34.5	12.1	152
BXKC-40G2000-C-23	4000	92	350	1512	1316	34.5	12.1	125
BXKC-50E2001-C-24	5000	81.5	350	1850	1610	34.5	12.1	153
BXKC-50G2001-C-24	5000	91	350	1526	1328	34.5	12.1	126
BXKC-56E2001-C-24	5600	81.5	350	1845	1605	34.5	12.1	153
BXKC-65E2001-C-24	6500	81.5	350	1845	1605	34.5	12.1	153

Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXKC-27E1500-B-23	2700	80	480	38.2	2070	18.4	113	F	1116577
BXKC-27G1500-B-23	2700	90	320	36.0	1215	11.5	105	F	1116633
BXKC-30E1500-B-23	3000	80	480	38.2	2187	18.4	119	E	1116705
BXKC-30G1500-B-23	3000	90	360	36.6	1409	13.2	107	F	1116761
BXKC-35E1500-B-23	3500	80	480	38.2	2230	18.4	121	E	1116833
BXKC-35G1500-B-23	3500	90	380	36.8	1513	14.0	108	F	1116889
BXKC-40E1500-B-23	4000	80	480	38.2	2251	18.4	123	E	1116961
BXKC-40G1500-B-23	4000	90	410	37.2	1668	15.3	109	F	1117017
BXKC-50E1501-B-24	5000	80	480	38.2	2320	18.4	126	E	1117076
BXKC-50G1501-B-24	5000	90	440	37.7	1811	16.6	109	F	1117097
BXKC-56E1501-B-24	5600	80	480	38.2	2320	18.4	126	E	1118885
BXKC-65E1501-B-24	6500	80	480	38.2	2320	18.4	126	E	1117119
BXKC-27E1500-D-23	2700	80	960	19.1	2070	18.4	113	F	1116579
BXKC-27G1500-D-23	2700	90	650	18.0	1231	11.7	105	F	1116635
BXKC-30E1500-D-23	3000	80	960	19.1	2187	18.4	119	E	1116707
BXKC-30G1500-D-23	3000	90	730	18.3	1426	13.4	107	F	1116763
BXKC-35E1500-D-23	3500	80	960	19.1	2230	18.4	121	E	1116835
BXKC-35G1500-D-23	3500	90	770	18.5	1530	14.2	108	F	1116891

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXKC-40E1500-D-23	4000	80	960	19.1	2251	18.4	123	E	1116963
BXKC-40G1500-D-23	4000	90	830	18.7	1684	15.5	109	F	1117019
BXKC-50E1501-D-24	5000	80	960	19.1	2320	18.4	126	E	1117078
BXKC-50G1501-D-24	5000	90	880	18.8	1811	16.6	109	F	1117099
BXKC-56E1501-D-24	5600	80	960	19.1	2320	18.4	126	E	1118887
BXKC-65E1501-D-24	6500	80	960	19.1	2320	18.4	126	E	1117121
BXKC-27E2000-C-23	2700	80	680	37.6	2901	25.6	113	F	1116596
BXKC-27G2000-C-23	2700	90	410	35.2	1559	14.4	108	F	1116652
BXKC-30E2000-C-23	3000	80	720	38.0	3198	27.4	117	F	1116724
BXKC-30G2000-C-23	3000	90	470	35.7	1848	16.8	110	F	1116780
BXKC-35E2000-C-23	3500	80	720	38.0	3310	27.4	121	E	1116852
BXKC-35G2000-C-23	3500	90	520	36.2	2084	18.8	111	F	1116908
BXKC-40E2000-C-23	4000	80	720	38.0	3390	27.4	124	E	1116980
BXKC-40G2000-C-23	4000	90	550	36.4	2239	20.0	112	F	1117036
BXKC-50E2001-C-24	5000	80	720	38.0	3423	27.4	125	E	1117080
BXKC-56E2001-C-24	5600	80	720	38.0	3413	27.4	125	E	1118889
BXKC-65E2001-C-24	6500	80	720	38.0	3413	27.4	125	E	1117123
