Bridgelux® E15 LED Array

Categories: ,

Description

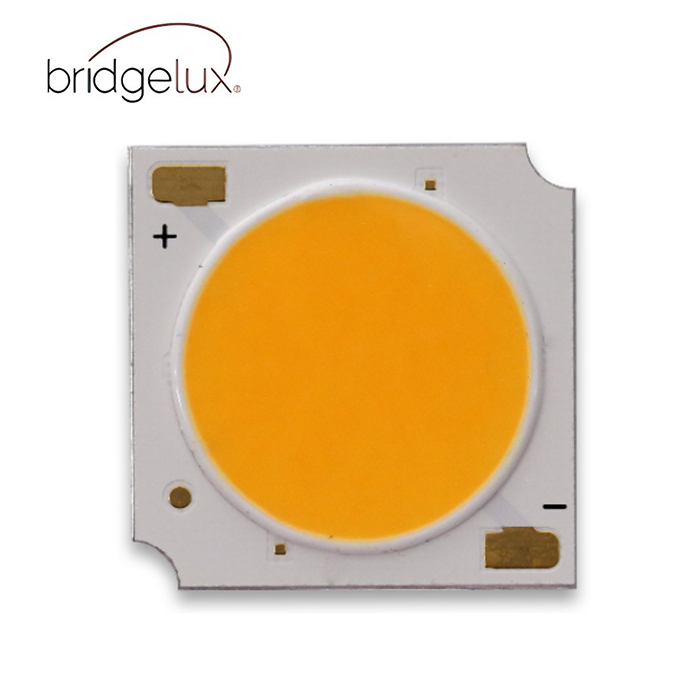

Bridgelux® E15 LED Array

The E Series LED array products deliver high quality of light in a compact and cost-effective solid-state lighting package. These chip-on-board (COB) arrays are available in multiple performance and electical configuration options, simplifying the design-in process. These high flux density light sources are designed to support a wide range of highly competitive directional luminaires and replacement lamps for commercial and residential applications.

Lighting system designs incorporating these LED arrays deliver increased system level efficacy. Typical applications include, but are not limited to, replacement lamps, task, accent, spot, track, downlight, wide area, security, and wall pack.

Features
• Wide range of performance from 2700 to 6750 lm with CCT options from 2700K – 6500K
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 3 and 5 SDCM options
• Higher energy efficiency than incandescent, halogen and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant

Benefits
• Supports many general lighting applications
• Enables tight beam control when used with secondary optics
• Clean white light without pixilation
• Low thermal resistance
• Uniform, consistent white light
• Lower operating costs
• Aligns with industry standard drivers to reduce system costs
• Easy to use with daylight and motion detectors to enable increased energy savings
• Environmentally friendly

product-817-616

Product Family Product Doc Number Gen Typ. Flux (lm) If (mA) Vf (V) Efficacy (lm/W) Substrate Size (mm) CRI CCT (K)
BXKE E E15D DS443 3260 720 38.7 117 15 70, 80, 90 2700-6500
BXKE E E15F DS443 4341 960 38 119 15 70, 80, 90 2700-6500



Table 1: Selection Guide, Pulsed Measurement Data (Tj = TC = 25°C)

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tj = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tj = 25ºC

(lm)

 Typical Vf

(V)

 Typical Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-27E3000-D-1X 2700K 80 720 3130 2721 38.7 27.9 112
BXKE-27E4000-F-1X 2700K 80 960 4167 3624 38.0 36.5 114
BXKE-27G3000-D-1X 2700K 90 720 2603 2264 38.7 27.9 93
BXKE-27G4000-F-1X 2700K 90 960 3467 3014 38.0 36.5 95
BXKE-30E3000-D-1X 3000K 80 720 3260 2835 38.7 27.9 117
BXKE-30E4000-F-1X 3000K 80 960 4341 3775 38.0 36.5 119
BXKE-30G3000-D-1X 3000K 90 720 2706 2353 38.7 27.9 97
BXKE-30G4000-F-1X 3000K 90 960 3603 3133 38.0 36.5 99
BXKE-35E3000-D-1X 3500K 80 720 3358 2920 38.7 27.9 121
BXKE-35E4000-F-1X 3500K 80 960 4471 3888 38.0 36.5 123
BXKE-35G3000-D-1X 3500K 90 720 2869 2438 38.7 27.9 102
BXKE-35G4000-F-1X 3500K 90 960 3711 3154 38.0 36.5 102
BXKE-40E3000-D-1X 4000K 80 720 3390 2948 38.7 27.9 122
BXKE-40E4000-F-1X 4000K 80 960 4515 3926 38.0 36.5 124
BXKE-40G3000-D-1X 4000K 90 720 3202 2722 38.7 27.9 119
BXKE-40G4000-F-1X 4000K 90 960 4377 3720 38.0 36.5 120
BXKE-50E3000-D-1X 5000K 80 720 3494 3038 38.7 27.9 125
BXKE-50E4000-F-1X 5000K 80 960 4652 4045 38.0 36.5 128
BXKE-50G3000-D-1X 5000K 90 720 3133 2663 38.7 27.9 112
BXKE-50G4000-F-1X 5000K 90 960 4283 3640 38.0 36.5 117
BXKE-56E3000-D-1X 5600K 80 720 3619 3147 38.7 27.9 130
BXKE-56E4000-F-1X 5600K 80 960 4819 4190 38.0 36.5 132
BXKE-65E3000-D-1X 6500K 80 720 3675 3195 38.7 27.9 132
BXKE-65E4000-F-1X 6500K 80 960 4893 4573 38.0 36.5 134



Table 2: Selection Guide, Pulsed Measurement Data (Tj = 85°C) 4,5

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

Tj = 85ºC

(lm)

 Minimum DC

Flux6

Tj = 85ºC

(lm)

 Typical Vf

(V)

 Typical Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-27E3000-D-1X 2700 80 720 2754 2395 37.3 26.9 103
BXKE-27E4000-F-1X 2700 80 960 3667 3189 36.8 35.3 104
BXKE-27G3000-D-1X 2700 90 720 2291 1992 37.3 26.9 85
BXKE-27G4000-F-1X 2700 90 960 3051 2653 36.8 35.3 86
BXKE-30E3000-D-1X 3000 80 720 2869 2495 37.3 26.9 107
BXKE-30E4000-F-1X 3000 80 960 3820 3322 36.8 35.3 108
BXKE-30G3000-D-1X 3000 90 720 2381 2071 37.3 26.9 89
BXKE-30G4000-F-1X 3000 90 960 3171 2757 36.8 35.3 90
BXKE-35E3000-D-1X 3500 80 720 2955 2570 37.3 26.9 110
BXKE-35E4000-F-1X 3500 80 960 3935 3422 36.8 35.3 111
BXKE-35G3000-D-1X 3500 90 720 2525 2146 37.3 26.9 93
BXKE-35G4000-F-1X 3500 90 960 3266 2776 36.8 35.3 93
BXKE-40E3000-D-1X 4000 80 720 2984 2594 37.3 26.9 111
BXKE-40E4000-F-1X 4000 80 960 3973 3455 36.8 35.3 112
BXKE-40G3000-D-1X 4000 90 720 2813 2391 37.3 26.9 105
BXKE-40G4000-F-1X 4000 90 960 3845 3268 36.8 35.3 109
BXKE-50E3000-D-1X 5000 80 720 3074 2673 37.3 26.9 114
BXKE-50E4000-F-1X 5000 80 960 4094 3560 36.8 35.3 116
BXKE-50G3000-D-1X 5000 90 720 2753 2340 37.3 26.9 103
BXKE-50G4000-F-1X 5000 90 960 3763 3200 36.8 35.3 107
BXKE-56E3000-D-1X 5600 80 720 3184 2769 37.3 26.9 119
BXKE-56E4000-F-1X 5600 80 960 4240 3687 36.8 35.3 120
BXKE-65E3000-D-1X 6500 80 720 3234 2812 37.3 26.9 120
BXKE-65E4000-F-1X 6500 80 960 4306 4024 36.8 35.3 122



Table 3: Product Performance at Commonly Used Drive Currents

Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tj = 25.C

(V)

 Typical Power

Tj = 25.C

(W)

 Typical

Flux2

Tj = 25.C

(lm)

 Typical

DC Flux3

Tj = 85.C

(lm)

 Typical

Efficacy

Tj = 25.C

(lm/W)
BXKE-27E3000-D-1X 80 480 36.3 17.4 2217 1951 127
600 37.6 22.5 2697 2373 120
720 38.7 27.9 3130 2754 112
840 39.9 33.5 3569 3141 106
960 41.0 39.3 3963 3487 101
BXKE-27E4000-F-1X 80 480 34.6 16.6 2264 1992 136
720 36.4 26.2 3257 2866 124
960 38.0 36.5 4167 3667 114
1200 39.3 47.2 4992 4393 106
1440 40.7 58.9 5749 5059 98
BXKE-27G3000-D-1X 90 480 36.3 17.4 1843 1622 106
600 37.6 22.5 2236 1968 99
720 38.7 27.9 2603 2291 93
840 39.9 33.5 2944 2591 88
960 41.0 39.3 3259 2868 83
BXKE-27G4000-F-1X 90 480 34.6 16.6 1884 1658 113
720 36.4 26.2 2710 2385 103
960 38.0 36.5 3467 3051 95
1200 39.3 47.2 4153 3655 88
1440 40.7 58.9 4783 4209 82
BXKE-30E3000-D-1X 80 480 36.3 17.4 2296 2020 132
600 37.6 22.5 2788 2453 124
720 38.7 27.9 3260 2869 117
840 39.9 33.5 3677 3236 110
960 41.0 39.3 4074 3585 104
BXKE-30E4000-F-1X 80 480 34.6 16.6 2359 2075 142
720 36.4 26.2 3393 2986 129
960 38.0 36.5 4341 3820 119
1200 39.3 47.2 5200 4576 110
1440 40.7 58.9 5989 5270 102
BXKE-30G3000-D-1X 90 480 36.3 17.4 1909 1680 110
600 37.6 22.5 2319 2040 103
720 38.7 27.9 2706 2381 97
840 39.9 33.5 3061 2694 91
960 41.0 39.3 3393 2986 86



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tj = 25.C

(V)

 Typical Power

Tj = 25.C

(W)

 Typical

Flux2

Tj = 25.C

(lm)

 Typical

DC Flux3

Tj = 85.C

(lm)

 Typical

Efficacy

Tj = 25.C

(lm/W)
BXKE-30G4000-F-1x 90 480 34.6 16.6 1958 1723 118
720 36.4 26.2 2816 2478 107
960 38.0 36.5 3603 3171 99
1200 39.3 47.2 4316 3798 92
1440 40.7 58.9 4971 4374 85
BXKE-35E3000-D-1x 80 480 36.3 17.4 2372 2088 136
600 37.6 22.5 2884 2537 128
720 38.7 27.9 3358 2955 121
840 39.9 33.5 3811 3353 114
960 41.0 39.3 4227 3719 108
BXKE-35E4000-F-1x 80 480 34.6 16.6 2429 2138 146
720 36.4 26.2 3495 3075 133
960 38.0 36.5 4471 3935 123
1200 39.3 47.2 5356 4713 114
1440 40.7 58.9 6168 5428 105
BXKE-35G3000-D-1x 90 480 36.3 17.4 2020 1778 116
600 37.6 22.5 2453 2159 109
720 38.7 27.9 2869 2525 103
840 39.9 33.5 3236 2848 97
960 41.0 39.3 3585 3155 91
BXKE-35G4000-F-1x 90 480 34.6 16.6 2016 1775 121
720 36.4 26.2 2901 2552 111
960 38.0 36.5 3711 3266 102
1200 39.3 47.2 4445 3912 94
1440 40.7 58.9 5120 4505 87
BXKE-40E3000-D-1x 80 480 36.3 17.4 2398 2110 138
600 37.6 22.5 2915 2565 129
720 38.7 27.9 3390 2984 122
840 39.9 33.5 3855 3392 115
960 41.0 39.3 4277 3764 109
BXKE-40E4000-F-1x 80 480 34.6 16.6 2453 2159 148
720 36.4 26.2 3529 3106 135
960 38.0 36.5 4515 3973 124
1200 39.3 47.2 5409 4760 115
1440 40.7 58.9 6229 5482 106
BXKE-40G3000-D-1x 90 480 36.3 17.4 2281 2004 131
600 37.6 22.5 2755 2421 122
720 38.7 27.9 3202 2813 115
840 39.9 33.5 3643 3200 109
960 41.0 39.3 4045 3554 103
BXKE-40G4000-F-1x 90 480 34.6 16.6 2393 2102 144
720 36.4 26.2 3436 3019 131
960 38.0 36.5 4377 3845 120
1200 39.3 47.2 5266 4627 112
1440 40.7 58.9 6092 5353 103



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tj = 25.C

(V)

 Typical Power

Tj = 25.C

(W)

 Typical

Flux2

Tj = 25.C

(lm)

 Typical

DC Flux3

Tj = 85.C

(lm)

 Typical

Efficacy

Tj = 25.C

(lm/W)
BXKE-50E3000-D-1X 80 480 36.3 17.4 2455 2161 141
600 37.6 22.5 2980 2622 132
720 38.7 27.9 3494 3074 125
840 39.9 33.5 3925 3454 117
960 41.0 39.3 4346 3824 111
BXKE-50E4000-F-1X 80 480 34.6 16.6 2527 2224 152
720 36.4 26.2 3636 3200 139
960 38.0 36.5 4652 4094 128
1200 39.3 47.2 5573 4904 118
1440 40.7 58.9 6418 5648 110
BXKE-50G3000-D-1X 90 480 36.3 17.4 2232 1961 128
600 37.6 22.5 2696 2368 120
720 38.7 27.9 3133 2753 112
840 39.9 33.5 3564 3132 106
960 41.0 39.3 3958 3477 101
BXKE-50G4000-F-1X 90 480 34.6 16.6 2341 2057 141
720 36.4 26.2 3362 2954 128
960 38.0 36.5 4283 3763 117
1200 39.3 47.2 5153 4527 110
1440 40.7 58.9 5961 5237 101
BXKE-56E3000-D-1X 80 480 36.3 17.4 2553 2247 147
600 37.6 22.5 3102 2730 138
720 38.7 27.9 3619 3184 130
840 39.9 33.5 4096 3605 122
960 41.0 39.3 4541 3996 116
BXKE-56E4000-F-1X 80 480 34.6 16.6 2618 2304 158
720 36.4 26.2 3767 3315 144
960 38.0 36.5 4819 4240 132
1200 39.3 47.2 5773 5080 122
1440 40.7 58.9 6648 5850 113
BXKE-65E3000-D-1X 80 480 36.3 17.4 2597 2285 149
600 37.6 22.5 3157 2778 140
720 38.7 27.9 3675 3234 132
840 39.9 33.5 4173 3672 124
960 41.0 39.3 4629 4073 118
BXKE-65E4000-F-1X 80 480 34.6 16.6 2658 2339 160
720 36.4 26.2 3825 3366 146
960 38.0 36.5 4893 4306 134
1200 39.3 47.2 5862 5158 124
1440 40.7 58.9 6751 5941 115



Table 4: Electrical Characteristics

Part Number Drive Current

(mA)

 Forward Voltage

Pulsed, Tj = 25ºC (V) 1, 2, 3, 8

 Typical

Coefficient

of Forward

Voltage4

∆Vf/∆Tj

(mV/ºC)

 Typical

Thermal

Resistance

Junction

to Case5,6

Rj-c (ºC/W)
Minimum Typical Maximum
BXKE-xxx3000-D-1x 720 35 38.7 42.7 -14.4 0.72
BXKE-xxx4000-F-1x 960 34.5 38 42 -15.5 0.54



Table 5: Maximum Ratings

Parameter Maximum Rating
LED Junction Temperature (Tj) 140°C
Storage Temperature -40°C to +105°C
Operating Case Temperature1,2 (Tc) 105°C
Soldering Temperature 350°C ≤3.5sec
BXKE-xxx3000-D-1x BXKE-xxx4000-F-1x
Maximum Drive Current3 960 mA 1440 mA
Maximum Reverse Voltage4 -60 V -60V
