Bridgelux® E6 LED Array

Categories: ,

Description

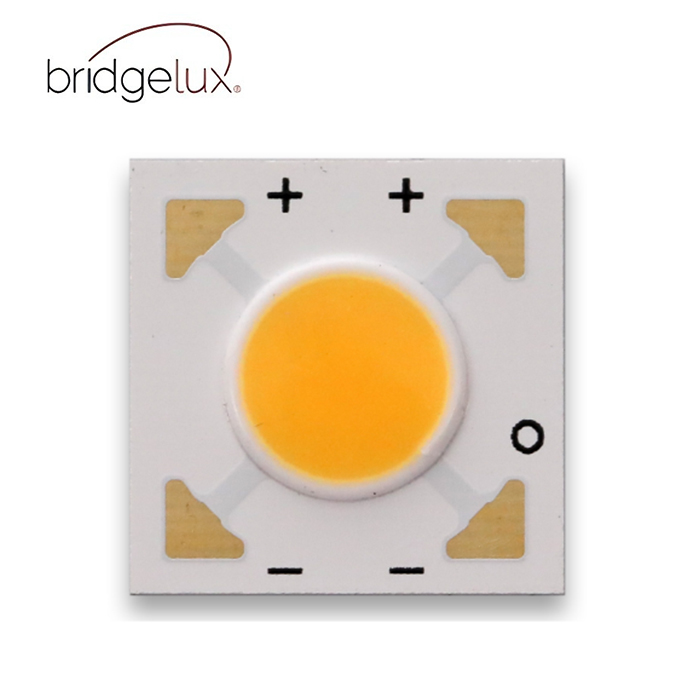

Bridgelux® E6 LED Array

The E Series LED array products deliver high quality of light in a compact and cost-effective solid-state lighting package. These chip-on-board (COB) arrays are available in multiple performance and electical configuration options, simplifying the design-in process. These high flux density light sources are designed to support a wide range of highly competitive directional luminaires and replacement lamps for commercial and residential applications.

Lighting system designs incorporating these LED arrays deliver increased system level efficacy. Typical applications include, but are not limited to, replacement lamps, task, accent, spot, track, downlight, wide area, security, and wall pack.

Features
• Wide range of performance from 370 to 1080 lm with CCT options from 2700K – 6500K
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 3 and 5 SDCM options
• Higher energy efficiency than incandescent, halogen and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant

Benefits
• Supports many general lighting applications
• Enables tight beam control when used with secondary optics
• Clean white light without pixilation
• Low thermal resistance
• Uniform, consistent white light
• Lower operating costs
• Aligns with industry standard drivers to reduce system costs
• Easy to use with daylight and motion detectors to enable increased energy savings
• Environmentally friendly

product-931-724

Product Family Product Doc Number Gen Typ. Flux (lm) If (mA) Vf (V) Efficacy (lm/W) Substrate Size (mm) CRI CCT (K)
BXKE E E6A DS440 461 100 36 106 6 70, 80, 90 2700-6500
BXKE E E6B DS440 461 200 18 106 6 70, 80, 90 2700-6500
BXKE E E6C DS440 461 400 9 106 6 70, 80, 90 2700-6500



Table 1: Selection Guide, Pulsed Measurement Data (Tc =Tj = 25°C)

Part Number Nominal CCT1

(K)

 CRI2 Nominal

Drive

Current3

(mA)

 Typical

Pulsed

Flux4,5,6

Tj = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tj = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-27E0801-A-2x 2700 80 100 443 376 36.0 3.6 123
BXKE-27E0801-B-2x 2700 80 200 443 376 18.0 3.6 123
BXKE-27E0801-D-2x 2700 80 400 443 376 9.0 3.6 123
BXKE-27G0801-A-2x 2700 90 100 368 313 36.0 3.6 102
BXKE-27G0801-B-2x 2700 90 200 368 313 18.0 3.6 102
BXKE-27G0801-D-2x 2700 90 400 368 313 9.0 3.6 102
BXKE-30E0801-A-2x 3000 80 100 461 392 36.0 3.6 128
BXKE-30E0801-B-2x 3000 80 200 461 392 18.0 3.6 128
BXKE-30E0801-D-2x 3000 80 400 461 392 9.0 3.6 128
BXKE-30G0801-A-2x 3000 90 100 383 325 36.0 3.6 106
BXKE-30G0801-B-2x 3000 90 200 383 325 18.0 3.6 106
BXKE-30G0801-D-2x 3000 90 400 383 325 9.0 3.6 106
BXKE-35E0801-A-2x 3500 80 100 475 404 36.0 3.6 132
BXKE-35E0801-B-2x 3500 80 200 475 404 18.0 3.6 132
BXKE-35E0801-D-2x 3500 80 400 475 404 9.0 3.6 132
BXKE-35G0801-A-2x 3500 90 100 397 337 36.0 3.6 110
BXKE-35G0801-B-2x 3500 90 200 397 337 18.0 3.6 110
BXKE-35G0801-D-2x 3500 90 400 397 337 9.0 3.6 110
BXKE-40E0801-A-2x 4000 80 100 477 406 36.0 3.6 133
BXKE-40E0801-B-2x 4000 80 200 477 406 18.0 3.6 133
BXKE-40E0801-D-2x 4000 80 400 477 406 9.0 3.6 133
BXKE-40G0801-A-2x 4000 90 100 412 350 36.0 3.6 115
BXKE-40G0801-B-2x 4000 90 200 412 350 18.0 3.6 115
BXKE-40G0801-D-2x 4000 90 400 412 350 9.0 3.6 115
BXKE-50E0801-A-2x 5000 80 100 494 420 36.0 3.6 137
BXKE-50E0801-B-2x 5000 80 200 494 420 18.0 3.6 137
BXKE-50E0801-D-2x 5000 80 400 494 420 9.0 3.6 137
BXKE-50G0801-A-2x 5000 90 100 421 358 36.0 3.6 117
BXKE-50G0801-B-2x 5000 90 200 421 358 18.0 3.6 117
BXKE-50G0801-D-2x 5000 90 400 421 358 9.0 3.6 117
BXKE-56E0801-A-2x 5600 80 100 512 435 36.0 3.6 142
BXKE-56E0801-B-2x 5600 80 200 512 435 18.0 3.6 142
BXKE-56E0801-D-2x 5600 80 400 512 435 9.0 3.6 142
BXKE-65E0801-A-2x 6500 80 100 520 442 36.0 3.6 145
BXKE-65E0801-B-2x 6500 80 200 520 442 18.0 3.6 145
BXKE-65E0801-D-2x 6500 80 400 520 442 9.0 3.6 145



Table 2: Selection Guide, Pulsed Measurement Data (Tj = 85°C) 4,5

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Plused

Flux4,5

Tj = 85ºC

(lm)

 Minimum Pulsed

Flux6

Tj = 85ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-27E0801-A-2x 2700 80 100 390 331 34.7 3.5 111
BXKE-27E0801-B-2x 2700 80 200 390 331 17.4 3.5 111
BXKE-27E0801-D-2x 2700 80 400 390 331 8.7 3.5 111
BXKE-27G0801-A-2x 2700 90 100 324 275 34.7 3.5 93
BXKE-27G0801-B-2x 2700 90 200 324 275 17.4 3.5 93
BXKE-27G0801-D-2x 2700 90 400 324 275 8.7 3.5 93
BXKE-30E0801-A-2x 3000 80 100 406 345 34.7 3.5 116
BXKE-30E0801-B-2x 3000 80 200 406 345 17.4 3.5 116
BXKE-30E0801-D-2x 3000 80 400 406 345 8.7 3.5 116
BXKE-30G0801-A-2x 3000 90 100 337 286 34.7 3.5 96
BXKE-30G0801-B-2x 3000 90 200 337 286 17.4 3.5 96
BXKE-30G0801-D-2x 3000 90 400 337 286 8.7 3.5 96
BXKE-35E0801-A-2x 3500 80 100 418 355 34.7 3.5 119
BXKE-35E0801-B-2x 3500 80 200 418 355 17.4 3.5 119
BXKE-35E0801-D-2x 3500 80 400 418 355 8.7 3.5 119
BXKE-35G0801-A-2x 3500 90 100 349 297 34.7 3.5 100
BXKE-35G0801-B-2x 3500 90 200 349 297 17.4 3.5 100
BXKE-35G0801-D-2x 3500 90 400 349 297 8.7 3.5 100
BXKE-40E0801-A-2x 4000 80 100 420 357 34.7 3.5 120
BXKE-40E0801-B-2x 4000 80 200 420 357 17.4 3.5 120
BXKE-40E0801-D-2x 4000 80 400 420 357 8.7 3.5 120
BXKE-40G0801-A-2x 4000 90 100 363 308 34.7 3.5 104
BXKE-40G0801-B-2x 4000 90 200 363 308 17.4 3.5 104
BXKE-40G0801-D-2x 4000 90 400 363 308 8.7 3.5 104
BXKE-50E0801-A-2x 5000 80 100 435 370 34.7 3.5 124
BXKE-50E0801-B-2x 5000 80 200 435 370 17.4 3.5 124
BXKE-50E0801-D-2x 5000 80 400 435 370 8.7 3.5 124
BXKE-50G0801-A-2x 5000 90 100 370 315 34.7 3.5 106
BXKE-50G0801-B-2x 5000 90 200 370 315 17.4 3.5 106
BXKE-50G0801-D-2x 5000 90 400 370 315 8.7 3.5 106



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Plused

Flux4,5

Tj = 85ºC

(lm)

 Minimum Pulsed

Flux6

Tj = 85ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-56E0801-A-2x 5600 80 100 451 383 34.7 3.5 129
BXKE-56E0801-B-2x 5600 80 200 451 383 17.4 3.5 129
BXKE-56E0801-D-2x 5600 80 400 451 383 8.7 3.5 129
BXKE-65E0801-A-2x 6500 80 100 457 389 34.7 3.5 131
BXKE-65E0801-B-2x 6500 80 200 457 389 17.4 3.5 131
BXKE-65E0801-D-2x 6500 80 400 457 389 8.7 3.5 131



Table 3: Product Performance at Commonly Used Drive Currents

Part Numbex CRI Drive

Current1

(mA)

 Typical Vf

Tj = 25.C

(V)

 Typical Power

Tj = 25.C

(W)

 Typical

Flux2

Tj = 25.C

(lm)

 Typical

Pulsed Flux3

Tj = 85.C

(lm)

 Typical

Efficacy

Tj = 25.C

(lm/W)
BXKE-27E0801-A-x 80 80 34.7 2.8 368 324 132
90 35.4 3.2 406 357 127
100 36.0 3.6 443 390 123
110 36.6 4.0 480 422 119
240 40.7 9.8 922 811 94
BXKE-27E0801-B-2x 80 160 17.4 2.8 368 324 132
180 17.7 3.2 406 357 127
200 18.0 3.6 443 390 123
220 18.3 4.0 480 422 119
480 20.4 9.8 922 811 94
BXKE-27E0801-D-2x 80 320 8.7 2.8 368 324 132
360 8.8 3.2 406 357 127
400 9.0 3.6 443 390 123
440 9.2 4.0 480 422 119
960 10.2 9.8 922 811 94
BXKE-27G0801-A-2x 90 80 34.7 2.8 306 269 109
90 35.4 3.2 337 297 105
100 36.0 3.6 368 324 102
110 36.6 4.0 399 351 100
240 40.7 9.8 767 675 78
BXKE-27G0801-B-2x 90 160 17.4 2.8 306 269 109
180 17.7 3.2 337 297 105
200 18.0 3.6 368 324 102
220 18.3 4.0 399 351 100
480 20.4 9.8 767 675 78
BXKE-27G0801-D-2x 90 320 8.7 2.8 306 269 109
360 8.8 3.2 337 297 105
400 9.0 3.6 368 324 102
440 9.2 4.0 399 351 100
960 10.2 9.8 767 675 78
BXKE-30E0801-A-2x 80 80 34.7 2.8 383 337 138
90 35.4 3.2 422 372 133
100 36.0 3.6 461 406 128
110 36.6 4.0 500 440 124
240 40.7 9.8 960 845 98



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tj = 25.C

(V)

 Typical Power

Tj = 25.C

(W)

 Typical

Flux2

Tj = 25.C

(lm)

 Typical

Pulsed Flux3

Tj = 85.C

(lm)

 Typical

Efficacy

Tj = 25.C

(lm/W)
BXKE-30E0801-B-2x 80 160 17.4 2.8 383 337 138
180 17.7 3.2 422 372 133
200 18.0 3.6 461 406 128
220 18.3 4.0 500 440 124
480 20.4 9.8 960 845 98
BXKE-30E0801-D-2x 80 320 8.7 2.8 383 337 138
360 8.8 3.2 422 372 133
400 9.0 3.6 461 406 128
440 9.2 4.0 500 440 124
960 10.2 9.8 960 845 98
BXKE-30G0801-A-2x 90 80 34.7 2.8 318 280 114
90 35.4 3.2 350 308 109
100 36.0 3.6 383 337 106
110 36.6 4.0 415 365 104
240 40.7 9.8 797 701 81
BXKE-30G0801-B-2x 90 160 17.4 2.8 318 280 114
180 17.7 3.2 350 308 109
200 18.0 3.6 383 337 106
220 18.3 4.0 415 365 104
480 20.4 9.8 797 701 81
BXKE-30G0801-D-2x 90 320 8.7 2.8 318 280 114
360 8.8 3.2 350 308 109
400 9.0 3.6 383 337 106
440 9.2 4.0 415 365 104
960 10.2 9.8 797 701 81
BXKE-35E0801-A-2x 80 80 34.7 2.8 395 347 142
90 35.4 3.2 435 383 137
100 36.0 3.6 475 418 132
110 36.6 4.0 515 453 128
240 40.7 9.8 989 870 101
BXKE-35E0801-B-2x 80 160 17.4 2.8 395 347 142
180 17.7 3.2 435 383 137
200 18.0 3.6 475 418 132
220 18.3 4.0 515 453 128
480 20.4 9.8 989 870 101
BXKE-35E0801-D-2x 80 320 8.7 2.8 395 347 142
360 8.8 3.2 435 383 137
400 9.0 3.6 475 418 132
440 9.2 4.0 515 453 128
960 10.2 9.8 989 870 101
BXKE-35G0801-A-2x 90 80 34.7 2.8 329 290 119
90 35.4 3.2 363 319 114
100 36.0 3.6 397 349 110
110 36.6 4.0 430 378 107
240 40.7 9.8 826 727 85



Part Numbex CRI Drive

Current1

(mA)

 Typical Vf

Tj = 25.C

(V)

 Typical Power

Tj = 25.C

(W)

 Typical

Flux2

Tj = 25.C

(lm)

 Typical

Pulsed Flux3

Tj = 85.C

(lm)

 Typical

Efficacy

Tj = 25.C

(lm/W)
BXKE-35G0801-B-2x 90 160 17.4 2.8 329 290 119
180 17.7 3.2 363 319 114
200 18.0 3.6 397 349 110
220 18.3 4.0 430 378 107
480 20.4 9.8 826 727 85
BXKE-35G0801-D-2x 90 320 8.7 2.8 329 290 119
360 8.8 3.2 363 319 114
400 9.0 3.6 397 349 110
440 9.2 4.0 430 378 107
960 10.2 9.8 826 727 85
BXKE-40E0801-A-2x 80 80 34.7 2.8 397 349 143
90 35.4 3.2 437 385 137
100 36.0 3.6 477 420 133
110 36.6 4.0 517 455 128
240 40.7 9.8 994 874 102
BXKE-40E0801-B-2x 80 160 17.4 2.8 397 349 143
180 17.7 3.2 437 385 137
200 18.0 3.6 477 420 133
220 18.3 4.0 517 455 128
480 20.4 9.8 994 874 102
BXKE-40E0801-D-2x 80 320 8.7 2.8 397 349 143
360 8.8 3.2 437 385 137
400 9.0 3.6 477 420 133
440 9.2 4.0 517 455 128
960 10.2 9.8 994 874 102
BXKE-40G0801-A-2x 90 80 34.7 2.8 343 301 123
90 35.4 3.2 377 332 119
100 36.0 3.6 412 363 115
110 36.6 4.0 446 393 111
240 40.7 9.8 858 755 88
BXKE-40G0801-B-2x 90 160 17.4 2.8 343 301 123
180 17.7 3.2 377 332 119
200 18.0 3.6 412 363 115
220 18.3 4.0 446 393 111
480 20.4 9.8 858 755 88
BXKE-40G0801-D-2x 90 320 8.7 2.8 343 301 123
360 8.8 3.2 377 332 119
400 9.0 3.6 412 363 115
440 9.2 4.0 446 393 111
960 10.2 9.8 858 755 88
BXKE-50E0801-A-2x 80 80 34.7 2.8 411 361 148
90 35.4 3.2 452 398 142
100 36.0 3.6 494 435 137
110 36.6 4.0 535 471 133
240 40.7 9.8 1028 905 105



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tj = 25.C

(V)

 Typical Power

Tj = 25.C

(W)

 Typical

Flux2

Tj = 25.C

(lm)

 Typical

Pulsed Flux3

Tj = 85.C

(lm)

 Typical

Efficacy

Tj = 25.C

(lm/W)
BXKE-50E0801-B-2x 80 160 17.4 2.8 411 361 148
180 17.7 3.2 452 398 142
200 18.0 3.6 494 435 137
220 18.3 4.0 535 471 133
480 20.4 9.8 1028 905 105
BXKE-50E0801-D-2x 80 320 8.7 2.8 411 361 148
360 8.8 3.2 452 398 142
400 9.0 3.6 494 435 137
440 9.2 4.0 535 471 133
960 10.2 9.8 1028 905 105
BXKE-50G0801-A-2x 90 80 34.7 2.8 344 303 123
90 35.4 3.2 383 337 120
100 36.0 3.6 421 370 117
110 36.6 4.0 458 403 115
240 40.7 9.8 877 770 90
BXKE-50G0801-B-2x 90 160 17.4 2.8 344 303 123
180 17.7 3.2 383 337 120
200 18.0 3.6 421 370 117
220 18.3 4.0 458 403 115
480 20.4 9.8 877 770 90
BXKE-50G0801-D-2x 90 320 8.7 2.8 344 303 123
360 8.8 3.2 383 337 120
400 9.0 3.6 421 370 117
440 9.2 4.0 458 403 115
960 10.2 9.8 877 770 90
BXKE-56E0801-A-2x 80 80 34.7 2.8 425 375 153
90 35.4 3.2 468 412 147
100 36.0 3.6 512 451 142
110 36.6 4.0 554 488 137
240 40.7 9.8 1065 938 109
BXKE-56E0801-B-2x 80 160 17.4 2.8 425 375 153
180 17.7 3.2 468 412 147
200 18.0 3.6 512 451 142
220 18.3 4.0 554 488 137
480 20.4 9.8 1065 938 109
BXKE-56E0801-D-2x 80 320 8.7 2.8 425 375 153
360 8.8 3.2 468 412 147
400 9.0 3.6 512 451 142
440 9.2 4.0 554 488 137
960 10.2 9.8 1065 938 109
BXKE-65E0801-A-2x 80 80 34.7 2.8 432 381 156
90 35.4 3.2 476 419 150
100 36.0 3.6 520 457 145
110 36.6 4.0 563 496 140
240 40.7 9.8 1083 953 111



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tj = 25.C

(V)

 Typical Power

Tj = 25.C

(W)

 Typical

Flux2

Tj = 25.C

(lm)

 Typical

Pulsed Flux3

Tj = 85.C

(lm)

 Typical

Efficacy

Tj = 25.C

(lm/W)
BXKE-65E0801-B-2x 80 160 17.4 2.8 432 381 156
180 17.7 3.2 476 419 150
200 18.0 3.6 520 457 145
220 18.3 4.0 563 496 140
480 20.4 9.8 1083 953 111
BXKE-65E0801-D-2x 80 320 8.7 2.8 432 381 156
360 8.8 3.2 476 419 150
400 9.0 3.6 520 457 145
440 9.2 4.0 563 496 140
960 10.2 9.8 1083 953 111



product-748-727

Related products
