Description

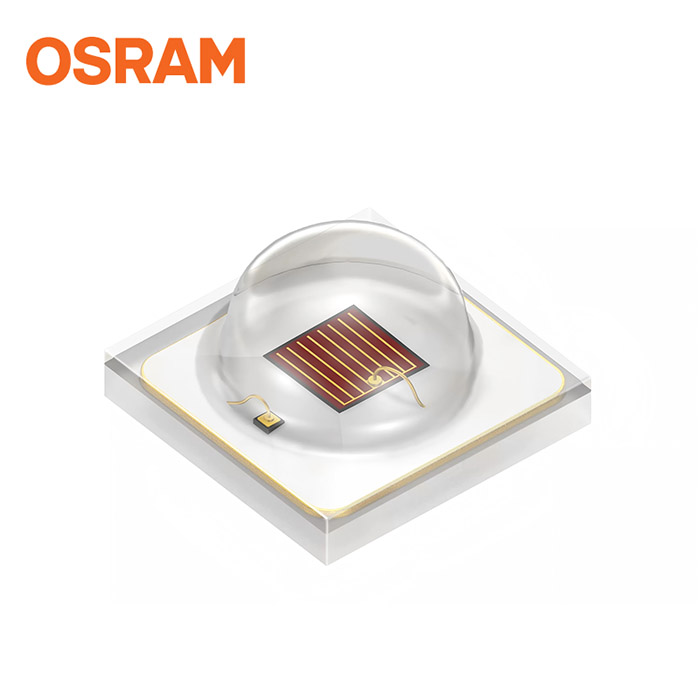

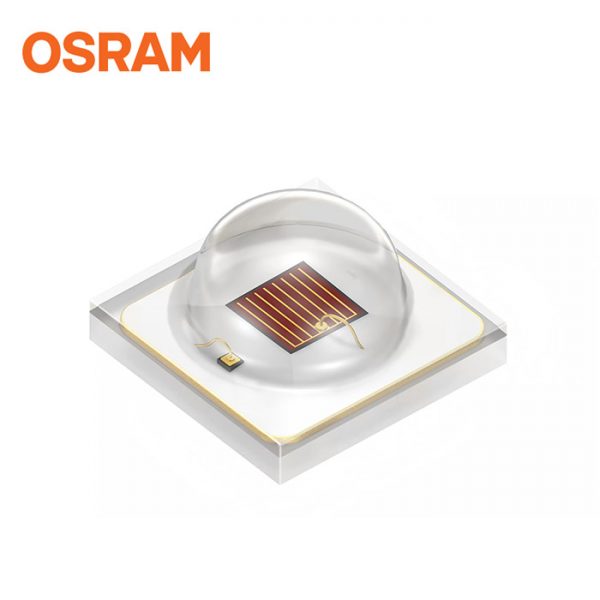

OSLON® SSL 120 GA CSSPM1.23 New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMT ceramic package with silicone lens

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Luminous Flux: typ. 115 lm

– Luminous efficacy: typ. 156 lm/W

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
Shipping Restrictions:
Mouser does not presently sell this product in your region.

Product: Amber LEDs
Mounting Style: SMD/SMT
Package / Case: 1212 (3030 metric)
Wavelength/Color Temperature: 617 nm
Illumination Color: Amber
Luminous Flux/Radiant Flux: 100 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.1 V
Power Rating: 740 mW
Lens Color: Colorless
Lens Dimensions: 2.14 mm
Lens Shape: Dome
Lens Transparency: Clear
Series: GA CSSPM1.23
Packaging: Reel
Packaging: Cut Tape
Brand: ams OSRAM
Height: 1.75 mm
Length: 3 mm
Luminous Intensity: 30 cd
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
600
Subcategory: LEDs
Tradename: OSLON
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 3 mm
Part # Aliases: Q65113A0973 GA CSSPM1.23-KULQ-W3-0-350-R18 GA CSSPM1.23-KULQ-W3 Q65113A0973
