Description

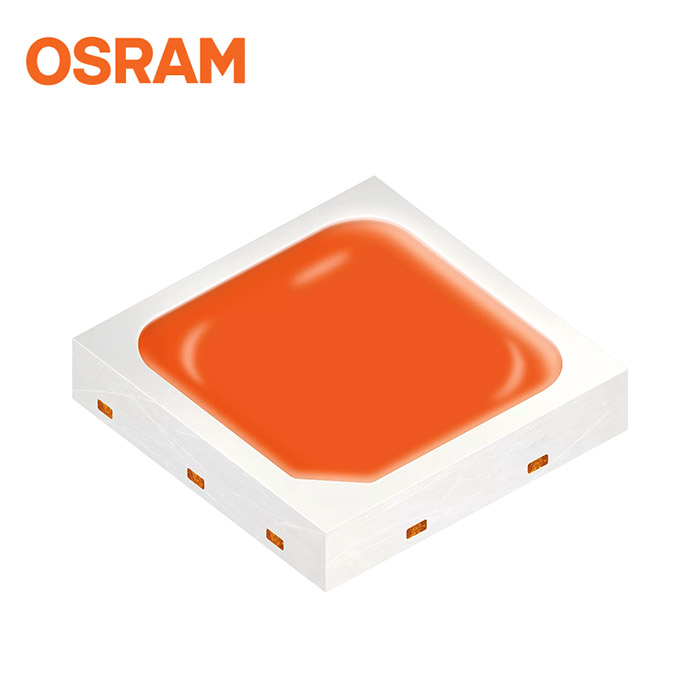

A PSLR31.13 DURIS® S 5 The compact, mid-power Duris® S 5 LED with industry standard 3030 package that comes with high efficacy, color quality and long lifetime. Ideal choice for indoor General Lighting applications.

Applications

– Architecture

– Architecture / Garden Lighting (LED & Laser)

– Medical Illumination

– Mood Lighting

– Photo Therapy

Features:

– Package: white SMT package, colored diffused silicone resin

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Luminous Flux: typ. 55 lm

– Luminous efficacy: typ. 59 lm/W

C
Manufacturer: ams OSRAM
Product Category: Single Color LEDs
Wavelength/Color Temperature: 610 nm
Illumination Color: Amber
Luminous Flux/Radiant Flux: 53 lm
Power Rating: 940 mW
Brand: ams OSRAM
Height: 0.6 mm
Length: 3 mm
Luminous Intensity: 16.3 cd
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Product Type: Single Color LEDs
Subcategory: LEDs
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 3 mm
Part # Aliases: Q65113A1498
