Description

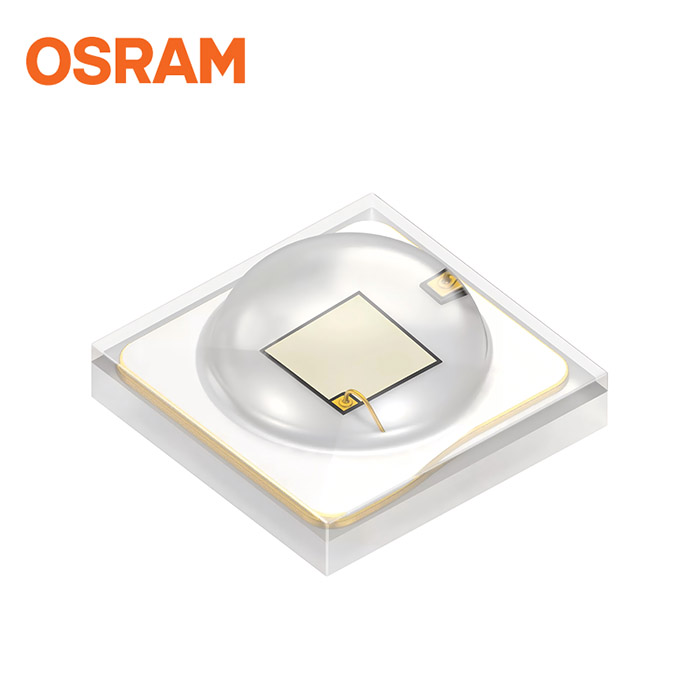

GB CSHPM1.13 OSLON® SSL 150 New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.

Applications

– Architecture

– Architecture / Garden Lighting (LED & Laser)

– Medical Illumination

– Photo Therapy

Features

– Package: SMT ceramic package with silicone lens

– Typ. Radiation: 150°

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Luminous Flux: typ. 43 lm

– Luminous efficacy: typ. 43 lm/w

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Blue LEDs
Mounting Style: SMD/SMT
Package / Case: 1212 (3030 metric)
Wavelength/Color Temperature: 470 nm
Illumination Color: Blue
Luminous Flux/Radiant Flux: 41 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.85 V
Power Rating: 1 W
Lens Color: Colorless
Lens Dimensions: 2.14 mm
Lens Shape: Dome
Lens Transparency: Clear
Series: OSLON SSL 150
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: ams OSRAM
Height: 1.44 mm
Length: 3 mm
Luminous Intensity: 9.66 cd
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
600
Subcategory: LEDs
Tradename: OSLON
Type: Single Color LEDs
Viewing Angle: 150 deg
Width: 3 mm
Part # Aliases: Q65112A0775
