Description

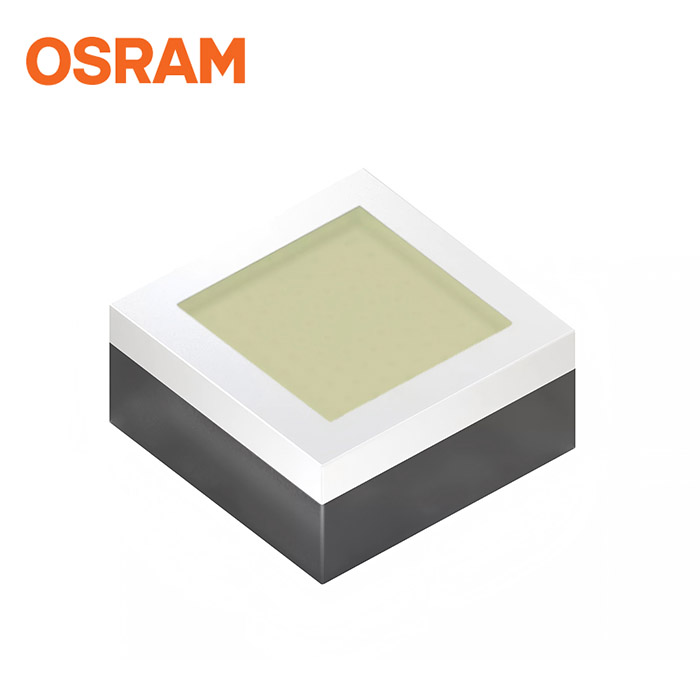

OSLON® Pure 1414 GC VJLPL1.13 The OSLON Pure® 1414, one of the best lumen density, excellent efficiency and color homogeneity. The OSLON Pure® 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.

Applications

– Appliances & Tools

– Entertainment

– Factory Automation

– Indoor Lighting

– Medical Lighting

– Outdoor & Industrial Lighting

– Projection & Display

– Robotics

Features

– Package: chip level conversion

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Luminous Flux: typ. 85 lm @ 25 °C

– Luminous efficacy: typ. 89 lm/W

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Cyan LEDs
Mounting Style: SMD/SMT
Package / Case: 0505 (1414 metric)
Wavelength/Color Temperature: 488 nm
Illumination Color: Cyan
Luminous Flux/Radiant Flux: 85 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.74 V
Power Rating: 960 mW
Lens Color: Colorless
Lens Dimensions: 1.1 mm x 1.1 mm
Lens Shape: Square
Lens Transparency: Clear
Series: Pure 1414
Packaging: Reel
Packaging: Cut Tape
Brand: ams OSRAM
Height: 0.75 mm
Length: 1.4 mm
Luminous Intensity: 29 cd
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
1000
Subcategory: LEDs
Tradename: OSLON
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 1.4 mm
Part # Aliases: Q65113A7280
