Description

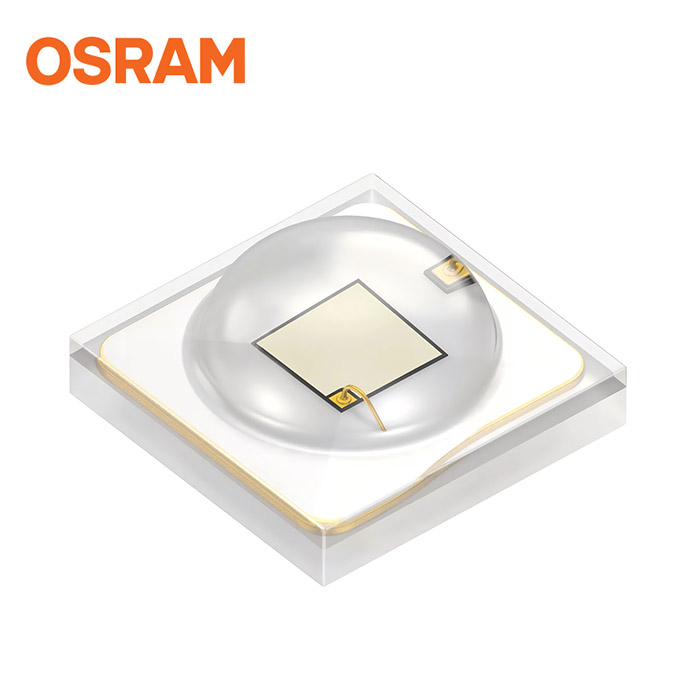

GD CSHPM1.14 OSLON® SSL 150 New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.

Applications

– Architecture

– Horticulture Lighting

Features

– Package: SMT ceramic package with silicone lens

– Typ. Radiation: 150°

– Corrosion Robustness Class: 3B

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Radiant Flux: typ. 753 mW

– Radiant Efficiency: typ. 75 %

– Photosynthetic Photon Flux : typ. 2.74μmol/s

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
Shipping Restrictions:
Mouser does not presently sell this product in your region.

Product: Blue LEDs
Mounting Style: SMD/SMT
Package / Case: 1212 (3030 metric)
Wavelength/Color Temperature: 455 nm
Illumination Color: Blue
Luminous Flux/Radiant Flux: 23.4 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.85 V
Power Rating: 1 W
Lens Color: Colorless
Lens Dimensions: 2.14 mm
Lens Shape: Dome
Lens Transparency: Clear
Packaging: Reel
Packaging: Cut Tape
Brand: ams OSRAM
Height: 1.44 mm
Length: 3 mm
Luminous Intensity: 5.52 cd
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
600
Subcategory: LEDs
Type: Single Color LEDs
Viewing Angle: 150 deg
Width: 3 mm
Part # Aliases: Q65113A1189
