Description

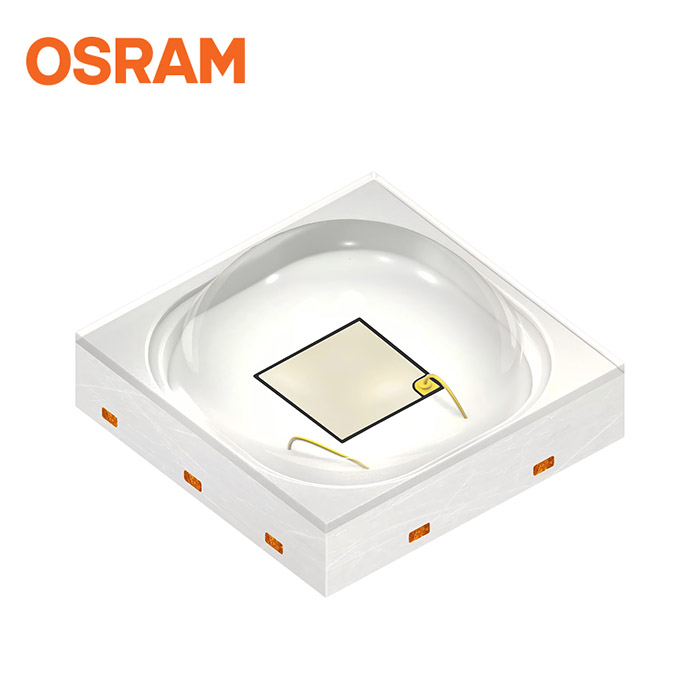

OSCONIQ® P 3030 GD QSSPA1.14 The OSCONIQ P 3030 Colors family LED comes with well known superior robustness, high reliability, long lifetime, low thermal resistance. Compact and proven 3mm x 3mm package and established footprint. Perfectly addressing applications that demand for high efficiency and long lifetime.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMD epoxy package

– Typ. Radiation: 120°

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Radiant Flux: typ. 760 mW

– Radiant Efficiency: typ. 75 %

– Photosynthetic Photon Flux: typ. 2.87 μmol/s

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Blue LEDs
Mounting Style: SMD/SMT
Package / Case: 1212 (3030 metric)
Wavelength/Color Temperature: 449 nm
Illumination Color: Blue
Luminous Flux/Radiant Flux: 25.2 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.85 V
Power Rating: 1 W
Lens Color: Colorless
Lens Dimensions: 2.73 mm
Lens Shape: Dome
Lens Transparency: Clear
Series: GD QSSPA1.14
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: ams OSRAM
Configuration: Single
Height: 1.63 mm
Length: 3 mm
Luminous Intensity: 7.48 cd
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
900
Subcategory: LEDs
Tradename: OSCONIQ
Type: Single Color LEDs
Viewing Angle: 130 deg
Width: 3 mm
Part # Aliases: Q65112A7997
Unit Weight: 0.000847 oz
