Description

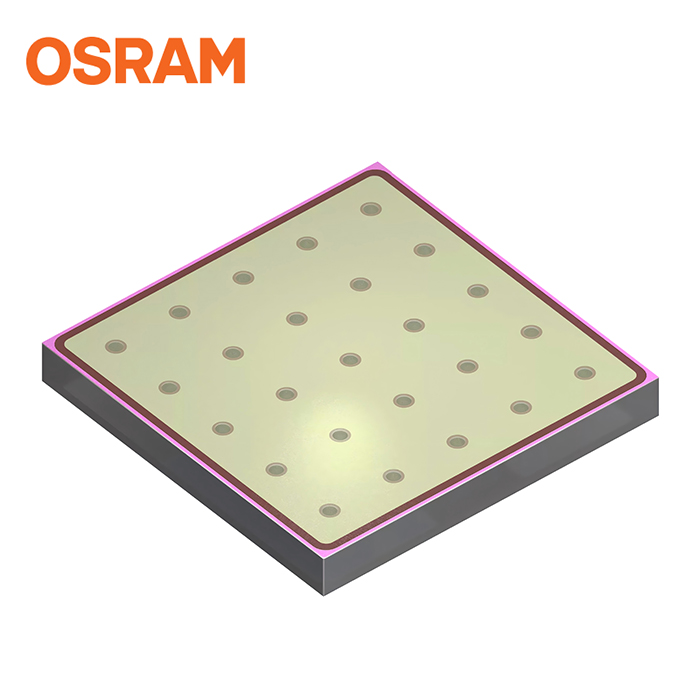

OSLON® Pure 1010 GD VJLPE1.14
Industry most compact high power chip-scale package LED with high performance, superior robustness and long lifetime.
Applications
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Package: chip level conversion
– Typ. Radiation: 120° (Lambertian emitter)
– Radiant Flux: typ. 1140 mW
– Radiant Efficiency: typ. 55 %
| Emission Color | Deep Blue (439-461 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 85°C |
| Power | 2.1 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 1.08 mm w Typical 1.088 mm h Typical 0.36 mm |
Brightness | Typical ΦV: 31.6 lm Typical IV: 10.1 cd Typical ΦE: 1100 mW Typical IE: 352 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GD VJLPE1.14-T1T4-AD-1 | ΦE = 1020.0 … 1185.0 mW (IF = 700 mA) | Q65113A0463 |
