Gen 8 Vero® SE 10 Array

Description

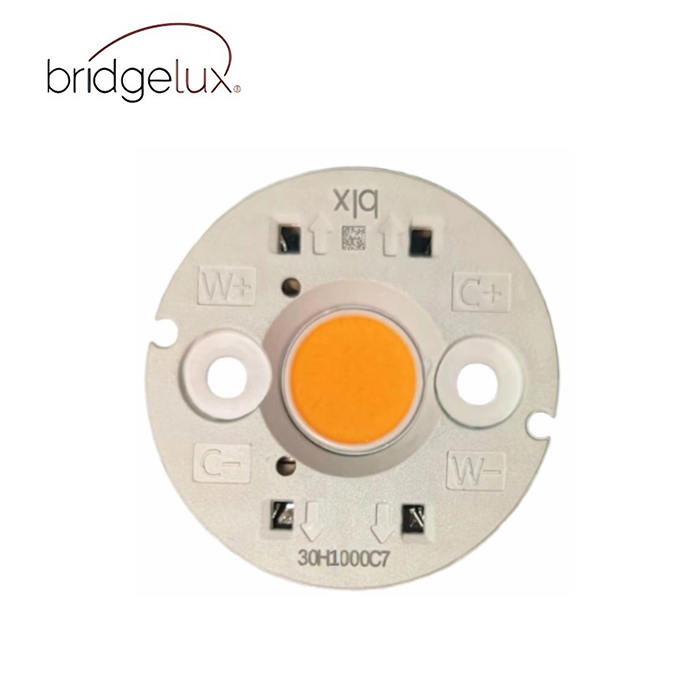

Bridgelux® Gen 8 Vero® SE 10 Array

The Vero® SE Series is a revolutionary light source system that integrates Bridgelux’s eighth generation COB technology with poke-in connectivity, enabling solder-free installation. Vero SE LED light sources streamline assembly processes, lower manufacturing costs, simplify the luminaire design process, improve light quality, and increase design flexibility.

Vero SE is available in four different light emitting surface (LES) configurations that operate reliably over a broad current range. With Vero SE, secondary connector and holder components are not required, allowing for rapid integration of arrays into fixtures, and an efficient field replaceable solution. Vero SE arrays deliver increased lumen density for improved beam control and precision lighting, with 2 and 3 SDCM color control standards for clean and consistent uniform lighting.

Features
• Poke-in electrical connectivity
• Top side part number markings
• Efficacy of 173 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes (backside marking)
• 10-Year warranty

Benefits
• Low cost, solderless, connector free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applica- tions
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Design with confidence

Product Family	Product	Part Number	Doc Number	LES(mm)	CCT (K)	CRI Options	Typ. Flux(lm)	Current (mA)	Voltage (V)	Efficacy (lm/W)	Substrate Size (mm)	Gen
BXRC	Vero SE 10B	BXRC-xxx1000-B-8x-SE	DS430	10	2700-6500	70, 80, 90,97	1180	200	34.2	173	⌀30.9	8
BXRC	Vero SE 10C	BXRC-xxx1000-C-8x-SE	DS430	10	2700-6500	70, 80, 90,97	1594	300	30.7	173	⌀30.9	8
BXRC	Vero SE 10D	BXRC-xxx1000-D-8x-SE	DS430	10	2700-6500	70, 80, 90,97	1080	250	24.9	173	⌀30.9	8

Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-27E1000-B-8x-SE	2700	80	200	1113	980	34.2	6.8	163
BXRC-27E1000-C-8x-SE	2700	80	300	1501	1321	30.7	9.2	163
BXRC-27E1000-D-8x-SE	2700	80	250	1014	892	24.9	6.2	163
BXRC-27G1000-B-8x-SE	2700	90	200	919	808	34.2	6.8	134
BXRC-27G1000-C-8x-SE	2700	90	300	1239	1090	30.7	9.2	134
BXRC-27G1000-D-8x-SE	2700	90	250	836	736	24.9	6.2	134
BXRC-27G10H0-B-8x-SE	2700	90	200	958	843	34.2	6.8	140
BXRC-27G10H0-C-8x-SE	2700	90	300	1292	1137	30.7	9.2	140
BXRC-27G10H0-D-8x-SE	2700	90	250	872	768	24.9	6.2	140
BXRC-27H1000-B-8x-SE	2700	97	200	814	716	34.2	6.8	119
BXRC-27H1000-C-8x-SE	2700	97	300	1098	966	30.7	9.2	119
BXRC-27H1000-D-8x-SE	2700	97	250	741	652	24.9	6.2	119
BXRC-30C1001-B-8x-SE	3000	70	200	1239	1090	34.2	6.8	181
BXRC-30C1001-C-8x-SE	3000	70	300	1670	1470	30.7	9.2	181
BXRC-30C1001-D-8x-SE	3000	70	250	1128	992	24.9	6.2	181
BXRC-30E1000-B-8x-SE	3000	80	200	1183	1041	34.2	6.8	173
BXRC-30E1000-C-8x-SE	3000	80	300	1595	1404	30.7	9.2	173
BXRC-30E1000-D-8x-SE	3000	80	250	1077	948	24.9	6.2	173
BXRC-30G1000-B-8x-SE	3000	90	200	960	845	34.2	6.8	140
BXRC-30G1000-C-8x-SE	3000	90	300	1295	1139	30.7	9.2	141
BXRC-30G1000-D-8x-SE	3000	90	250	874	769	24.9	6.2	140
BXRC-30G10H0-B-8x-SE	3000	90	200	1005	885	34.2	6.8	147
BXRC-30G10H0-C-8x-SE	3000	90	300	1356	1193	30.7	9.2	147
BXRC-30G10H0-D-8x-SE	3000	90	250	915	806	24.9	6.2	147
BXRC-30H1000-B-8x-SE	3000	97	200	870	765	34.2	6.8	127
BXRC-30H1000-C-8x-SE	3000	97	300	1173	1032	30.7	9.2	127
BXRC-30H1000-D-8x-SE	3000	97	250	792	697	24.9	6.2	127
BXRC-35E1000-B-8x-SE	3500	80	200	1211	1065	34.2	6.8	177
BXRC-35E1000-C-8x-SE	3500	80	300	1633	1437	30.7	9.2	177
BXRC-35E1000-D-8x-SE	3500	80	250	1102	970	24.9	6.2	177
BXRC-35G1000-B-8x-SE	3500	90	200	995	876	34.2	6.8	145
BXRC-35G1000-C-8x-SE	3500	90	300	1342	1181	30.7	9.2	146
BXRC-35G1000-D-8x-SE	3500	90	250	906	797	24.9	6.2	146
BXRC-40C1001-B-8x-SE	4000	70	200	1273	1121	34.2	6.8	186
BXRC-40C1001-C-8x-SE	4000	70	300	1717	1511	30.7	9.2	186
BXRC-40C1001-D-8x-SE	4000	70	250	1159	1020	24.9	6.2	186

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40E1000-B-8x-SE	4000	80	200	1218	1072	34.2	6.8	178
BXRC-40E1000-C-8x-SE	4000	80	300	1642	1445	30.7	9.2	178
BXRC-40E1000-D-8x-SE	4000	80	250	1109	976	24.9	6.2	178
BXRC-40G1000-B-8x-SE	4000	90	200	1016	894	34.2	6.8	149
BXRC-40G1000-C-8x-SE	4000	90	300	1370	1205	30.7	9.2	149
BXRC-40G1000-D-8x-SE	4000	90	250	925	814	24.9	6.2	149
BXRC-50C1001-B-8x-SE	5000	70	200	1280	1127	34.2	6.8	187
BXRC-50C1001-C-8x-SE	5000	70	300	1726	1519	30.7	9.2	187
BXRC-50C1001-D-8x-SE	5000	70	250	1166	1026	24.9	6.2	187
BXRC-50E1001-B-8x-SE	5000	80	200	1232	1084	34.2	6.8	180
BXRC-50E1001-C-8x-SE	5000	80	300	1661	1461	30.7	9.2	180
BXRC-50E1001-D-8x-SE	5000	80	250	1121	987	24.9	6.2	180
BXRC-50G1001-B-8x-SE	5000	90	200	1065	937	34.2	6.8	156
BXRC-50G1001-C-8x-SE	5000	90	300	1436	1263	30.7	9.2	156
BXRC-50G1001-D-8x-SE	5000	90	250	969	853	24.9	6.2	156
BXRC-57C1001-B-8x-SE	5700	70	200	1246	1096	34.2	6.8	182
BXRC-57C1001-C-8x-SE	5700	70	300	1679	1478	30.7	9.2	182
BXRC-57C1001-D-8x-SE	5700	70	250	1134	998	24.9	6.2	182
BXRC-57E1001-B-8x-SE	5700	80	200	1183	1041	34.2	6.8	173
BXRC-57E1001-C-8x-SE	5700	80	300	1595	1404	30.7	9.2	173
BXRC-57E1001-D-8x-SE	5700	80	250	1077	948	24.9	6.2	173
BXRC-65C1001-B-8x-SE	6500	70	200	1246	1096	34.2	6.8	182
BXRC-65C1001-C-8x-SE	6500	70	300	1679	1478	30.7	9.2	182
BXRC-65C1001-D-8x-SE	6500	70	250	1134	998	24.9	6.2	182
BXRC-65E1001-B-8x-SE	6500	80	200	1197	1053	34.2	6.8	175
BXRC-65E1001-C-8x-SE	6500	80	300	1614	1420	30.7	9.2	175
BXRC-65E1001-D-8x-SE	6500	80	250	1090	959	24.9	6.2	175

Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-27E1000-B-8x-SE	2700	80	200	1002		882		33.6	6.7	149
BXRC-27E1000-C-8x-SE	2700	80	300	1351		1189		30.1	9.0	150
BXRC-27E1000-D-8x-SE	2700	80	250	912		803		24.4	6.1	149
BXRC-27G1000-B-8x-SE	2700	90	200	827		727		33.6	6.7	123
BXRC-27G1000-C-8x-SE	2700	90	300	1115		981		30.1	9.0	123
BXRC-27G1000-D-8x-SE	2700	90	250	753		662		24.4	6.1	123
BXRC-27G10H0-B-8x-SE	2700	90	200	862		759		33.6	6.7	129
BXRC-27G10H0-C-8x-SE	2700	90	300	1163		1023		30.1	9.0	129
BXRC-27G10H0-D-8x-SE	2700	90	250	785		691		24.4	6.1	129
BXRC-27H1000-B-8x-SE	2700	97	200	733		645		33.6	6.7	109
BXRC-27H1000-C-8x-SE	2700	97	300	988		869		30.1	9.0	109
BXRC-27H1000-D-8x-SE	2700	97	250	667		587		24.4	6.1	109
BXRC-30C1001-B-8x-SE	3000	70	200	1115		981		33.6	6.7	166
BXRC-30C1001-C-8x-SE	3000	70	300	1503		1323		30.1	9.0	166
BXRC-30C1001-D-8x-SE	3000	70	250	1015		893		24.4	6.1	166
BXRC-30E1000-B-8x-SE	3000	80	200	1065		937		33.6	6.7	159
BXRC-30E1000-C-8x-SE	3000	80	300	1436		1263		30.1	9.0	159
BXRC-30E1000-D-8x-SE	3000	80	250	969		853		24.4	6.1	159
BXRC-30G1000-B-8x-SE	3000	90	200	864		761		33.6	6.7	129
BXRC-30G1000-C-8x-SE	3000	90	300	1165		1025		30.1	9.0	129
BXRC-30G1000-D-8x-SE	3000	90	250	787		692		24.4	6.1	129
BXRC-30G10H0-B-8x-SE	3000	90	200	905		796		33.6	6.7	135
BXRC-30G10H0-C-8x-SE	3000	90	300	1220		1074		30.1	9.0	135
BXRC-30G10H0-D-8x-SE	3000	90	250	824		725		24.4	6.1	135
BXRC-30H1000-B-8x-SE	3000	97	200	783		689		33.6	6.7	117
BXRC-30H1000-C-8x-SE	3000	97	300	1056		929		30.1	9.0	117
BXRC-30H1000-D-8x-SE	3000	97	250	713		627		24.4	6.1	117
BXRC-35E1000-B-8x-SE	3500	80	200	1090		959		33.6	6.7	162
BXRC-35E1000-C-8x-SE	3500	80	300	1469		1293		30.1	9.0	163
BXRC-35E1000-D-8x-SE	3500	80	250	992		873		24.4	6.1	162
BXRC-35G1000-B-8x-SE	3500	90	200	896		788		33.6	6.7	133
BXRC-35G1000-C-8x-SE	3500	90	300	1208		1063		30.1	9.0	134
BXRC-35G1000-D-8x-SE	3500	90	250	815		717		24.4	6.1	134
BXRC-40C1001-B-8x-SE	4000	70	200	1146		1009		33.6	6.7	171
BXRC-40C1001-C-8x-SE	4000	70	300	1545		1360		30.1	9.0	171
BXRC-40C1001-D-8x-SE	4000	70	250	1043		918		24.4	6.1	171

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40E1000-B-8x-SE	4000	80	200	1096		964		33.6	6.7	163
BXRC-40E1000-C-8x-SE	4000	80	300	1478		1300		30.1	9.0	164
BXRC-40E1000-D-8x-SE	4000	80	250	998		878		24.4	6.1	163
BXRC-40G1000-B-8x-SE	4000	90	200	914		805		33.6	6.7	136
BXRC-40G1000-C-8x-SE	4000	90	300	1233		1085		30.1	9.0	136
BXRC-40G1000-D-8x-SE	4000	90	250	832		733		24.4	6.1	136
BXRC-50C1001-B-8x-SE	5000	70	200	1152		1014		33.6	6.7	172
BXRC-50C1001-C-8x-SE	5000	70	300	1554		1367		30.1	9.0	172
BXRC-50C1001-D-8x-SE	5000	70	250	1049		923		24.4	6.1	172
BXRC-50E1001-B-8x-SE	5000	80	200	1108		975		33.6	6.7	165
BXRC-50E1001-C-8x-SE	5000	80	300	1495		1315		30.1	9.0	165
BXRC-50E1001-D-8x-SE	5000	80	250	1009		888		24.4	6.1	165
BXRC-50G1001-B-8x-SE	5000	90	200	958		843		33.6	6.7	143
BXRC-50G1001-C-8x-SE	5000	90	300	1292		1137		30.1	9.0	143
BXRC-50G1001-D-8x-SE	5000	90	250	872		768		24.4	6.1	143
BXRC-57C1001-B-8x-SE	5700	70	200	1121		986		33.6	6.7	167
BXRC-57C1001-C-8x-SE	5700	70	300	1512		1330		30.1	9.0	167
BXRC-57C1001-D-8x-SE	5700	70	250	1021		898		24.4	6.1	167
BXRC-57E1001-B-8x-SE	5700	80	200	1065		937		33.6	6.7	159
BXRC-57E1001-C-8x-SE	5700	80	300	1436		1263		30.1	9.0	159
BXRC-57E1001-D-8x-SE	5700	80	250	969		853		24.4	6.1	159
BXRC-65C1001-B-8x-SE	6500	70	200	1121		986		33.6	6.7	167
BXRC-65C1001-C-8x-SE	6500	70	300	1512		1330		30.1	9.0	167
BXRC-65C1001-D-8x-SE	6500	70	250	1021		898		24.4	6.1	167
BXRC-65E1001-B-8x-SE	6500	80	200	1077		948		33.6	6.7	161
BXRC-65E1001-C-8x-SE	6500	80	300	1452		1278		30.1	9.0	161
BXRC-65E1001-D-8x-SE	6500	80	250	981		863		24.4	6.1	161

Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-27E1000-B-83-SE	2700	80	500	36.8	1975	18.4	107	E	872461
BXRC-27E1000-C-83-SE	2700	80	1000	34.3	3498	34.3	102	E	872466
BXRC-27E1000-D-83-SE	2700	80	1000	28.5	2800	28.5	98	F	872471
BXRC-27G1000-B-83-SE	2700	90	500	36.8	1629	18.4	89	F	872523
BXRC-27G1000-C-83-SE	2700	90	1000	34.3	2886	34.3	84	F	872528
BXRC-27G1000-D-83-SE	2700	90	1000	28.5	2310	28.5	81	F	872533
BXRC-27G10H0-B-83-SE	2700	90	500	36.8	1700	18.4	92	F	872539
BXRC-27G10H0-C-83-SE	2700	90	1000	34.3	3011	34.3	88	F	872543
BXRC-27G10H0-D-83-SE	2700	90	1000	28.5	2410	28.5	84	F	872547
BXRC-27H1000-B-83-SE	2700	95	500	36.8	1444	18.4	79	F	872632
BXRC-27H1000-C-83-SE	2700	95	910	33.9	2367	30.8	77	G	872636
BXRC-27H1000-D-83-SE	2700	95	850	27.9	1790	23.7	75	G	872640
BXRC-30C1001-B-83-SE	3000	70	500	36.8	2197	18.4	119	E	872695
BXRC-30C1001-C-83-SE	3000	70	1000	34.3	3892	34.3	113	E	872701
BXRC-30C1001-D-83-SE	3000	70	1000	28.5	3115	28.5	109	E	872707
BXRC-30E1000-B-83-SE	3000	80	500	36.8	2098	18.4	114	E	872767
BXRC-30E1000-C-83-SE	3000	80	1000	34.3	3717	34.3	108	E	872772
BXRC-30E1000-D-83-SE	3000	80	1000	28.5	2975	28.5	104	E	872777

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-27E1000-B-83-SE	2700	80	500	36.8	1975	18.4	107	E	872461
BXRC-27E1000-C-83-SE	2700	80	1000	34.3	3498	34.3	102	E	872466
BXRC-27E1000-D-83-SE	2700	80	1000	28.5	2800	28.5	98	F	872471
BXRC-27G1000-B-83-SE	2700	90	500	36.8	1629	18.4	89	F	872523
BXRC-27G1000-C-83-SE	2700	90	1000	34.3	2886	34.3	84	F	872528
BXRC-27G1000-D-83-SE	2700	90	1000	28.5	2310	28.5	81	F	872533
BXRC-27G10H0-B-83-SE	2700	90	500	36.8	1700	18.4	92	F	872539
BXRC-27G10H0-C-83-SE	2700	90	1000	34.3	3011	34.3	88	F	872543
BXRC-27G10H0-D-83-SE	2700	90	1000	28.5	2410	28.5	84	F	872547
BXRC-27H1000-B-83-SE	2700	95	500	36.8	1444	18.4	79	F	872632
BXRC-27H1000-C-83-SE	2700	95	910	33.9	2367	30.8	77	G	872636
BXRC-27H1000-D-83-SE	2700	95	850	27.9	1790	23.7	75	G	872640
BXRC-30C1001-B-83-SE	3000	70	500	36.8	2197	18.4	119	E	872695
BXRC-30C1001-C-83-SE	3000	70	1000	34.3	3892	34.3	113	E	872701
BXRC-30C1001-D-83-SE	3000	70	1000	28.5	3115	28.5	109	E	872707
BXRC-30E1000-B-83-SE	3000	80	500	36.8	2098	18.4	114	E	872767
BXRC-30E1000-C-83-SE	3000	80	1000	34.3	3717	34.3	108	E	872772
BXRC-30E1000-D-83-SE	3000	80	1000	28.5	2975	28.5	104	E	872777

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class3	Regis- tration No
BXRC-57E1001-B-83-SE	5700	80	500	36.8	2098	18.4	114	E	873604
BXRC-57E1001-C-83-SE	5700	80	1000	34.3	3717	34.3	108	E	873608
BXRC-57E1001-D-83-SE	5700	80	1000	28.5	2975	28.5	104	E	873612
BXRC-65C1001-B-83-SE	6500	70	500	36.8	2209	18.4	120	E	873652
BXRC-65C1001-C-83-SE	6500	70	1000	34.3	3913	34.3	114	E	873656
BXRC-65C1001-D-83-SE	6500	70	1000	28.5	3132	28.5	110	E	873660
BXRC-65E1001-B-83-SE	6500	80	500	36.8	2123	18.4	115	E	873700
BXRC-65E1001-C-83-SE	6500	80	1000	34.3	3760	34.3	110	E	873704
BXRC-65E1001-D-83-SE	6500	80	1000	28.5	3010	28.5	105	E	873708
