Gen 8 Vero® SE 29 Array

Description

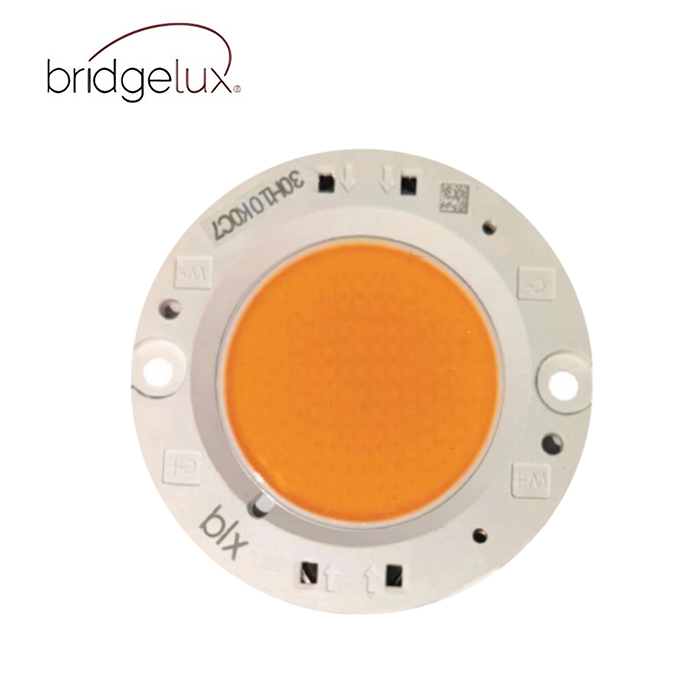

Bridgelux® Gen 8 Vero® SE 29 Array

The Vero® SE Series is a revolutionary light source system that integrates Bridgelux’s eighth generation COB technology with poke-in connectivity, enabling solder-free installation. Vero SE LED light sources streamline assembly processes, lower manufacturing costs, simplify the luminaire design process, improve light quality, and increase design flexibility.

Vero SE is available in four different light emitting surface (LES) configurations that operate reliably over a broad current range. With Vero SE, secondary connector and holder components are not required, allowing for rapid integration of arrays into fixtures, and an efficient field replaceable solution. Vero SE arrays deliver increased lumen density for improved beam control and precision lighting, with 2 and 3 SDCM color control standards for clean and consistent uniform lighting.

Features
• Poke-in electrical connectivity
• Top side part number markings
• Efficacy of 185 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes (backside marking)
• 10-Year warranty

Benefits
• Low cost, solderless, connector free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization
and delivers enhanced optical control
• Design flexibility for a broad range of lighting applica- tions
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Design with confidence

Product Family	Product	Part Number	Doc Number	LES(mm)	CCT (K)	CRI Options	Typ. Flux(lm)	Current (mA)	Voltage (V)	Efficacy (lm/W)	Substrate Size (mm)	Gen
BXRC	Vero SE 29B	BXRC-xxx10K0-B-8x-SE	DS433	29	2700-6500	70, 80, 90,97	12977	1400	50.2	185	⌀49.1	8
BXRC	Vero SE 29C	BXRC-xxx400x-C-8x-SE	DS433	29	2700-6500	70, 80, 90,97	16002	1300	66.7	185	⌀49.1	8
BXRC	Vero SE 29D	BXRC-xxx400x-D-8x-SE	DS433	29	2700-6500	70, 80, 90,97	11415	1700	36.4	185	⌀49.1	8

Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-27E10K0-B-8x-SE	2700	80	1400	12216	10994	50.2	70.3	174
BXRC-27E10K0-C-8x-SE	2700	80	1300	15062	13555	66.7	86.7	174
BXRC-27E10K0-D-8x-SE	2700	80	1700	10744	9670	36.4	61.9	174
BXRC-27G10K0-B-8x-SE	2700	90	1400	10078	9070	50.2	70.3	143
BXRC-27G10K0-C-8x-SE	2700	90	1300	12426	11183	66.7	86.7	143
BXRC-27G10K0-D-8x-SE	2700	90	1700	8864	7977	36.4	61.9	143
BXRC-27G1KH0-B-8x-SE	2700	90	1400	10513	9462	50.2	70.3	150
BXRC-27G1KH0-C-8x-SE	2700	90	1300	12962	11666	66.7	86.7	149
BXRC-27G1KH0-D-8x-SE	2700	90	1700	9246	8322	36.4	61.9	149
BXRC-27H10K0-B-8x-SE	2700	97	1400	8933	8040	50.2	70.3	127
BXRC-27H10K0-C-8x-SE	2700	97	1300	11014	9912	66.7	86.7	127
BXRC-27H10K0-D-8x-SE	2700	97	1700	7856	7071	36.4	61.9	127
BXRC-30C10K1-B-8x-SE	3000	70	1400	13590	12231	50.2	70.3	193
BXRC-30C10K1-C-8x-SE	3000	70	1300	16756	15080	66.7	86.7	193
BXRC-30C10K1-D-8x-SE	3000	70	1700	11953	10757	36.4	61.9	193
BXRC-30E10K0-B-8x-SE	3000	80	1400	12979	11682	50.2	70.3	185
BXRC-30E10K0-C-8x-SE	3000	80	1300	16003	14403	66.7	86.7	185
BXRC-30E10K0-D-8x-SE	3000	80	1700	11415	10274	36.4	61.9	184
BXRC-30G10K0-B-8x-SE	3000	90	1400	10536	9483	50.2	70.3	150
BXRC-30G10K0-C-8x-SE	3000	90	1300	12991	11692	66.7	86.7	150
BXRC-30G10K0-D-8x-SE	3000	90	1700	9267	8340	36.4	61.9	150
BXRC-30G1KH0-B-8x-SE	3000	90	1400	11033	9929	50.2	70.3	157
BXRC-30G1KH0-C-8x-SE	3000	90	1300	13602	12242	66.7	86.7	157
BXRC-30G1KH0-D-8x-SE	3000	90	1700	9703	8733	36.4	61.9	157
BXRC-30H10K0-B-8x-SE	3000	97	1400	9544	8589	50.2	70.3	136
BXRC-30H10K0-C-8x-SE	3000	97	1300	11767	10590	66.7	86.7	136
BXRC-30H10K0-D-8x-SE	3000	97	1700	8394	7554	36.4	61.9	136
BXRC-35E10K0-B-8x-SE	3500	80	1400	13285	11956	50.2	70.3	189
BXRC-35E10K0-C-8x-SE	3500	80	1300	16379	14741	66.7	86.7	189
BXRC-35E10K0-D-8x-SE	3500	80	1700	11684	10516	36.4	61.9	189
BXRC-35G10K0-B-8x-SE	3500	90	1400	10918	9826	50.2	70.3	155
BXRC-35G10K0-C-8x-SE	3500	90	1300	13461	12115	66.7	86.7	155
BXRC-35G10K0-D-8x-SE	3500	90	1700	9602	8642	36.4	61.9	155
BXRC-40C10K1-B-8x-SE	4000	70	1400	13972	12575	50.2	70.3	199
BXRC-40C10K1-C-8x-SE	4000	70	1300	17227	15504	66.7	86.7	199
BXRC-40C10K1-D-8x-SE	4000	70	1700	12288	11059	36.4	61.9	199

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40E10K0-B-8x-SE	4000	80	1400	13361	12025	50.2	70.3	190
BXRC-40E10K0-C-8x-SE	4000	80	1300	16474	14826	66.7	86.7	190
BXRC-40E10K0-D-8x-SE	4000	80	1700	11751	10576	36.4	61.9	190
BXRC-40G10K0-B-8x-SE	4000	90	1400	11147	10032	50.2	70.3	159
BXRC-40G10K0-C-8x-SE	4000	90	1300	13744	12369	66.7	86.7	159
BXRC-40G10K0-D-8x-SE	4000	90	1700	9804	8823	36.4	61.9	158
BXRC-50C10K1-B-8x-SE	5000	70	1400	14048	12644	50.2	70.3	200
BXRC-50C10K1-C-8x-SE	5000	70	1300	17321	15589	66.7	86.7	200
BXRC-50C10K1-D-8x-SE	5000	70	1700	12355	11120	36.4	61.9	200
BXRC-50E10K1-B-8x-SE	5000	80	1400	13514	12163	50.2	70.3	192
BXRC-50E10K1-C-8x-SE	5000	80	1300	16662	14996	66.7	86.7	192
BXRC-50E10K1-D-8x-SE	5000	80	1700	11885	10697	36.4	61.9	192
BXRC-50G10K1-B-8x-SE	5000	90	1400	11682	10513	50.2	70.3	166
BXRC-50G10K1-C-8x-SE	5000	90	1300	14403	12962	66.7	86.7	166
BXRC-50G10K1-D-8x-SE	5000	90	1700	10274	9246	36.4	61.9	166
BXRC-57C10K1-B-8x-SE	5700	70	1400	13667	12300	50.2	70.3	194
BXRC-57C10K1-C-8x-SE	5700	70	1300	16850	15165	66.7	86.7	194
BXRC-57C10K1-D-8x-SE	5700	70	1700	12020	10818	36.4	61.9	194
BXRC-57E10K1-B-8x-SE	5700	80	1400	12979	11682	50.2	70.3	185
BXRC-57E10K1-C-8x-SE	5700	80	1300	16003	14403	66.7	86.7	185
BXRC-57E10K1-D-8x-SE	5700	80	1700	11415	10274	36.4	61.9	184
BXRC-65C10K1-B-8x-SE	6500	70	1400	13667	12300	50.2	70.3	194
BXRC-65C10K1-C-8x-SE	6500	70	1300	16850	15165	66.7	86.7	194
BXRC-65C10K1-D-8x-SE	6500	70	1700	12020	10818	36.4	61.9	194
BXRC-65E10K1-B-8x-SE	6500	80	1400	13132	11819	50.2	70.3	187
BXRC-65E10K1-C-8x-SE	6500	80	1300	16191	14572	66.7	86.7	187
BXRC-65E10K1-D-8x-SE	6500	80	1700	11550	10395	36.4	61.9	187

Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-27E10K0-B-8x-SE	2700	80	1400	10994		9895		49.2	68.9	160
BXRC-27E10K0-C-8x-SE	2700	80	1300	13555		12200		65.4	85.0	159
BXRC-27E10K0-D-8x-SE	2700	80	1700	9670		8703		35.7	60.7	159
BXRC-27G10K0-B-8x-SE	2700	90	1400	9070		8163		49.2	68.9	132
BXRC-27G10K0-C-8x-SE	2700	90	1300	11183		10065		65.4	85.0	132
BXRC-27G10K0-D-8x-SE	2700	90	1700	7977		7180		35.7	60.7	132
BXRC-27G1KH0-B-8x-SE	2700	90	1400	9462		8516		49.2	68.9	137
BXRC-27G1KH0-C-8x-SE	2700	90	1300	11666		10499		65.4	85.0	137
BXRC-27G1KH0-D-8x-SE	2700	90	1700	8322		7490		35.7	60.7	137
BXRC-27H10K0-B-8x-SE	2700	97	1400	8040		7236		49.2	68.9	117
BXRC-27H10K0-C-8x-SE	2700	97	1300	9912		8921		65.4	85.0	117
BXRC-27H10K0-D-8x-SE	2700	97	1700	7071		6364		35.7	60.7	117
BXRC-30C10K1-B-8x-SE	3000	70	1400	12231		11008		49.2	68.9	178
BXRC-30C10K1-C-8x-SE	3000	70	1300	15080		13572		65.4	85.0	177
BXRC-30C10K1-D-8x-SE	3000	70	1700	10757		9682		35.7	60.7	177
BXRC-30E10K0-B-8x-SE	3000	80	1400	11682		10513		49.2	68.9	170
BXRC-30E10K0-C-8x-SE	3000	80	1300	14403		12962		65.4	85.0	169
BXRC-30E10K0-D-8x-SE	3000	80	1700	10274		9246		35.7	60.7	169
BXRC-30G10K0-B-8x-SE	3000	90	1400	9483		8534		49.2	68.9	138
BXRC-30G10K0-C-8x-SE	3000	90	1300	11692		10522		65.4	85.0	138
BXRC-30G10K0-D-8x-SE	3000	90	1700	8340		7506		35.7	60.7	137
BXRC-30G1KH0-B-8x-SE	3000	90	1400	9929		8936		49.2	68.9	144
BXRC-30G1KH0-C-8x-SE	3000	90	1300	12242		11018		65.4	85.0	144
BXRC-30G1KH0-D-8x-SE	3000	90	1700	8733		7859		35.7	60.7	144
BXRC-30H10K0-B-8x-SE	3000	97	1400	8589		7730		49.2	68.9	125
BXRC-30H10K0-C-8x-SE	3000	97	1300	10590		9531		65.4	85.0	125
BXRC-30H10K0-D-8x-SE	3000	97	1700	7554		6799		35.7	60.7	125
BXRC-35E10K0-B-8x-SE	3500	80	1400	11956		10761		49.2	68.9	174
BXRC-35E10K0-C-8x-SE	3500	80	1300	14741		13267		65.4	85.0	173
BXRC-35E10K0-D-8x-SE	3500	80	1700	10516		9464		35.7	60.7	173
BXRC-35G10K0-B-8x-SE	3500	90	1400	9826		8844		49.2	68.9	143
BXRC-35G10K0-C-8x-SE	3500	90	1300	12115		10904		65.4	85.0	143
BXRC-35G10K0-D-8x-SE	3500	90	1700	8642		7778		35.7	60.7	142
BXRC-40C10K1-B-8x-SE	4000	70	1400	12575		11317		49.2	68.9	183
BXRC-40C10K1-C-8x-SE	4000	70	1300	15504		13954		65.4	85.0	182
BXRC-40C10K1-D-8x-SE	4000	70	1700	11059		9954		35.7	60.7	182

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40E10K0-B-8x-SE	4000	80	1400	12025		10823		49.2	68.9	175
BXRC-40E10K0-C-8x-SE	4000	80	1300	14826		13344		65.4	85.0	174
BXRC-40E10K0-D-8x-SE	4000	80	1700	10576		9518		35.7	60.7	174
BXRC-40G10K0-B-8x-SE	4000	90	1400	10032		9029		49.2	68.9	146
BXRC-40G10K0-C-8x-SE	4000	90	1300	12369		11132		65.4	85.0	146
BXRC-40G10K0-D-8x-SE	4000	90	1700	8823		7941		35.7	60.7	145
BXRC-50C10K1-B-8x-SE	5000	70	1400	12644		11379		49.2	68.9	184
BXRC-50C10K1-C-8x-SE	5000	70	1300	15589		14030		65.4	85.0	183
BXRC-50C10K1-D-8x-SE	5000	70	1700	11120		10008		35.7	60.7	183
BXRC-50E10K1-B-8x-SE	5000	80	1400	12163		10946		49.2	68.9	177
BXRC-50E10K1-C-8x-SE	5000	80	1300	14996		13496		65.4	85.0	176
BXRC-50E10K1-D-8x-SE	5000	80	1700	10697		9627		35.7	60.7	176
BXRC-50G10K1-B-8x-SE	5000	90	1400	10513		9462		49.2	68.9	153
BXRC-50G10K1-C-8x-SE	5000	90	1300	12962		11666		65.4	85.0	153
BXRC-50G10K1-D-8x-SE	5000	90	1700	9246		8322		35.7	60.7	152
BXRC-57C10K1-B-8x-SE	5700	70	1400	12300		11070		49.2	68.9	179
BXRC-57C10K1-C-8x-SE	5700	70	1300	15165		13649		65.4	85.0	178
BXRC-57C10K1-D-8x-SE	5700	70	1700	10818		9736		35.7	60.7	178
BXRC-57E10K1-B-8x-SE	5700	80	1400	11682		10513		49.2	68.9	170
BXRC-57E10K1-C-8x-SE	5700	80	1300	14403		12962		65.4	85.0	169
BXRC-57E10K1-D-8x-SE	5700	80	1700	10274		9246		35.7	60.7	169
BXRC-65C10K1-B-8x-SE	6500	70	1400	12300		11070		49.2	68.9	179
BXRC-65C10K1-C-8x-SE	6500	70	1300	15165		13649		65.4	85.0	178
BXRC-65C10K1-D-8x-SE	6500	70	1700	10818		9736		35.7	60.7	178
BXRC-65E10K1-B-8x-SE	6500	80	1400	11819		10637		49.2	68.9	172
BXRC-65E10K1-C-8x-SE	6500	80	1300	14572		13115		65.4	85.0	171
BXRC-65E10K1-D-8x-SE	6500	80	1700	10395		9355		35.7	60.7	171

Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-27E10K0-B-83-SE	2700	80	4750	55.5	28105	263.6	107	E	872478
BXRC-27E10K0-C-83-SE	2700	80	4750	74.3	36774	353.1	104	E	872483
BXRC-27E10K0-D-83-SE	2700	80	5500	39.9	23776	219.5	108	E	872488
BXRC-27G10K0-B-83-SE	2700	90	4750	55.5	23186	263.6	88	F	872552
BXRC-27G10K0-C-83-SE	2700	90	4750	74.3	30339	353.1	86	F	872557
BXRC-27G10K0-D-83-SE	2700	90	5500	39.9	19615	219.5	89	F	872562
BXRC-27G1KH0-B-83-SE	2700	90	4750	55.5	24187	263.6	92	F	872566
BXRC-27G1KH0-C-83-SE	2700	90	4750	74.3	31649	353.1	90	F	872570
BXRC-27G1KH0-D-83-SE	2700	90	5500	39.9	20462	219.5	93	F	872574
BXRC-27H10K0-B-83-SE	2700	95	4250	54.6	18753	232.2	81	F	872642
BXRC-27H10K0-C-83-SE	2700	95	3910	72.4	22877	283.0	81	F	872644
BXRC-27H10K0-D-83-SE	2700	95	5190	39.6	16571	205.4	81	F	872648
BXRC-30C10K1-B-83-SE	3000	70	4750	55.5	31266	263.6	119	E	872713
BXRC-30C10K1-C-83-SE	3000	70	4750	74.3	40911	353.1	116	E	872719
BXRC-30C10K1-D-83-SE	3000	70	5500	39.9	26450	219.5	120	E	872725
BXRC-30E10K0-B-83-SE	3000	80	4750	55.5	29861	263.6	113	E	872784
BXRC-30E10K0-C-83-SE	3000	80	4750	74.3	39073	353.1	111	E	872789
BXRC-30E10K0-D-83-SE	3000	80	5500	39.9	25262	219.5	115	E	872794

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-30G10K0-B-83-SE	3000	90	4750	55.5	24240	263.6	92	F	872862
BXRC-30G10K0-C-83-SE	3000	90	4750	74.3	31718	353.1	90	F	872867
BXRC-30G10K0-D-83-SE	3000	90	5500	39.9	20506	219.5	93	F	872872
BXRC-30G1KH0-B-83-SE	3000	90	4750	55.5	25382	263.6	96	F	872876
BXRC-30G1KH0-C-83-SE	3000	90	4750	74.3	33212	353.1	94	F	872880
BXRC-30G1KH0-D-83-SE	3000	90	5500	39.9	21472	219.5	98	F	872884
BXRC-30H10K0-B-83-SE	3000	95	4750	55.5	21957	263.6	83	F	872965
BXRC-30H10K0-C-83-SE	3000	95	4750	74.3	28730	353.1	81	F	872967
BXRC-30H10K0-D-83-SE	3000	95	5500	39.9	18575	219.5	85	F	872971
BXRC-35E10K0-B-83-SE	3500	80	4750	55.5	30564	263.6	116	E	873031
BXRC-35E10K0-C-83-SE	3500	80	4750	74.3	39992	353.1	113	E	873036
BXRC-35E10K0-D-83-SE	3500	80	5500	39.9	25856	219.5	118	E	873041
BXRC-35G10K0-B-83-SE	3500	90	4750	55.5	25118	263.6	95	F	873093
BXRC-35G10K0-C-83-SE	3500	90	4750	74.3	32867	353.1	93	F	873098
BXRC-35G10K0-D-83-SE	3500	90	5500	39.9	21249	219.5	97	F	873103
BXRC-40C10K1-B-83-SE	4000	70	4750	55.5	32145	263.6	122	E	873176
BXRC-40C10K1-C-83-SE	4000	70	4750	74.3	42061	353.1	119	E	873182
BXRC-40C10K1-D-83-SE	4000	70	5500	39.9	27193	219.5	124	E	873188
BXRC-40E10K0-B-83-SE	4000	80	4750	55.5	30739	263.6	117	E	873247
BXRC-40E10K0-C-83-SE	4000	80	4750	74.3	40222	353.1	114	E	873252
BXRC-40E10K0-D-83-SE	4000	80	5500	39.9	26004	219.5	118	E	873257
BXRC-40G10K0-B-83-SE	4000	90	4750	55.5	25645	263.6	97	F	873309
BXRC-40G10K0-C-83-SE	4000	90	4750	74.3	33557	353.1	95	F	873314
BXRC-40G10K0-D-83-SE	4000	90	5500	39.9	21695	219.5	99	F	873319
BXRC-50C10K1-B-83-SE	5000	70	4750	55.5	32320	263.6	123	E	873386
BXRC-50C10K1-C-83-SE	5000	70	4750	74.3	42290	353.1	120	E	873390
BXRC-50C10K1-D-83-SE	5000	70	5500	39.9	27342	219.5	125	D	873394
BXRC-50E10K1-B-83-SE	5000	80	4750	55.5	31091	263.6	118	E	873434
BXRC-50E10K1-C-83-SE	5000	80	4750	74.3	40682	353.1	115	E	873438
BXRC-50E10K1-D-83-SE	5000	80	5500	39.9	26302	219.5	120	E	873442
BXRC-50G10K1-B-83-SE	5000	90	4750	55.5	26875	263.6	102	E	873482
BXRC-50G10K1-C-83-SE	5000	90	4750	74.3	35165	353.1	100	F	873486
BXRC-50G10K1-D-83-SE	5000	90	5500	39.9	22735	219.5	104	E	873490

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-57C10K1-B-83-SE	5700	70	4750	55.5	31442	263.6	119	E	873568
BXRC-57C10K1-C-83-SE	5700	70	4750	74.3	41141	353.1	117	E	873572
BXRC-57C10K1-D-83-SE	5700	70	5500	39.9	26599	219.5	121	E	873576
BXRC-57E10K1-B-83-SE	5700	80	4750	55.5	29861	263.6	113	E	873616
BXRC-57E10K1-C-83-SE	5700	80	4750	74.3	39073	353.1	111	E	873620
BXRC-57E10K1-D-83-SE	5700	80	5500	39.9	25262	219.5	115	E	873624
BXRC-65C10K1-B-83-SE	6500	70	4750	55.5	31442	263.6	119	E	873664
BXRC-65C10K1-C-83-SE	6500	70	4750	74.3	41141	353.1	117	E	873668
BXRC-65C10K1-D-83-SE	6500	70	5500	39.9	26599	219.5	121	E	873672
BXRC-65E10K1-B-83-SE	6500	80	4750	55.5	30212	263.6	115	E	873712
BXRC-65E10K1-C-83-SE	6500	80	4750	74.3	39532	353.1	112	E	873716
BXRC-65E10K1-D-83-SE	6500	80	5500	39.9	25559	219.5	116	E	873720
