Description

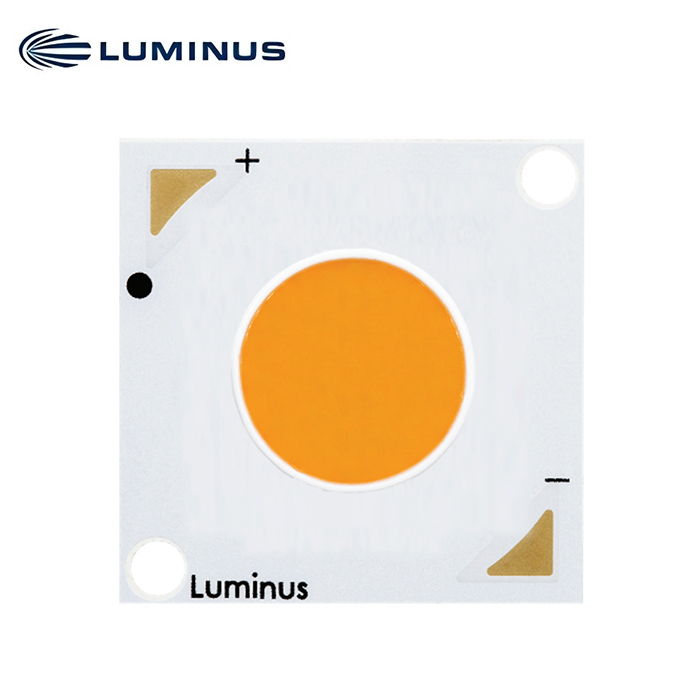

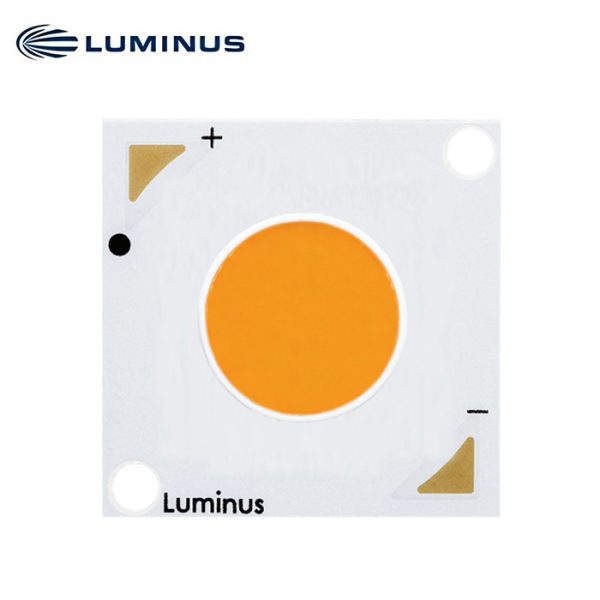

Generation 2 CHM-14-XH20 LED High Density White COB Array
Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 25,000lm, all major color temperatures and can deliver color rendering greater than 95 at 2700K and 3000K and R9 greater than 90. These breakthroughs allow illumination engineers and designers to develop beautifully lit spaces without sacrificing efficacy, brightness and overall quality.
Features
• High lumen output, density
• Over 8,000 lumens, @ 3000K, 80 CRI, Tj=85ºC
• Over 7,000 lumens per square centimeter of Light Emitting Surface (LES)
• Center beam candle power with 75mm reflector and 10º beam> 65W CDM lamp
• CCT 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• CRI in 80 for all colors, 70 and 90 for most other colors
• R9 up to 90 min. CRI 98 typical in 2700K, 3000K, 3500K and 4000K
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Package thermal conductivity more than twice the industry average
• Environmentally friendly: RoHS and REACH compliant
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Metal Halide Replacement
Color Temperature, CRI and R9 Values
| Color Temperatures | XX Value | CRI | R9 |
| 4000K, 5000K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2700K, 3000K, 3500K, 4000K, 5000K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >90 |
| 3500K, 4000K | >75 |
CHM-14-XH20 Part Numbers
The following tables describe products with typical flux and minimum flux measured at 1750mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Reference | Color
Rendering Index |
Ordering Part Number | |
| Typ. (85ºC) | Min.
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 3-step MacAdam Ellipse | |
| 2700K | 7,600 | 7,070 | 8,200 | 80 | CHM-14-27-80-36-XH20-F3-3 |
| 6,265 | 5,830 | 6,760 | 90 | CHM-14-27-90-36-XH20-F3-3 | |
| 5,990 | 5,570 | 6,465 | 95 | CHM-14-27-95-36-XH20-F3-3 | |
| 3000K | 8,030 | 7,470 | 8,665 | 80 | CHM-14-30-80-36-XH20-F3-3 |
| 6,755 | 6,285 | 7,290 | 90 | CHM-14-30-90-36-XH20-F3-3 | |
| 6,310 | 5,870 | 6,810 | 95 | CHM-14-30-95-36-XH20-F3-3 | |
| 3500K | 8,270 | 7,695 | 8,925 | 80 | CHM-14-35-80-36-XH20-F3-3 |
| 6,890 | 6,410 | 7,435 | 90 | CHM-14-35-90-36-XH20-F3-3 | |
| 6,590 | 6,130 | 7,110 | 95 | CHM-14-35-95-36-XH20-F3-3 | |
| 4000K | 8,985 | 8,360 | 9,695 | 70 | CHM-14-40-70-36-XH20-F3-3 |
| 8,380 | 7,795 | 9,040 | 80 | CHM-14-40-80-36-XH20-F3-3 | |
| 7,265 | 6,760 | 7,840 | 90 | CHM-14-40-90-36-XH20-F3-3 | |
| 6,745 | 6,275 | 7,280 | 95 | CHM-14-40-95-36-XH20-F3-3 | |
| CCT | Output Flux (lm) | Reference | Color
Rendering Index |
Part Number | ||
| Typ. (85ºC) | Min.
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 5-step MacAdam Ellipse | 3-step MacAdam Ellipse | |
| 5000K | 9,135 | 8,500 | 9,855 | 70 | CHM-14-50-70-36-XH20-F3-5 | CHM-14-50-70-36-XH20-F3-3 |
| 8,435 | 7,845 | 9,100 | 80 | CHM-14-50-80-36-XH20-F3-5 | CHM-14-50-80-36-XH20-F3-3 | |
| 7,305 | 6,795 | 7,880 | 90 | CHM-14-50-90-36-XH20-F3-5 | CHM-14-50-90-36-XH20-F3-3 | |
| 6500K | 9,145 | 8,505 | 9,865 | 70 | CHM-14-65-70-36-XH20-F3-5 | CHM-14-65-70-36-XH20-F3-3 |
| 8,405 | 7,820 | 9,070 | 80 | CHM-14-65-80-36-XH20-F3-5 | CHM-14-65-80-36-XH20-F3-3 | |
CHM-14-XH20 Operating Characteristics
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 1,750 | 2,625 | mA | |
| Forward Voltage3 | Vf | 35.2 | 37.1 | 39 | V |
| Power | 65 | 104 | W | ||
| Operating Case Temperature4 | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 13.5 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.18 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
