Description

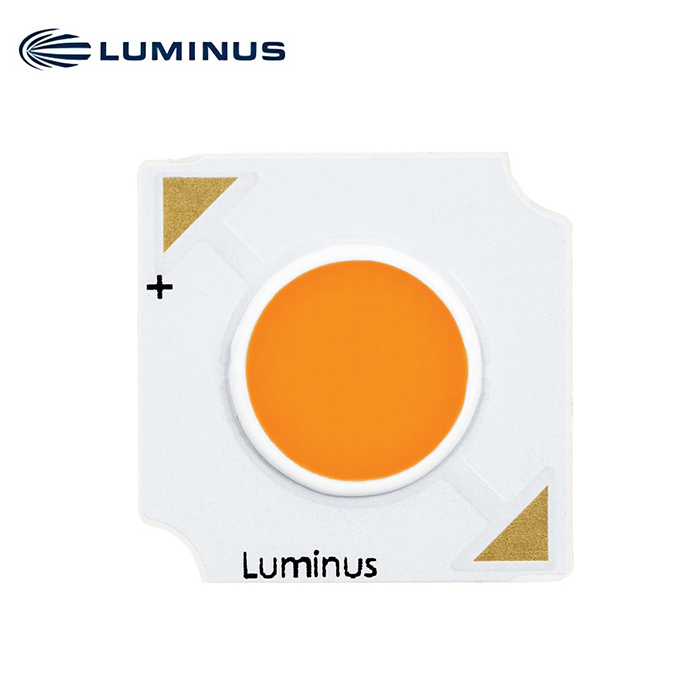

Generation 2 CHM-6-XH20 LED High Density White COB Array

Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 25,000lm, all major color temperatures and can deliver color rendering greater than 95 at 2700K and 3000K and R9 greater than 90. These breakthroughs allow illumination engineers and designers to develop beautifully lit spaces without sacrificing efficacy, brightness and overall quality.

Features
• High lumen output, density
• Over 1,500 lumens, @ 3000K, 80 CRI, 85ºC
• Over 4,700 lumens per square centimeter of Light Emitting Surface (LES)
• Complete CCT range 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• CRI Ra 80 or 90 min. in all colors (except 6500K)
• R9 up to 90 min. CRI 98 typical in 2700K, 3000K, 3500K and 4000K
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Package thermal conductivity more than twice the industry average
• Environmentally friendly: RoHS and REACH compliant

Applications
• Spotlights/Track Lights
• Downlights
• Replacement lamps
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Parking Lot and Area Lighting



Color Temperature, CRI and R9 Values



CHM-6-XH20 Part Numbers

The following tables describe products with typical flux and minimum flux measured at 480mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.





CHM-6 Operating Characteristics1

Optical and Electrical Characteristics
