Description

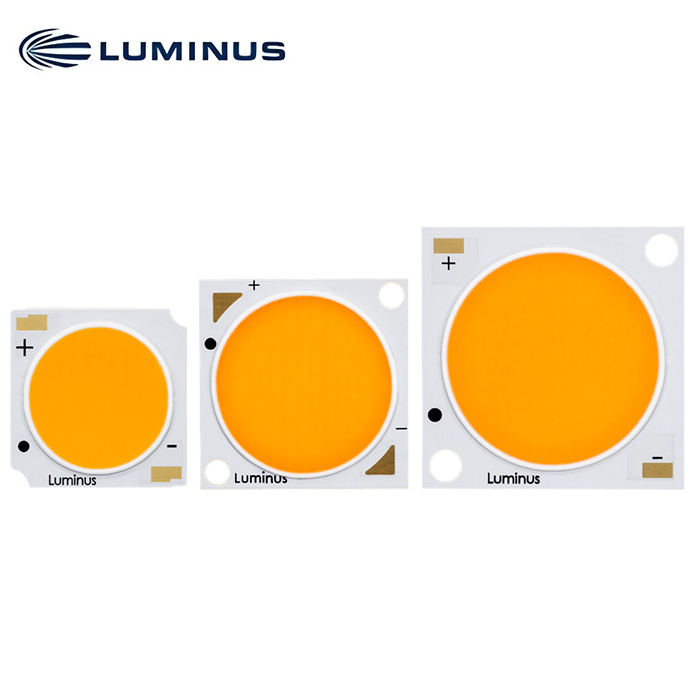

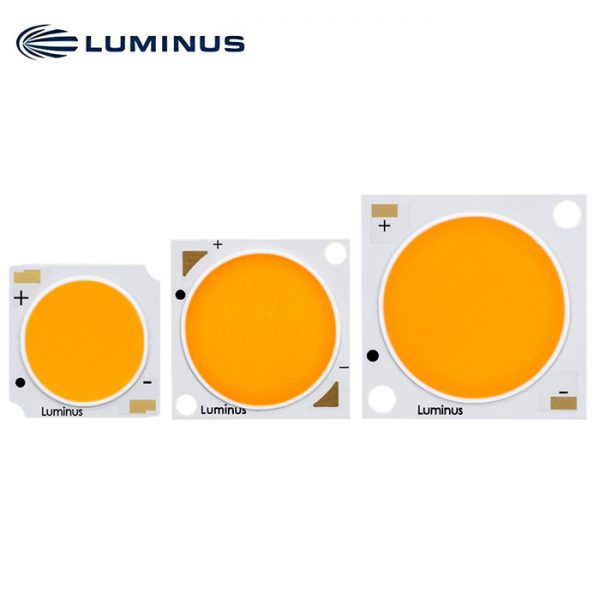

Generation 3 Custom Color COB Arrays LED Specialty Lighting
Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications The Custom Color LED series has been specially design for retail shop lighting where enhanced red coloring is a preferred lighting standard The selection covers a wide lumen range from less than 1,000lm to over 3,000lm Intense color saturation characterizes these specialty LEDs These breakthroughs allow illumination engineers and designers to develop beautifully lit spaces without sacrificing efficacy, brightness and overall quality
Features
• High Contast, Vivid Colors
• Red Meat Light, <1,000 lm to over 2,500lm @ Tj = 85ºC
• Marbeled Meat Light, <1,000 lm to over 3,500lm @ Tj = 85ºC
• Extemely high Gamut Area Index
• Typical power range from ~15W to over 50W
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Package thermal conductivity more than the industry average
• Environmentally friendly: RoHS and REACH compliant
• UL Recognized, File # E465703
Applications
• Grocery Retail Specialty Lighting
• Spotlights/Track Lights
• Red Meat Lighting
• Marbled Meat Lighting
Custom Color Series Part Numbers
The following tables describe products with typical flux and minimum flux measured at typical currents and specified at 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature.
| Output Flux (lm) | Description | LES Diam-
eter (mm) |
Typ. Cur-
rent (mA) |
Ordering Part Number | ||
| Typ. (85ºC) | Min.
(85ºC) |
Typ.
(calculated) (25ºC) |
3 SDCM | |||
| 565 | 530 | 620 | Red Meat | 9.6 | 240 | CLM-9-18-70-36-AC38-F4-3 |
| 715 | 670 | 790 | Marbled Meat | CLM-9-30-70-36-AC38-F4-3 | ||
| 760 | 710 | 815 | Red Meat | 9.6 | 360 | CHM-9-18-70-36-XD28-F4-3 |
| 985 | 920 | 1,055 | Marbled Meat | CHM-9-30-70-36-XD28-F4-3 | ||
| 1,185 | 1,100 | 1,300 | Red Meat | 14.3 | 500 | CLM-14-18-70-36-AC38-F4-3 |
| 1,500 | 1,395 | 1,650 | Marbled Meat | CLM-14-30-70-36-AC38-F4-3 | ||
| 1,640 | 1,525 | 1,805 | Red Meat | 14.3 | 720 | CXM-14-18-70-36-AC38-F4-3 |
| 2,135 | 1,985 | 2,345 | Marbled Meat | CXM-14-30-70-36-AC38-F4-3 | ||
| 2,120 | 1,970 | 2,330 | Red Meat | 17.5 | 900 | CXM-18-18-70-36-AA38-F4-3 |
| 2,655 | 2,470 | 2,920 | Marbled Meat | CXM-18-30-70-36-AA38-F4-3 | ||
| 2,565 | 2,385 | 2,820 | Red Meat | 22 | 1,100 | CLM-22-18-70-36-AC38-F4-3 |
| 3,320 | 3,085 | 3,650 | Marbled Meat | CLM-22-30-70-36-AC38-F4-3 | ||
CLM-9 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | |
| Forward Current2 | If | 240 | 540 | mA | ||
| Forward Voltage3 | Vf | 31 | 33.8 | 37 | V | |
| Power | 8.16 | 20 | W | |||
| Operating Case Temperature4 | T c | 105 | ºC | |||
| Light Emitting Surface Diameter | LES | 9.6 | mm | |||
| Thermal Resistance (junction-to-case) | Θjc | 0.65 | ºC/W | |||
| Junction Temperature | Tj | 140 | ºC | |||
| Viewing Angle | 120 | Degree | ||||
| CHM-9 Operating Characteristics1 | ||||||
| Optical and Electrical Characteristics | ||||||
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | |
| Forward Current2 | If | 360 | 960 | mA | ||
| Forward Voltage3 | Vf | 31 | 34 | 37 | V | |
| Power | 12.2 | 37.4 | W | |||
| Operating Case Temperature4 | T c | 105 | ºC | |||
| Light Emitting Surface Diameter | LES | 9.6 | mm | |||
| Thermal Resistance (junction-to-case) | Θjc | 0.85 | ºC/W | |||
| Junction Temperature | Tj | 140 | ºC | |||
| Viewing Angle | 120 | Degree | ||||
CLM-14 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 500 | 1,260 | mA | |
| Forward Voltage3 | Vf | 31 | 33.8 | 37 | V |
| Power | 17 | 47 | W | ||
| Operating Case Temperature4 | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 14.3 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.31 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
CXM-14 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 720 | 1,440 | mA | |
| Forward Voltage3 | Vf | 31 | 34 | 37 | V |
| Power | 24.5 | 54 | W | ||
| Operating Case Temperature | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 14.3 | mm | ||
| Thermal Resisitance (junction-to-case) | Θjc | 0.27 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
CXM-18 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 900 | 1,800 | mA | |
| Forward Voltage3 | Vf | 31 | 34 | 37 | V |
| Power | 30.6 | 64 | W | ||
| Operating Case Temperature4 | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 17.5 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.21 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
CLM-22 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 1,100 | 2,200 | mA | |
| Forward Voltage3 | Vf | 31 | 33.8 | 37 | V |
| Power | 37.2 | 82 | W | ||
| Operating Case Temperature4 | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 22 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.19 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
