Description

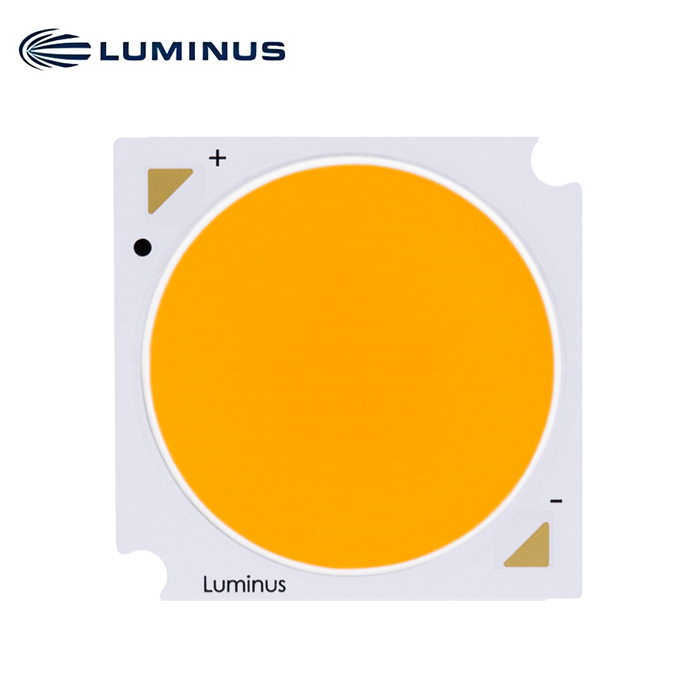

Generation 3 CVM Studio COB Arrays LED Entertainment Lighting
Features
• High lumen output
• Over 17,000 lm @ 3150K, 85ºC
• Over 18,000 lm @ 5600K, 85ºC
• 3150K and 5600K CCT
• 95 CRI minimum
• 90 TLCI minimum
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL certified, file # E465703
Applications
• TV Studio
• Film Production
• Still Photography
• Stage/Set Lights
• Architectural/Hospitality
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at typical current 2A and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 3150K | 12,140 | 11,290 | 12,990 | 95 | CVM-27-31-95-54-AB30-F4-3 | CVM-27-31-95-54-FB30-F4-2 |
| 5600K | 12,900 | 11,995 | 13,805 | 95 | CVM-27-56-95-54-AB32-F4-3 | CVM-27-56-95-54-FB32-F4-2 |
CVM-27 Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 2.0 | 3.0 | A | |
| Forward Voltage3 | Vf | 49.0 | 52.3 | 56.0 | V |
| Power | 104.6 | 164 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 26.5 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | ºC/W | |||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
