Description

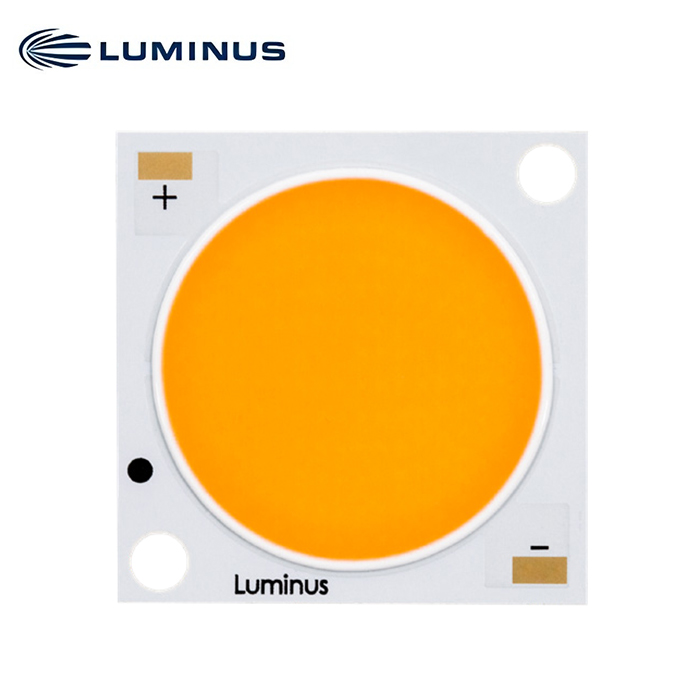

Generation 4 CLM-22 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 4,970 lm, 141LPW @ 3000K, 90CRI, Tj = 85ºC
• Over 6,360 lm, 180 LPW @ 5000K, 70CRI, Tj = 85ºC
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• AccuWhite High Color Rendering, 97CRI Typ. Most CCTs
• 3 SDCM color binning standard, 2 SDCM binning available
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL recognized, file # E465703
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2200K, 3,000K, 4000K, 5000K, 5700K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K | 80 | >80 | >0 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 1,050mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2200K | 4,420 | 4,110 | 4,860 | 70 | CLM-22-22-70-36-AC40-F5-3 | CLM-22-22-70-36-AC40-F5-2 |
| 2400K | 3,735 | 3,475 | 4,110 | 90 | CLM-22-24-90-36-AC40-F5-3 | CLM-22-24-90-36-AC40-F5-2 |
| 2700K | 5,760 | 5,365 | 6,335 | 80 | CLM-22-27-80-36-AC40-F5-3 | CLM-22-27-80-36-AC40-F5-2 |
| 4,760 | 4,425 | 5,235 | 90 | CLM-22-27-90-36-AC40-F5-3 | CLM-22-27-90-36-AC40-F5-2 | |
| 4,115 | 3,825 | 4,525 | 95 | CLM-22-27-95-36-AC40-F5-3 | CLM-22-27-95-36-AC40-F5-2 | |
| 3000K | 5,965 | 5,545 | 6,560 | 70 | CLM-22-30-70-36-AC40-F5-3 | CLM-22-30-70-36-AC40-F5-2 |
| 5,865 | 5,455 | 6,450 | 80 | CLM-22-30-80-36-AC40-F5-3 | CLM-22-30-80-36-AC40-F5-2 | |
| 4,970 | 4,620 | 5,465 | 90 | CLM-22-30-90-36-AC40-F5-3 | CLM-22-30-90-36-AC40-F5-2 | |
| 4,280 | 3,980 | 4,710 | 95 | CLM-22-30-95-36-AC40-F5-3 | CLM-22-30-95-36-AC40-F5-2 | |
| 3500K | 5,965 | 5,545 | 6,560 | 80 | CLM-22-35-80-36-AC40-F5-3 | CLM-22-35-80-36-AC40-F5-2 |
| 5,070 | 4,715 | 5,575 | 90 | CLM-22-35-90-36-AC40-F5-3 | CLM-22-35-90-36-AC40-F5-2 | |
| 4,520 | 4,205 | 4,975 | 95 | CLM-22-35-95-36-AC40-F5-3 | CLM-22-35-95-36-AC40-F5-2 | |
| 4000K | 6,215 | 5,780 | 6,835 | 70 | CLM-22-40-70-36-AC40-F5-3 | CLM-22-40-70-36-AC40-F5-2 |
| 6,005 | 5,585 | 6,605 | 80 | CLM-22-40-80-36-AC40-F5-3 | CLM-22-40-80-36-AC40-F5-2 | |
| 5,220 | 4,855 | 5,740 | 90 | CLM-22-40-90-36-AC40-F5-3 | CLM-22-40-90-36-AC40-F5-2 | |
| 4,730 | 4,400 | 5,205 | 95 | CLM-22-40-95-36-AC40-F5-3 | CLM-22-40-95-36-AC40-F5-2 | |
| 5000K | 6,360 | 5,915 | 6,995 | 70 | CLM-22-50-70-36-AC40-F5-3 | |
| 6,040 | 5,615 | 6,645 | 80 | CLM-22-50-80-36-AC40-F5-3 | ||
| 5,465 | 5,080 | 6,010 | 90 | CLM-22-50-90-36-AC40-F5-3 | ||
| 4,715 | 4,385 | 5,185 | 95 | CLM-22-50-95-36-AC40-F5-3 | ||
| 5700K | 6,310 | 5,870 | 6,940 | 70 | CLM-22-57-70-36-AC40-F5-3 | |
| 5,965 | 5,545 | 6,560 | 80 | CLM-22-57-80-36-AC40-F5-3 | ||
| 6500K | 5,915 | 5,500 | 6,505 | 70 | CLM-22-65-70-36-AC40-F5-3 | |
| 5,765 | 5,360 | 6,340 | 80 | CLM-22-65-80-36-AC40-F5-3 | ||
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current1,2 | If | 1,050 | 3,500 | mA | |
| Forward Voltage3 | Vf | 31.0 | 33.5 | 37.0 | V |
| Power | 35.2 | 131.3 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 22.0 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.14 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
