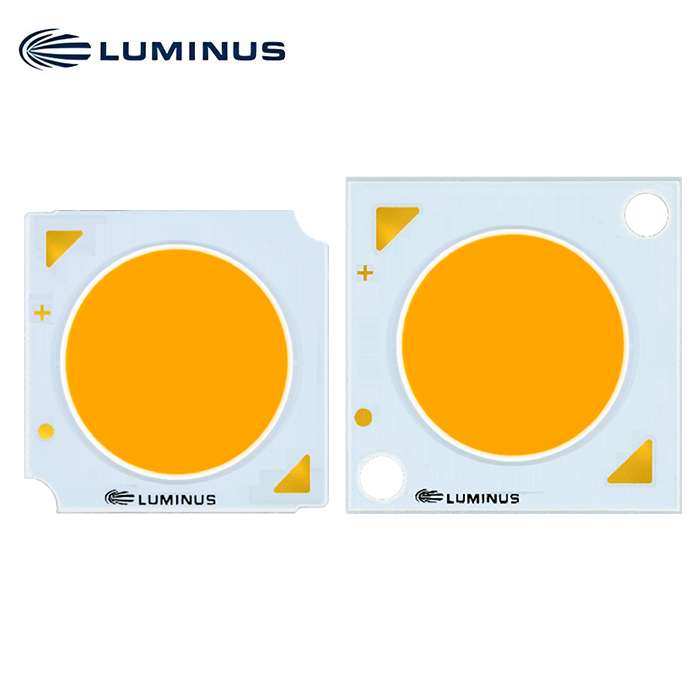

Generation 4 CLM-9 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 1,110 lm, 134 LPW @ 3000K, 90CRI, Tj = 85ºC
• Over 1,420 lm, 171 LPW @ 5000K, 70CRI, Tj = 85ºC
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• AccuWhite High Color Rendering, 97CRI Typ. Most CCTs
• 3 SDCM color binning standard, 2 SDCM binning available
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL recognized, file # E465703
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 4000K, 5000K, 5700K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K | 80 | >80 | >0 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers (AC40)
The following tables describe products with typical flux and minimum flux measured at 250mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 835 | 775 | 920 | 90 | CLM-9-24-90-36-AC40-F5-3 | CLM-9-24-90-36-AC40-F5-2 |
| 2700K | 1325 | 1230 | 1455 | 80 | CLM-9-27-80-36-AC40-F5-3 | CLM-9-27-80-36-AC40-F5-2 |
| 1060 | 985 | 1165 | 90 | CLM-9-27-90-36-AC40-F5-3 | CLM-9-27-90-36-AC40-F5-2 | |
| 920 | 855 | 1010 | 95 | CLM-9-27-95-36-AC40-F5-3 | CLM-9-27-95-36-AC40-F5-2 | |
| 3000K | 1310 | 1220 | 1440 | 80 | CLM-9-30-80-36-AC40-F5-3 | CLM-9-30-80-36-AC40-F5-2 |
| 1110 | 1030 | 1220 | 90 | CLM-9-30-90-36-AC40-F5-3 | CLM-9-30-90-36-AC40-F5-2 | |
| 955 | 885 | 1050 | 95 | CLM-9-30-95-36-AC40-F5-3 | CLM-9-30-95-36-AC40-F5-2 | |
| 3500K | 1335 | 1240 | 1470 | 80 | CLM-9-35-80-36-AC40-F5-3 | CLM-9-35-80-36-AC40-F5-2 |
| 1105 | 1025 | 1215 | 90 | CLM-9-35-90-36-AC40-F5-3 | CLM-9-35-90-36-AC40-F5-2 | |
| 1010 | 940 | 1110 | 95 | CLM-9-35-95-36-AC40-F5-3 | CLM-9-35-95-36-AC40-F5-2 | |
| 4000K | 1385 | 1285 | 1525 | 70 | CLM-9-40-70-36-AC40-F5-3 | CLM-9-40-70-36-AC40-F5-2 |
| 1320 | 1225 | 1450 | 80 | CLM-9-40-80-36-AC40-F5-3 | CLM-9-40-80-36-AC40-F5-2 | |
| 1170 | 1085 | 1285 | 90 | CLM-9-40-90-36-AC40-F5-3 | CLM-9-40-90-36-AC40-F5-2 | |
| 1055 | 980 | 1160 | 95 | CLM-9-40-95-36-AC40-F5-3 | CLM-9-40-95-36-AC40-F5-2 | |
| 5000K | 1420 | 1320 | 1560 | 70 | CLM-9-50-70-36-AC40-F5-3 | |
| 1350 | 1255 | 1485 | 80 | CLM-9-50-80-36-AC40-F5-3 | ||
| 1220 | 1134 | 1340 | 90 | CLM-9-50-90-36-AC40-F5-3 | ||
| 1050 | 975 | 1155 | 95 | CLM-9-50-95-36-AC40-F5-3 | ||
| 5700K | 1420 | 1320 | 1560 | 70 | CLM-9-57-70-36-AC40-F5-3 | |
| 1330 | 1235 | 1465 | 80 | CLM-9-57-80-36-AC40-F5-3 | ||
| 6500K | 1320 | 1225 | 1450 | 70 | CLM-9-65-70-36-AC40-F5-3 | |
| 1290 | 1200 | 1420 | 80 | CLM-9-65-80-36-AC40-F5-3 | ||
Ordering Part Numbers (AC40)
The following tables describe products with typical flux and minimum flux measured at 500mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 835 | 775 | 920 | 90 | CLM-9-24-90-18-AC40-F5-3 | CLM-9-24-90-18-AC40-F5-2 |
| 2700K | 1325 | 1230 | 1455 | 80 | CLM-9-27-80-18-AC40-F5-3 | CLM-9-27-80-18-AC40-F5-2 |
| 1060 | 985 | 1165 | 90 | CLM-9-27-90-18-AC40-F5-3 | CLM-9-27-90-18-AC40-F5-2 | |
| 920 | 855 | 1010 | 95 | CLM-9-27-95-18-AC40-F5-3 | CLM-9-27-95-18-AC40-F5-2 | |
| 3000K | 1310 | 1220 | 1440 | 80 | CLM-9-30-80-18-AC40-F5-3 | CLM-9-30-80-18-AC40-F5-2 |
| 1110 | 1030 | 1220 | 90 | CLM-9-30-90-18-AC40-F5-3 | CLM-9-30-90-18-AC40-F5-2 | |
| 955 | 885 | 1050 | 95 | CLM-9-30-95-18-AC40-F5-3 | CLM-9-30-95-18-AC40-F5-2 | |
| 3500K | 1335 | 1240 | 1470 | 80 | CLM-9-35-80-18-AC40-F5-3 | CLM-9-35-80-18-AC40-F5-2 |
| 1105 | 1025 | 1215 | 90 | CLM-9-35-90-18-AC40-F5-3 | CLM-9-35-90-18-AC40-F5-2 | |
| 1010 | 940 | 1110 | 95 | CLM-9-35-95-18-AC40-F5-3 | CLM-9-35-95-18-AC40-F5-2 | |
| 4000K | 1385 | 1285 | 1525 | 70 | CLM-9-40-70-18-AC40-F5-3 | CLM-9-40-70-18-AC40-F5-2 |
| 1320 | 1225 | 1450 | 80 | CLM-9-40-80-18-AC40-F5-3 | CLM-9-40-80-18-AC40-F5-2 | |
| 1170 | 1085 | 1285 | 90 | CLM-9-40-90-18-AC40-F5-3 | CLM-9-40-90-18-AC40-F5-2 | |
| 1055 | 980 | 1160 | 95 | CLM-9-40-95-18-AC40-F5-3 | CLM-9-40-95-18-AC40-F5-2 | |
| 5000K | 1420 | 1320 | 1560 | 70 | CLM-9-50-70-18-AC40-F5-3 | |
| 1350 | 1255 | 1485 | 80 | CLM-9-50-80-18-AC40-F5-3 | ||
| 1220 | 1134 | 1340 | 90 | CLM-9-50-90-18-AC40-F5-3 | ||
| 1050 | 975 | 1155 | 95 | CLM-9-50-95-18-AC40-F5-3 | ||
| 5700K | 1420 | 1320 | 1560 | 70 | CLM-9-57-70-18-AC40-F5-3 | |
| 1330 | 1235 | 1465 | 80 | CLM-9-57-80-18-AC40-F5-3 | ||
| 6500K | 1320 | 1225 | 1450 | 70 | CLM-9-65-70-18-AC40-F5-3 | |
| 1290 | 1200 | 1420 | 80 | CLM-9-65-80-18-AC40-F5-3 | ||
Ordering Part Numbers (AA40)
The following tables describe products with typical flux and minimum flux measured at 250mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 835 | 775 | 920 | 90 | CLM-9-24-90-36-AA40-F5-3 | CLM-9-24-90-36-AA40-F5-2 |
| 2700K | 1325 | 1230 | 1455 | 80 | CLM-9-27-80-36-AA40-F5-3 | CLM-9-27-80-36-AA40-F5-2 |
| 1060 | 985 | 1165 | 90 | CLM-9-27-90-36-AA40-F5-3 | CLM-9-27-90-36-AA40-F5-2 | |
| 920 | 855 | 1010 | 95 | CLM-9-27-95-36-AA40-F5-3 | CLM-9-27-95-36-AA40-F5-2 | |
| 3000K | 1310 | 1220 | 1440 | 80 | CLM-9-30-80-36-AA40-F5-3 | CLM-9-30-80-36-AA40-F5-2 |
| 1110 | 1030 | 1220 | 90 | CLM-9-30-90-36-AA40-F5-3 | CLM-9-30-90-36-AA40-F5-2 | |
| 955 | 885 | 1050 | 95 | CLM-9-30-95-36-AA40-F5-3 | CLM-9-30-95-36-AA40-F5-2 | |
| 3500K | 1335 | 1240 | 1470 | 80 | CLM-9-35-80-36-AA40-F5-3 | CLM-9-35-80-36-AA40-F5-2 |
| 1105 | 1025 | 1215 | 90 | CLM-9-35-90-36-AA40-F5-3 | CLM-9-35-90-36-AA40-F5-2 | |
| 1010 | 940 | 1110 | 95 | CLM-9-35-95-36-AA40-F5-3 | CLM-9-35-95-36-AA40-F5-2 | |
| 4000K | 1385 | 1285 | 1525 | 70 | CLM-9-40-70-36-AA40-F5-3 | CLM-9-40-70-36-AA40-F5-2 |
| 1320 | 1225 | 1450 | 80 | CLM-9-40-80-36-AA40-F5-3 | CLM-9-40-80-36-AA40-F5-2 | |
| 1170 | 1085 | 1285 | 90 | CLM-9-40-90-36-AA40-F5-3 | CLM-9-40-90-36-AA40-F5-2 | |
| 1055 | 980 | 1160 | 95 | CLM-9-40-95-36-AA40-F5-3 | CLM-9-40-95-36-AA40-F5-2 | |
| 5000K | 1420 | 1320 | 1560 | 70 | CLM-9-50-70-36-AA40-F5-3 | |
| 1350 | 1255 | 1485 | 80 | CLM-9-50-80-36-AA40-F5-3 | ||
| 1220 | 1134 | 1340 | 90 | CLM-9-50-90-36-AA40-F5-3 | ||
| 1050 | 975 | 1155 | 95 | CLM-9-50-95-36-AA40-F5-3 | ||
| 5700K | 1420 | 1320 | 1560 | 70 | CLM-9-57-70-36-AA40-F5-3 | |
| 1330 | 1235 | 1465 | 80 | CLM-9-57-80-36-AA40-F5-3 | ||
| 6500K | 1320 | 1225 | 1450 | 70 | CLM-9-65-70-36-AA40-F5-3 | |
| 1290 | 1200 | 1420 | 80 | CLM-9-65-80-36-AA40-F5-3 | ||
Numbers (AA40)
The following tables describe products with typical flux and minimum flux measured at 500mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 835 | 775 | 920 | 90 | CLM-9-24-90-18-AA40-F5-3 | CLM-9-24-90-18-AA40-F5-2 |
| 2700K | 1325 | 1230 | 1455 | 80 | CLM-9-27-80-18-AA40-F5-3 | CLM-9-27-80-18-AA40-F5-2 |
| 1060 | 985 | 1165 | 90 | CLM-9-27-90-18-AA40-F5-3 | CLM-9-27-90-18-AA40-F5-2 | |
| 920 | 855 | 1010 | 95 | CLM-9-27-95-18-AA40-F5-3 | CLM-9-27-95-18-AA40-F5-2 | |
| 3000K | 1310 | 1220 | 1440 | 80 | CLM-9-30-80-18-AA40-F5-3 | CLM-9-30-80-18-AA40-F5-2 |
| 1110 | 1030 | 1220 | 90 | CLM-9-30-90-18-AA40-F5-3 | CLM-9-30-90-18-AA40-F5-2 | |
| 955 | 885 | 1050 | 95 | CLM-9-30-95-18-AA40-F5-3 | CLM-9-30-95-18-AA40-F5-2 | |
| 3500K | 1335 | 1240 | 1470 | 80 | CLM-9-35-80-18-AA40-F5-3 | CLM-9-35-80-18-AA40-F5-2 |
| 1105 | 1025 | 1215 | 90 | CLM-9-35-90-18-AA40-F5-3 | CLM-9-35-90-18-AA40-F5-2 | |
| 1010 | 940 | 1110 | 95 | CLM-9-35-95-18-AA40-F5-3 | CLM-9-35-95-18-AA40-F5-2 | |
| 4000K | 1385 | 1285 | 1525 | 70 | CLM-9-40-70-18-AA40-F5-3 | CLM-9-40-70-18-AA40-F5-2 |
| 1320 | 1225 | 1450 | 80 | CLM-9-40-80-18-AA40-F5-3 | CLM-9-40-80-18-AA40-F5-2 | |
| 1170 | 1085 | 1285 | 90 | CLM-9-40-90-18-AA40-F5-3 | CLM-9-40-90-18-AA40-F5-2 | |
| 1055 | 980 | 1160 | 95 | CLM-9-40-95-18-AA40-F5-3 | CLM-9-40-95-18-AA40-F5-2 | |
| 5000K | 1420 | 1320 | 1560 | 70 | CLM-9-50-70-18-AA40-F5-3 | |
| 1350 | 1255 | 1485 | 80 | CLM-9-50-80-18-AA40-F5-3 | ||
| 1220 | 1134 | 1340 | 90 | CLM-9-50-90-18-AA40-F5-3 | ||
| 1050 | 975 | 1155 | 95 | CLM-9-50-95-18-AA40-F5-3 | ||
| 5700K | 1420 | 1320 | 1560 | 70 | CLM-9-57-70-18-AA40-F5-3 | |
| 1330 | 1235 | 1465 | 80 | CLM-9-57-80-18-AA40-F5-3 | ||
| 6500K | 1320 | 1225 | 1450 | 70 | CLM-9-65-70-18-AA40-F5-3 | |
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 500 | 1800 | mA | |
| Forward Voltage3 | Vf | 15.5 | 16.8 | 18.5 | V |
| Power | 4.2 | 17.2 | W |
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 250 | 900 | mA | |
| Forward Voltage3 | Vf | 31.0 | 33.5 | 37.0 | V |
| Power | 8.3 | 34.4 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 9.8 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.50 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
