Description

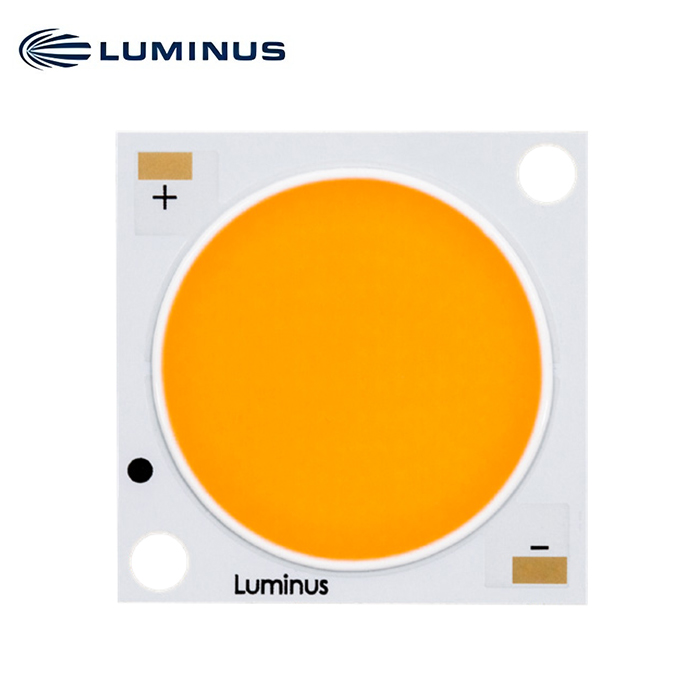

Generation 4 CXM-32 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 16,405 lm, 133LPW @ 3000K, 90CRI, Tj = 85ºC
• Over 21,040 lm, 171 LPW @ 5000K, 70CRI, Tj = 85ºC
• CCT range 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• AccuWhite High Color Rendering, 97CRI Typ. Most CCTs
• 3 SDCM color binning standard, 2 SDCM binning available
• Excellent optical emission uniformitvy and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL recognized, file # E465703
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2200K, 3,000K, 4000K, 5000K, 5700K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K | 80 | >80 | >0 |
| 2700K, 3000K, 3500K, 4000K, 5000K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 2,400mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2200K | 17,260 | 16,050 | 18,470 | 70 | CXM-32-22-70-54-AC40-F5-3 | CXM-32-22-70-54-AC40-F5-2 |
| 2700K | 18,830 | 17,510 | 20,150 | 80 | CXM-32-27-80-54-AC40-F5-3 | CXM-32-27-80-54-AC40-F5-2 |
| 15,475 | 14,390 | 16,560 | 90 | CXM-32-27-90-54-AC40-F5-3 | CXM-32-27-90-54-AC40-F5-2 | |
| 14,480 | 13,465 | 15,495 | 95 | CXM-32-27-95-54-AC40-F5-3 | CXM-32-27-95-54-AC40-F5-2 | |
| 3000K | 20,005 | 18,605 | 21,405 | 70 | CXM-32-30-70-54-AC40-F5-3 | CXM-32-30-70-54-AC40-F5-2 |
| 19,400 | 18,040 | 20,760 | 80 | CXM-32-30-80-54-AC40-F5-3 | CXM-32-30-80-54-AC40-F5-2 | |
| 16,405 | 15,255 | 17,555 | 90 | CXM-32-30-90-54-AC40-F5-3 | CXM-32-30-90-54-AC40-F5-2 | |
| 15,120 | 14,060 | 16,180 | 95 | CXM-32-30-95-54-AC40-F5-3 | CXM-32-30-95-54-AC40-F5-2 | |
| 3500K | 20,150 | 18,740 | 21,560 | 80 | CXM-32-35-80-54-AC40-F5-3 | CXM-32-35-80-54-AC40-F5-2 |
| 17,120 | 15,920 | 18,320 | 90 | CXM-32-35-90-54-AC40-F5-3 | CXM-32-35-90-54-AC40-F5-2 | |
| 16,260 | 15,120 | 17,400 | 95 | CXM-32-35-95-54-AC40-F5-3 | CXM-32-35-95-54-AC40-F5-2 | |
| 4000K | 20,825 | 19,365 | 22,285 | 70 | CXM-32-40-70-54-AC40-F5-3 | CXM-32-40-70-54-AC40-F5-2 |
| 20,505 | 19,070 | 21,940 | 80 | CXM-32-40-80-54-AC40-F5-3 | CXM-32-40-80-54-AC40-F5-2 | |
| 17,330 | 16,115 | 18,545 | 90 | CXM-32-40-90-54-AC40-F5-3 | CXM-32-40-90-54-AC40-F5-2 | |
| 15,765 | 14,660 | 16,870 | 95 | CXM-32-40-95-54-AC40-F5-3 | CXM-32-40-95-54-AC40-F5-2 | |
| 5000K | 21,040 | 19,565 | 22,515 | 70 | CXM-32-50-70-54-AC40-F5-3 | |
| 20,755 | 19,300 | 22,210 | 80 | CXM-32-50-80-54-AC40-F5-3 | ||
| 17,475 | 16,250 | 18,700 | 90 | CXM-32-50-90-54-AC40-F5-3 | ||
| 15,300 | 14,230 | 16,370 | 95 | CXM-32-50-95-54-AC40-F5-3 | ||
| 5700K | 21,040 | 19,565 | 22,515 | 70 | CXM-32-57-70-54-AC40-F5-3 | |
| 20,470 | 19,035 | 21,905 | 80 | CXM-32-57-80-54-AC40-F5-3 | ||
| 6500K | 20,900 | 19,435 | 22,365 | 70 | CXM-32-65-70-54-AC40-F5-3 | |
| 20,290 | 18,870 | 21,710 | 80 | CXM-32-65-80-54-AC40-F5-3 | ||
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 2,400 | 5,000 | mA | |
| Forward Voltage3 | Vf | 48.0 | 50.8 | 55.0 | V |
| Power | 122.9 | 284.8 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 32.8 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | ºC/W | |||
| Junction Temperature | Tj | 150 | ºC | ||
| Viewing Angle | 120 | Degree |
