Description

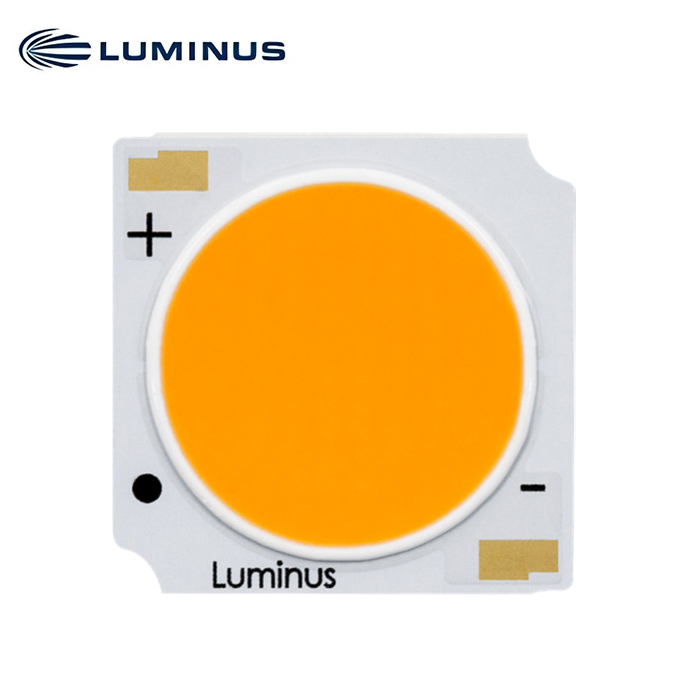

Generation 6 CGM-14 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 4285 lm, 143 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 1900K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
Ordering Part Numbers -TC60
The following tables describe products with typical flux and minimum flux measured at 900 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 3525 | 3275 | 3875 | CGM-14-22-90-36-TC60-F7-3 | CGM-14-22-90-36-TC60-F7-2 |
| 90 | 2400K | 3830 | 3560 | 4210 | CGM-14-24-90-36-TC60-F7-3 | CGM-14-24-90-36-TC60-F7-2 |
| 80 | 2700K | 4650 | 4325 | 5115 | CGM-14-27-80-36-TC60-F7-3 | CGM-14-27-80-36-TC60-F7-2 |
| 90 | 4130 | 3840 | 4545 | CGM-14-27-90-36-TC60-F7-3 | CGM-14-27-90-36-TC60-F7-2 | |
| 95 | 3460 | 3220 | 3805 | CGM-14-27-95-36-TC60-F7-3 | CGM-14-27-95-36-TC60-F7-2 | |
| 80 | 3000K | 4910 | 4565 | 5400 | CGM-14-30-80-36-TC60-F7-3 | CGM-14-30-80-36-TC60-F7-2 |
| 90 | 4285 | 3985 | 4715 | CGM-14-30-90-36-TC60-F7-3 | CGM-14-30-90-36-TC60-F7-2 | |
| 95 | 3650 | 3395 | 4015 | CGM-14-30-95-36-TC60-F7-3 | CGM-14-30-95-36-TC60-F7-2 | |
| 80 | 3500K | 5000 | 4650 | 5500 | CGM-14-35-80-36-TC60-F7-3 | CGM-14-35-80-36-TC60-F7-2 |
| 90 | 4395 | 4085 | 4830 | CGM-14-35-90-36-TC60-F7-3 | CGM-14-35-90-36-TC60-F7-2 | |
| 95 | 3810 | 3545 | 4195 | CGM-14-35-95-36-TC60-F7-3 | CGM-14-35-95-36-TC60-F7-2 | |
| 80 | 4000K | 5110 | 4755 | 5620 | CGM-14-40-80-36-TC60-F7-3 | CGM-14-40-80-36-TC60-F7-2 |
| 90 | 4495 | 4180 | 4940 | CGM-14-40-90-36-TC60-F7-3 | CGM-14-40-90-36-TC60-F7-2 | |
| 95 | 4020 | 3735 | 4420 | CGM-14-40-95-36-TC60-F7-3 | CGM-14-40-95-36-TC60-F7-2 | |
| 80 | 5000K | 5195 | 4830 | 5710 | CGM-14-50-80-36-TC60-F7-3 | CGM-14-50-80-36-TC60-F7-2 |
| 90 | 4485 | 4170 | 4930 | CGM-14-50-90-36-TC60-F7-3 | CGM-14-50-90-36-TC60-F7-2 | |
| 95 | 4210 | 3920 | 4635 | CGM-14-50-95-36-TC60-F7-3 | CGM-14-50-95-36-TC60-F7-2 | |
| 80 | 6500K | 5035 | 4685 | 5540 | CGM-14-65-80-36-TC60-F7-3 | CGM-14-65-80-36-TC60-F7-2 |
| 90 | 4500 | 4185 | 4950 | CGM-14-65-90-36-TC60-F7-3 | CGM-14-65-90-36-TC60-F7-2 | |
Ordering Part Numbers – TC62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 900 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 3930 | 3655 | 4325 | CGM-14-27-90-36-TC62-F7-3 | CGM-14-27-90-36-TC62-F7-2 |
| 3000K | 4170 | 3880 | 4590 | CGM-14-30-90-36-TC62-F7-3 | CGM-14-30-90-36-TC62-F7-2 | |
| 3500K | 4275 | 3975 | 4705 | CGM-14-35-90-36-TC62-F7-3 | CGM-14-35-90-36-TC62-F7-2 | |
Ordering Part Numbers – TC68 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 900 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 70 | 1900K | 2905 | 2700 | 3195 | CGM-14-19-70-36-TC68-F7-3 | CGM-14-19-70-36-TC68-F7-2 |
| 3000K | 3050 | 2835 | 3355 | CGM-14-30-70-36-TC68-F7-3 | CGM-14-30-70-36-TC68-F7-2 | |
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | R91 |
| 1900K, 3000K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Absolute Maximum Ratings
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 900 | mA |
| Maximum | If max | 2200 | ||
| Power Dissipation | Typical | Pd typ | 30 | W |
| Maximum | Pd max | 83.1 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
Characteristics1,2,3
| Parameter | Symbol | Value | Unit | |
| Light Emitting Surface Diameter | LES | 14.5 | mm | |
| Forward Voltage | Minimum | Vf min | 31.6 | V |
| Typical | Vf typ | 33.4 | ||
| Maximum | Vf max | 37.8 | ||
| Thermal Resistance (junction-to-case) | Rth J-C | 0.25 | °C/W | |
| Viewing Angle | 2θ1/2 | 120 | ° | |
