Description

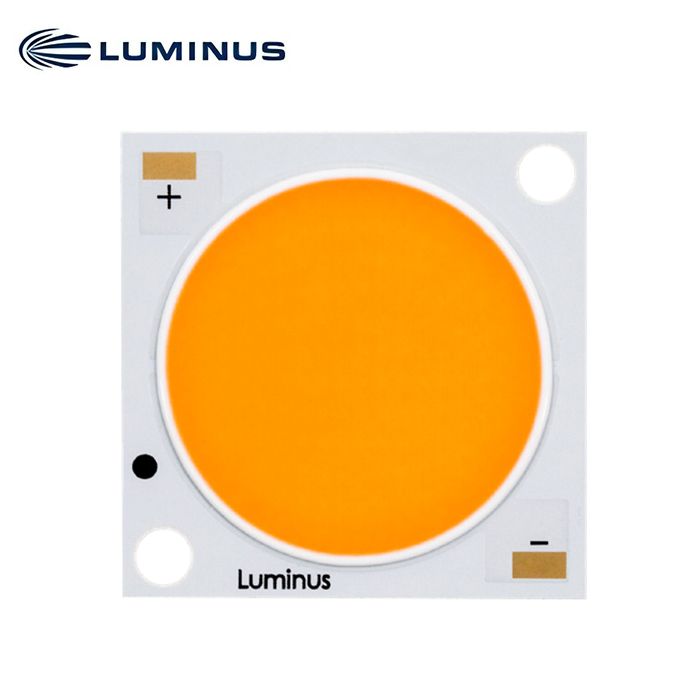

Generation 6 CGM-22 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 11940 lm, 148 LPW @ 3000K, 90CRI, Tj = 85°C
• Over 12500 lm, 155 LPW @ 5000K, 90CRI, Tj = 85°C
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• 3 SDCM color binning standard, 2 SDCM binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
Ordering Part Numbers -TC60
The following tables describe products with typical flux and minimum flux measured at 1600 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 9820 | 9130 | 10800 | CGM-22-22-90-54-TC60-F7-3 | CGM-22-22-90-54-TC60-F7-2 |
| 90 | 2400K | 10670 | 9930 | 11740 | CGM-22-24-90-54-TC60-F7-3 | CGM-22-24-90-54-TC60-F7-2 |
| 80 | 2700K | 12960 | 12055 | 14260 | CGM-22-27-80-54-TC60-F7-3 | CGM-22-27-80-54-TC60-F7-2 |
| 90 | 11520 | 10710 | 12670 | CGM-22-27-90-54-TC60-F7-3 | CGM-22-27-90-54-TC60-F7-2 | |
| 95 | 9650 | 8970 | 10610 | CGM-22-27-95-54-TC60-F7-3 | CGM-22-27-95-54-TC60-F7-2 | |
| 80 | 3000K | 13690 | 12730 | 15060 | CGM-22-30-80-54-TC60-F7-3 | CGM-22-30-80-54-TC60-F7-2 |
| 90 | 11940 | 11110 | 13140 | CGM-22-30-90-54-TC60-F7-3 | CGM-22-30-90-54-TC60-F7-2 | |
| 95 | 10180 | 9460 | 11190 | CGM-22-30-95-54-TC60-F7-3 | CGM-22-30-95-54-TC60-F7-2 | |
| 80 | 3500K | 13940 | 12970 | 15340 | CGM-22-35-80-54-TC60-F7-3 | CGM-22-35-80-54-TC60-F7-2 |
| 90 | 12240 | 11390 | 13470 | CGM-22-35-90-54-TC60-F7-3 | CGM-22-35-90-54-TC60-F7-2 | |
| 95 | 10630 | 9880 | 11690 | CGM-22-35-95-54-TC60-F7-3 | CGM-22-35-95-54-TC60-F7-2 | |
| 80 | 4000K | 14250 | 13250 | 15670 | CGM-22-40-80-54-TC60-F7-3 | CGM-22-40-80-54-TC60-F7-2 |
| 90 | 12520 | 11650 | 13780 | CGM-22-40-90-54-TC60-F7-3 | CGM-22-40-90-54-TC60-F7-2 | |
| 95 | 11200 | 10420 | 12320 | CGM-22-40-95-54-TC60-F7-3 | CGM-22-40-95-54-TC60-F7-2 | |
| 80 | 5000K | 14470 | 13460 | 15920 | CGM-22-50-80-54-TC60-F7-3 | CGM-22-50-80-54-TC60-F7-2 |
| 90 | 12500 | 11620 | 13750 | CGM-22-50-90-54-TC60-F7-3 | CGM-22-50-90-54-TC60-F7-2 | |
| 95 | 11740 | 10920 | 12920 | CGM-22-50-95-54-TC60-F7-3 | CGM-22-50-95-54-TC60-F7-2 | |
| 70 | 5700K | 14860 | 13820 | 16350 | CGM-22-57-70-54-TC60-F7-3 | CGM-22-50-70-54-TC60-F7-2 |
| 80 | 14200 | 13200 | 15620 | CGM-22-57-80-54-TC60-F7-3 | CGM-22-65-80-54-TC60-F7-2 | |
| 70 | 6500K | 14810 | 13780 | 16290 | CGM-22-65-70-54-TC60-F7-3 | CGM-22-65-70-54-TC60-F7-2 |
| 80 | 14040 | 13050 | 15440 | CGM-22-65-80-54-TC60-F7-3 | CGM-22-65-80-54-TC60-F7-2 | |
| 90 | 12550 | 11670 | 13800 | CGM-22-65-90-54-TC60-F7-3 | CGM-22-65-90-54-TC60-F7-2 | |
Ordering Part Numbers – TC62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 1600 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 10960 | 10190 | 12060 | CGM-22-27-90-54-TC62-F7-3 | CGM-22-27-90-54-TC62-F7-2 |
| 3000K | 11630 | 10810 | 12790 | CGM-22-30-90-54-TC62-F7-3 | CGM-22-30-90-54-TC62-F7-2 | |
| 3500K | 11920 | 11080 | 13110 | CGM-22-35-90-54-TC62-F7-3 | CGM-22-35-90-54-TC62-F7-2 | |
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | R91 |
| 5700K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Absolute Maximum Ratings
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 1600 | mA |
| Maximum | If max | 3600 | ||
| Power Dissipation | Typical | Pd typ | 81 | W |
| Maximum | Pd max | 195 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
Characteristics1,2,3
| Parameter | Symbol | Value | Unit | |
| Light Emitting Surface Diameter | LES | 22.0 | mm | |
| Forward Voltage | Minimum | Vf min | 46.9 | V |
| Typical | Vf typ | 50.4 | ||
| Maximum | Vf max | 54.1 | ||
| Thermal Resistance (junction-to-case) | Rth J-C | 0.14 | °C/W | |
| Viewing Angle | 2θ1/2 | 120 | ° | |
