Description

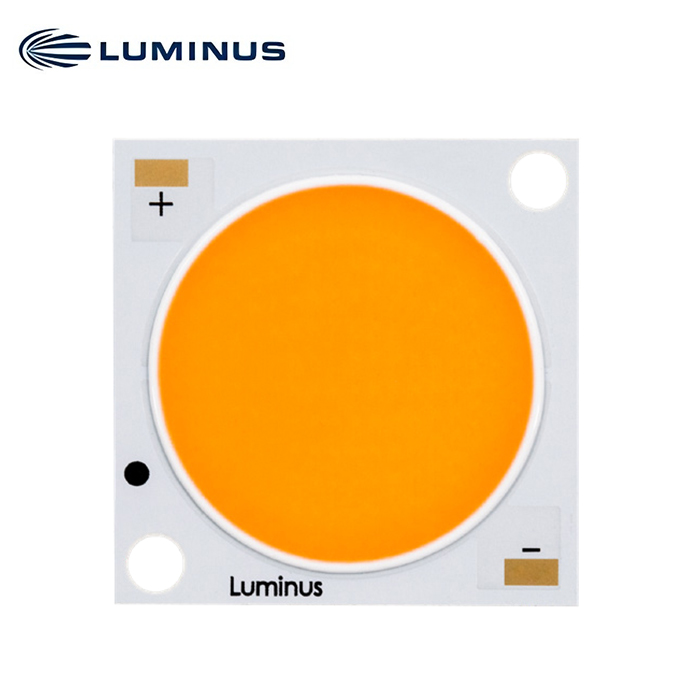

Generation 6 CIM-22 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 5105 lm, 155 LPW @ 3000K, 90CRI, Tj = 85ºC
• Over 5340 lm, 162LPW @ 5000K, 90CRI, Tj = 85ºC
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM color binning standard, 2 SDCM binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• ENEC certification
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Ordering Part Numbers-(TC60)
The following tables lists products typical flux and minimum flux measured at 990mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
||||
| 3-SDCM Chromaticity | 2-SDCM Chromaticity | |||||
| 2200K | 4195 | 3905 | 4615 | 90 | CIM-22-22-90-36-TC60-F7-3 | CIM-22-22-90-36-TC60-F7-2 |
| 2400K | 4560 | 4240 | 5015 | 90 | CIM-22-24-90-36-TC60-F7-3 | CIM-22-24-90-36-TC60-F7-2 |
| 2700K | 5540 | 5155 | 6095 | 80 | CIM-22-27-80-36-TC60-F7-3 | CIM-22-27-80-36-TC60-F7-2 |
| 4920 | 4575 | 5415 | 90 | CIM-22-27-90-36-TC60-F7-3 | CIM-22-27-90-36-TC60-F7-2 | |
| 4125 | 3835 | 4535 | 95 | CIM-22-27-95-36-TC60-F7-3 | CIM-22-27-95-36-TC60-F7-2 | |
| 3000K | 5850 | 5440 | 6435 | 80 | CIM-22-30-80-36-TC60-F7-3 | CIM-22-30-80-36-TC60-F7-2 |
| 5105 | 4745 | 5615 | 90 | CIM-22-30-90-36-TC60-F7-3 | CIM-22-30-90-36-TC60-F7-2 | |
| 4350 | 4045 | 4785 | 95 | CIM-22-30-95-36-TC60-F7-3 | CIM-22-30-95-36-TC60-F7-2 | |
| 3500K | 5960 | 5540 | 6555 | 80 | CIM-22-35-80-36-TC60-F7-3 | CIM-22-35-80-36-TC60-F7-2 |
| 5235 | 4865 | 5755 | 90 | CIM-22-35-90-36-TC60-F7-3 | CIM-22-35-90-36-TC60-F7-2 | |
| 4540 | 4225 | 4995 | 95 | CIM-22-35-95-36-TC60-F7-3 | CIM-22-35-95-36-TC60-F7-2 | |
| 4000K | 6090 | 5665 | 6700 | 80 | CIM-22-40-80-36-TC60-F7-3 | CIM-22-40-80-36-TC60-F7-2 |
| 5350 | 4980 | 5890 | 90 | CIM-22-40-90-36-TC60-F7-3 | CIM-22-40-90-36-TC60-F7-2 | |
| 4785 | 4450 | 5265 | 95 | CIM-22-40-95-36-TC60-F7-3 | CIM-22-40-95-36-TC60-F7-2 | |
| 5000K | 6185 | 5755 | 6805 | 80 | CIM-22-50-80-36-TC60-F7-3 | CIM-22-50-80-36-TC60-F7-2 |
| 5340 | 4970 | 5875 | 90 | CIM-22-50-90-36-TC60-F7-3 | CIM-22-50-90-36-TC60-F7-2 | |
| 5020 | 4665 | 5520 | 95 | CIM-22-50-95-36-TC60-F7-3 | CIM-22-50-95-36-TC60-F7-2 | |
| 6500K | 6000 | 5580 | 6600 | 80 | CIM-22-65-80-36-TC60-F7-3 | CIM-22-65-80-36-TC60-F7-2 |
| 5365 | 4990 | 5900 | 90 | CIM-22-65-90-36-TC60-F7-3 | CIM-22-65-90-36-TC60-F7-2 | |
Ordering Part Numbers – TC62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 990mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min ) |
Ordering Part Number | |||
| Typ (85ºC) | Min (85ºC) | Calculated
Typ (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2700K | 4685 | 4355 | 5155 | 90 | CIM-22-27-90-36-TC62-F7-3 | CIM-22-27-90-36-TC62-F7-2 |
| 3000K | 4970 | 4625 | 5470 | 90 | CIM-22-30-90-36-TC62-F7-3 | CIM-22-30-90-36-TC62-F7-2 |
| 3500K | 5095 | 4735 | 5605 | 90 | CIM-22-35-90-36-TC62-F7-3 | CIM-22-35-90-36-TC62-F7-2 |
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current1,2 | If | 990 | 2600 | mA | |
| Forward Voltage3 | Vf | 31.7 | 33.2 | 37.7 | V |
| Power | 33 | 98 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 22.0 | mm | ||
| Thermal Resistance (junction-to-case) | Qjc | 0.14 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
