Description

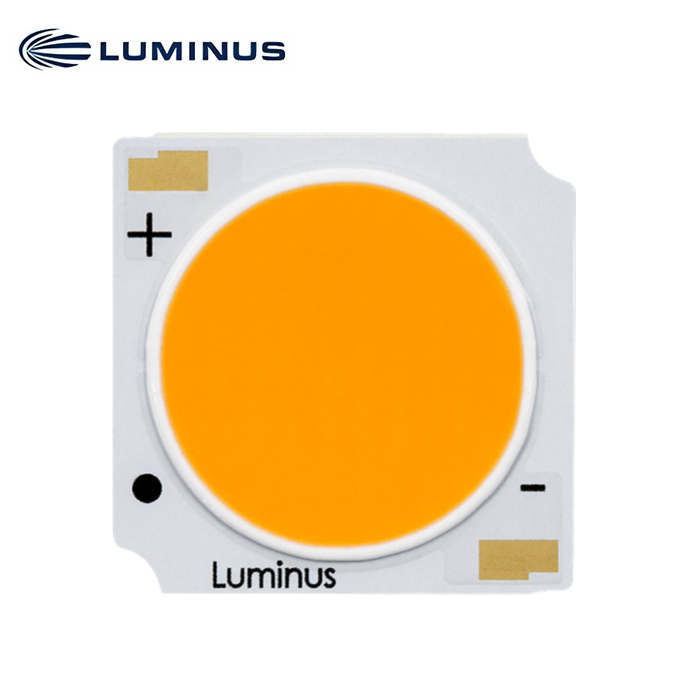

Generation 6 CLM-14 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 2480 lm, 151 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
Ordering Part Numbers -TC60
The following tables describe products with typical flux and minimum flux measured at 500 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 2040 | 1895 | 2240 | CLM-14-22-90-36-TC60-F7-3 | CLM-14-22-90-36-TC60-F7-2 |
| 90 | 2400K | 2215 | 2060 | 2435 | CLM-14-24-90-36-TC60-F7-3 | CLM-14-24-90-36-TC60-F7-2 |
| 80 | 2700K | 2690 | 2500 | 2960 | CLM-14-27-80-36-TC60-F7-3 | CLM-14-27-80-36-TC60-F7-2 |
| 90 | 2390 | 2220 | 2630 | CLM-14-27-90-36-TC60-F7-3 | CLM-14-27-90-36-TC60-F7-2 | |
| 95 | 2000 | 1860 | 2200 | CLM-14-27-95-36-TC60-F7-3 | CLM-14-27-95-36-TC60-F7-2 | |
| 80 | 3000K | 2840 | 2640 | 3125 | CLM-14-30-80-36-TC60-F7-3 | CLM-14-30-80-36-TC60-F7-2 |
| 90 | 2480 | 2305 | 2725 | CLM-14-30-90-36-TC60-F7-3 | CLM-14-30-90-36-TC60-F7-2 | |
| 95 | 2110 | 1965 | 2325 | CLM-14-30-95-36-TC60-F7-3 | CLM-14-30-95-36-TC60-F7-2 | |
| 80 | 3500K | 2895 | 2690 | 3185 | CLM-14-35-80-36-TC60-F7-3 | CLM-14-35-80-36-TC60-F7-2 |
| 90 | 2540 | 2365 | 2795 | CLM-14-35-90-36-TC60-F7-3 | CLM-14-35-90-36-TC60-F7-2 | |
| 95 | 2205 | 2050 | 2425 | CLM-14-35-95-36-TC60-F7-3 | CLM-14-35-95-36-TC60-F7-2 | |
| 80 | 4000K | 2955 | 2750 | 3250 | CLM-14-40-80-36-TC60-F7-3 | CLM-14-40-80-36-TC60-F7-2 |
| 90 | 2600 | 2420 | 2860 | CLM-14-40-90-36-TC60-F7-3 | CLM-14-40-90-36-TC60-F7-2 | |
| 95 | 2325 | 2160 | 2555 | CLM-14-40-95-36-TC60-F7-3 | CLM-14-40-95-36-TC60-F7-2 | |
| 80 | 5000K | 3005 | 2795 | 3305 | CLM-14-50-80-36-TC60-F7-3 | CLM-14-50-80-36-TC60-F7-2 |
| 90 | 2595 | 2410 | 2855 | CLM-14-50-90-36-TC60-F7-3 | CLM-14-50-90-36-TC60-F7-2 | |
| 95 | 2440 | 2265 | 2680 | CLM-14-50-95-36-TC60-F7-3 | CLM-14-50-95-36-TC60-F7-2 | |
| 80 | 6500K | 2910 | 2710 | 3205 | CLM-14-65-80-36-TC60-F7-3 | CLM-14-65-80-36-TC60-F7-2 |
| 90 | 2605 | 2420 | 2865 | CLM-14-65-90-36-TC60-F7-3 | CLM-14-65-90-36-TC60-F7-2 | |
Ordering Part Numbers – TC62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 500 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 2275 | 2115 | 2500 | CLM-14-27-90-36-TC62-F7-3 | CLM-14-27-90-36-TC62-F7-2 |
| 3000K | 2415 | 2245 | 2655 | CLM-14-30-90-36-TC62-F7-3 | CLM-14-30-90-36-TC62-F7-2 | |
| 3500K | 2475 | 2300 | 2720 | CLM-14-35-90-36-TC62-F7-3 | CLM-14-35-90-36-TC62-F7-2 | |
Ordering Part Numbers – TA62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 500 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 2275 | 2115 | 2500 | CLM-14-27-90-36-TA62-F7-3 | CLM-14-27-90-36-TA62-F7-2 |
| 3000K | 2415 | 2245 | 2655 | CLM-14-30-90-36-TA62-F7-3 | CLM-14-30-90-36-TA62-F7-2 | |
| 3500K | 2475 | 2300 | 2720 | CLM-14-35-90-36-TA62-F7-3 | CLM-14-35-90-36-TA62-F7-2 | |
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | R91 |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Absolute Maximum Ratings
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 500 | mA |
| Maximum | If max | 1600 | ||
| Power Dissipation | Typical | Pd typ | 16.4 | W |
| Maximum | Pd max | 58.2 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
Characteristics1,2,3
| Parameter | Symbol | Value | Unit | |
| Light Emitting Surface Diameter | LES | 14.5 | mm | |
| Forward Voltage | Minimum | Vf min | 30.8 | V |
| Typical | Vf typ | 32.8 | ||
| Maximum | Vf max | 36.4 | ||
| Thermal Resistance (junction-to-case) | Rth J-C | 0.25 | °C/W | |
| Viewing Angle | 2θ1/2 | 120 | ° | |
