Description

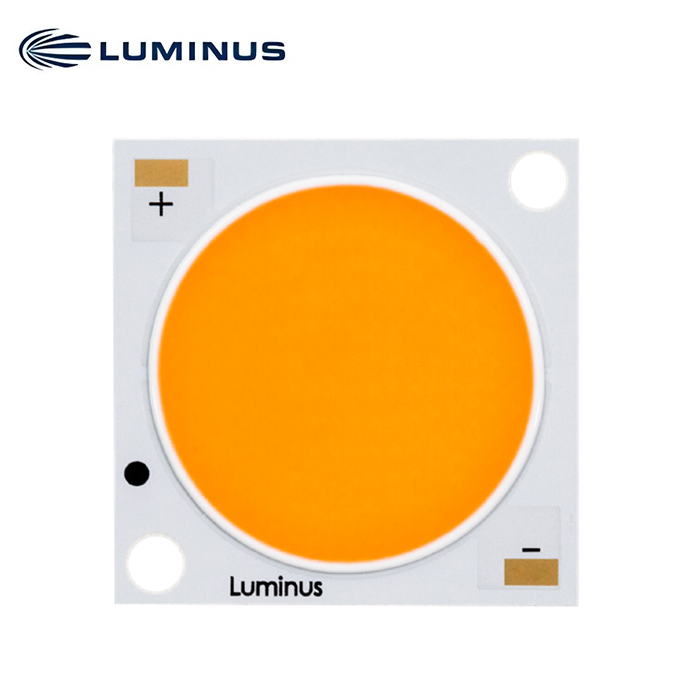

Generation 6 CLM-22 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 5485 lm, 158 LPW @ 3000K, 90CRI, Tj = 85ºC
• Over 5740 lm, 165LPW @ 5000K, 90CRI, Tj = 85ºC
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM color binning standard, 2 SDCM binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• ENEC certification
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Ordering Part Numbers-(TC60)
The following tables lists products typical flux and minimum flux measured at 1,050mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
||||
| 3-SDCM Chromaticity | 2-SDCM Chromaticity | |||||
| 2200K | 4510 | 4195 | 4960 | 90 | CLM-22-22-90-36-TC60-F7-3 | CLM-22-22-90-36-TC60-F7-2 |
| 2400K | 4900 | 4560 | 5390 | 90 | CLM-22-24-90-36-TC60-F7-3 | CLM-22-24-90-36-TC60-F7-2 |
| 2700K | 5955 | 5540 | 6550 | 80 | CLM-22-27-80-36-TC60-F7-3 | CLM-22-27-80-36-TC60-F7-2 |
| 5290 | 4920 | 5820 | 90 | CLM-22-27-90-36-TC60-F7-3 | CLM-22-27-90-36-TC60-F7-2 | |
| 4430 | 4120 | 4875 | 95 | CLM-22-27-95-36-TC60-F7-3 | CLM-22-27-95-36-TC60-F7-2 | |
| 3000K | 6285 | 5845 | 6915 | 80 | CLM-22-30-80-36-TC60-F7-3 | CLM-22-30-80-36-TC60-F7-2 |
| 5485 | 5100 | 6035 | 90 | CLM-22-30-90-36-TC60-F7-3 | CLM-22-30-90-36-TC60-F7-2 | |
| 4675 | 4345 | 5140 | 95 | CLM-22-30-95-36-TC60-F7-3 | CLM-22-30-95-36-TC60-F7-2 | |
| 3500K | 6405 | 5955 | 7045 | 80 | CLM-22-35-80-36-TC60-F7-3 | CLM-22-35-80-36-TC60-F7-2 |
| 5625 | 5230 | 6185 | 90 | CLM-22-35-90-36-TC60-F7-3 | CLM-22-35-90-36-TC60-F7-2 | |
| 4880 | 4540 | 5370 | 95 | CLM-22-35-95-36-TC60-F7-3 | CLM-22-35-95-36-TC60-F7-2 | |
| 4000K | 6545 | 6085 | 7200 | 80 | CLM-22-40-80-36-TC60-F7-3 | CLM-22-40-80-36-TC60-F7-2 |
| 5750 | 5350 | 6330 | 90 | CLM-22-40-90-36-TC60-F7-3 | CLM-22-40-90-36-TC60-F7-2 | |
| 5145 | 4785 | 5660 | 95 | CLM-22-40-95-36-TC60-F7-3 | CLM-22-40-95-36-TC60-F7-2 | |
| 5000K | 6650 | 6180 | 7315 | 80 | CLM-22-50-80-36-TC60-F7-3 | CLM-22-50-80-36-TC60-F7-2 |
| 5740 | 5340 | 6315 | 90 | CLM-22-50-90-36-TC60-F7-3 | CLM-22-50-90-36-TC60-F7-2 | |
| 5395 | 5015 | 5930 | 95 | CLM-22-50-95-36-TC60-F7-3 | CLM-22-50-95-36-TC60-F7-2 | |
| 6500K | 6445 | 5995 | 7090 | 80 | CLM-22-65-80-36-TC60-F7-3 | CLM-22-65-80-36-TC60-F7-2 |
| 5765 | 5360 | 6340 | 90 | CLM-22-65-90-36-TC60-F7-3 | CLM-22-65-90-36-TC60-F7-2 | |
Ordering Part Numbers – TC62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 1050mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min ) |
Ordering Part Number | |||
| Typ (85ºC) | Min (85ºC) | Calculated
Typ (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2700K | 5035 | 4680 | 5535 | 90 | CLM-22-27-90-36-TC62-F7-3 | CLM-22-27-90-36-TC62-F7-2 |
| 3000K | 5340 | 4965 | 5875 | 90 | CLM-22-30-90-36-TC62-F7-3 | CLM-22-30-90-36-TC62-F7-2 |
| 3500K | 5485 | 5105 | 6035 | 90 | CLM-22-35-90-36-TC62-F7-3 | CLM-22-35-90-36-TC62-F7-2 |
Ordering Part Numbers – TC68 Custom Colors (BBBL)
The following tables describe products with typical flux and minimum flux measured at 1050mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 1800K | 2830 | 2630 | 3115 | 70 | CLM-22-18-70-36-TC68-F7-3 | CLM-22-18-70-36-TC68-F7-2 |
| 1900K | 3680 | 3420 | 4050 | 70 | CLM-22-19-70-36-TC68-F7-3 | CLM-22-19-70-36-TC68-F7-2 |
| 3000K | 3775 | 3510 | 4155 | 70 | CLM-22-30-70-36-TC68-F7-3 | CLM-22-30-70-36-TC68-F7-2 |
| 4000K | 3445 | 3205 | 3790 | 70 | CLM-22-40-70-36-TC68-F7-3 | CLM-22-40-70-36-TC68-F7-2 |
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current1,2 | If | 1,050 | 3200 | mA | |
| Forward Voltage3 | Vf | 31.6 | 32.9 | 36.5 | V |
| Power | 34.5 | 117 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 22.0 | mm | ||
| Thermal Resistance (junction-to-case) | Qjc | 0.14 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
