Description

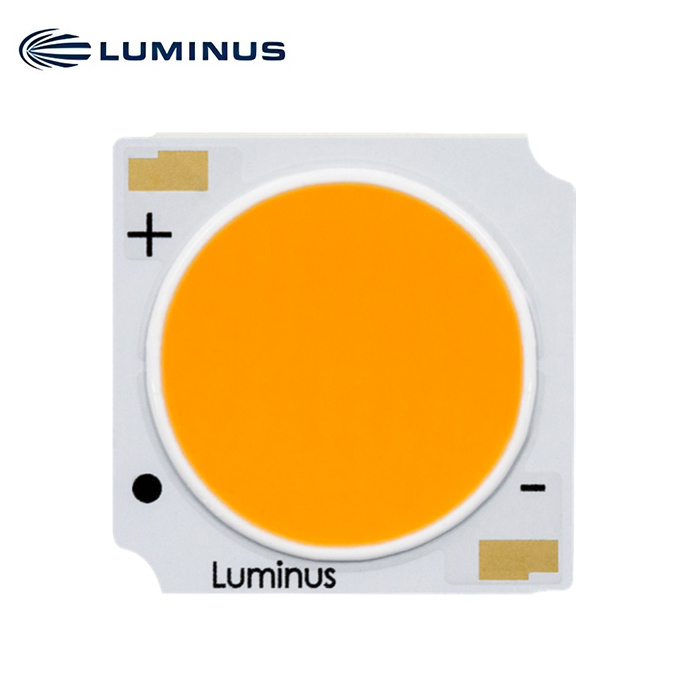

Generation 6 CXM-14 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 3450 lm, 145 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
Ordering Part Numbers -TC60
The following tables describe products with typical flux and minimum flux measured at 720 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 2840 | 2640 | 3120 | CXM-14-22-90-36-TC60-F7-3 | CXM-14-22-90-36-TC60-F7-2 |
| 90 | 2400K | 3085 | 2870 | 3395 | CXM-14-24-90-36-TC60-F7-3 | CXM-14-24-90-36-TC60-F7-2 |
| 80 | 2700K | 3750 | 3485 | 4125 | CXM-14-27-80-36-TC60-F7-3 | CXM-14-27-80-36-TC60-F7-2 |
| 90 | 3330 | 3095 | 3660 | CXM-14-27-90-36-TC60-F7-3 | CXM-14-27-90-36-TC60-F7-2 | |
| 95 | 2790 | 2595 | 3065 | CXM-14-27-95-36-TC60-F7-3 | CXM-14-27-95-36-TC60-F7-2 | |
| 80 | 3000K | 3955 | 3680 | 4350 | CXM-14-30-80-36-TC60-F7-3 | CXM-14-30-80-36-TC60-F7-2 |
| 90 | 3450 | 3210 | 3800 | CXM-14-30-90-36-TC60-F7-3 | CXM-14-30-90-36-TC60-F7-2 | |
| 95 | 2940 | 2735 | 3235 | CXM-14-30-95-36-TC60-F7-3 | CXM-14-30-95-36-TC60-F7-2 | |
| 80 | 3500K | 4030 | 3750 | 4435 | CXM-14-35-80-36-TC60-F7-3 | CXM-14-35-80-36-TC60-F7-2 |
| 90 | 3540 | 3290 | 3895 | CXM-14-35-90-36-TC60-F7-3 | CXM-14-35-90-36-TC60-F7-2 | |
| 95 | 3070 | 2855 | 3380 | CXM-14-35-95-36-TC60-F7-3 | CXM-14-35-95-36-TC60-F7-2 | |
| 80 | 4000K | 4120 | 3830 | 4530 | CXM-14-40-80-36-TC60-F7-3 | CXM-14-40-80-36-TC60-F7-2 |
| 90 | 3620 | 3365 | 3980 | CXM-14-40-90-36-TC60-F7-3 | CXM-14-40-90-36-TC60-F7-2 | |
| 95 | 3240 | 3010 | 3560 | CXM-14-40-95-36-TC60-F7-3 | CXM-14-40-95-36-TC60-F7-2 | |
| 80 | 5000K | 4185 | 3895 | 4605 | CXM-14-50-80-36-TC60-F7-3 | CXM-14-50-80-36-TC60-F7-2 |
| 90 | 3615 | 3360 | 3975 | CXM-14-50-90-36-TC60-F7-3 | CXM-14-50-90-36-TC60-F7-2 | |
| 95 | 3395 | 3155 | 3735 | CXM-14-50-95-36-TC60-F7-3 | CXM-14-50-95-36-TC60-F7-2 | |
| 80 | 6500K | 4055 | 3775 | 4465 | CXM-14-65-80-36-TC60-F7-3 | CXM-14-65-80-36-TC60-F7-2 |
| 90 | 3630 | 3375 | 3990 | CXM-14-65-90-36-TC60-F7-3 | CXM-14-65-90-36-TC60-F7-2 | |
Ordering Part Numbers – TC62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 720 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 3170 | 2945 | 3485 | CXM-14-27-90-36-TC62-F7-3 | CXM-14-27-90-36-TC62-F7-2 |
| 3000K | 3360 | 3125 | 3700 | CXM-14-30-90-36-TC62-F7-3 | CXM-14-30-90-36-TC62-F7-2 | |
| 3500K | 3445 | 3205 | 3790 | CXM-14-35-90-36-TC62-F7-3 | CXM-14-35-90-36-TC62-F7-2 | |
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | R91 |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Absolute Maximum Ratings
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 720 | mA |
| Maximum | If max | 1800 | ||
| Power Dissipation | Typical | Pd typ | 24.0 | W |
| Maximum | Pd max | 67.9 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
Characteristics1,2,3
| Parameter | Symbol | Value | Unit | |
| Light Emitting Surface Diameter | LES | 14.5 | mm | |
| Forward Voltage | Minimum | Vf min | 31.5 | V |
| Typical | Vf typ | 33.3 | ||
| Maximum | Vf max | 37.7 | ||
| Thermal Resistance (junction-to-case) | Rth J-C | 0.25 | °C/W | |
| Viewing Angle | 2θ1/2 | 120 | ° | |
