Description

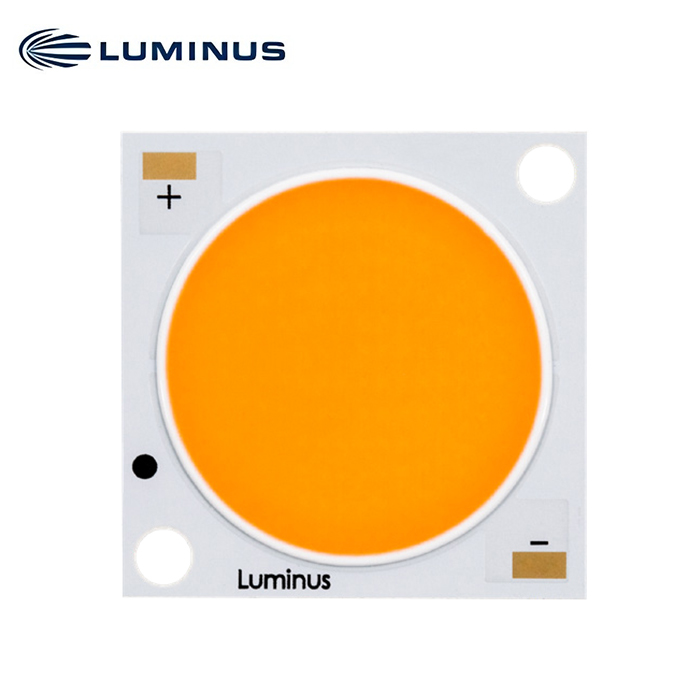

Generation 6 CXM-32 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 18720 lm, 155 LPW @ 3000K, 90CRI, Tj = 85°C
• Over 8480 lm, 162 LPW @ 5000K, 90CRI, Tj = 85°C
• CCT range 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• 3 SDCM color binning standard, 2 SDCM binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Parking Lot and Area Lighting
• Architectural and Specialty
• Tunnel Lighting
Ordering Part Numbers -TC60
The following tables describe products with typical flux and minimum flux measured at 2400 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 80 | 2700K | 20330 | 18900 | 22360 | CXM-32-27-80-54-TC60-F7-3 | CXM-32-27-80-54-TC60-F7-2 |
| 90 | 18060 | 16790 | 19860 | CXM-32-27-90-54-TC60-F7-3 | CXM-32-27-90-54-TC60-F7-2 | |
| 95 | 15120 | 14060 | 16640 | CXM-32-27-95-54-TC60-F7-3 | CXM-32-27-95-54-TC60-F7-2 | |
| 80 | 3000K | 21460 | 19960 | 23600 | CXM-32-30-80-54-TC60-F7-3 | CXM-32-30-80-54-TC60-F7-2 |
| 90 | 18720 | 17410 | 20596 | CXM-32-30-90-54-TC60-F7-3 | CXM-32-30-90-54-TC60-F7-2 | |
| 95 | 15950 | 14840 | 17550 | CXM-32-30-95-54-TC60-F7-3 | CXM-32-30-95-54-TC60-F7-2 | |
| 80 | 3500K | 21860 | 20330 | 24050 | CXM-32-35-80-54-TC60-F7-3 | CXM-32-35-80-54-TC60-F7-2 |
| 90 | 19200 | 17850 | 21120 | CXM-32-35-90-54-TC60-F7-3 | CXM-32-35-90-54-TC60-F7-2 | |
| 95 | 16660 | 15490 | 18330 | CXM-32-35-95-54-TC60-F7-3 | CXM-32-35-95-54-TC60-F7-2 | |
| 80 | 4000K | 22340 | 20770 | 24570 | CXM-32-40-80-54-TC60-F7-3 | CXM-32-40-80-54-TC60-F7-2 |
| 90 | 19640 | 18260 | 21600 | CXM-32-40-90-54-TC60-F7-3 | CXM-32-40-90-54-TC60-F7-2 | |
| 95 | 17560 | 16330 | 19320 | CXM-32-40-95-54-TC60-F7-3 | CXM-32-40-95-54-TC60-F7-2 | |
| 80 | 5000K | 22690 | 21110 | 24960 | CXM-32-50-80-54-TC60-F7-3 | CXM-32-50-80-54-TC60-F7-2 |
| 90 | 19600 | 18220 | 21560 | CXM-32-50-90-54-TC60-F7-3 | CXM-32-50-90-54-TC60-F7-2 | |
| 95 | 18410 | 17120 | 20250 | CXM-32-50-95-54-TC60-F7-3 | CXM-32-50-95-54-TC60-F7-2 | |
| 70 | 5700K | 23310 | 21680 | 25640 | CXM-32-57-70-54-TC60-F7-3 | CXM-32-57-70-54-TC60-F7-2 |
| 80 | 22270 | 20710 | 24490 | CXM-32-57-80-54-TC60-F7-3 | CXM-32-57-80-54-TC60-F7-2 | |
| 70 | 6500K | 23230 | 21600 | 25550 | CXM-32-65-70-54-TC60-F7-3 | CXM-32-65-70-54-TC60-F7-2 |
| 80 | 22010 | 20470 | 24210 | CXM-32-65-80-54-TC60-F7-3 | CXM-32-65-80-54-TC60-F7-2 | |
| 90 | 19670 | 18300 | 21640 | CXM-32-65-90-54-TC60-F7-3 | CXM-32-65-90-54-TC60-F7-2 | |
Ordering Part Numbers – TC62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at typical current and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 17180 | 15980 | 18900 | CXM-32-27-90-54-TC62-F7-3 | CXM-32-27-90-54-TC62-F7-2 |
| 3000K | 18230 | 16960 | 20060 | CXM-32-30-90-54-TC62-F7-3 | CXM-32-30-90-54-TC62-F7-2 | |
| 3500K | 18690 | 17380 | 20560 | CXM-32-35-90-54-TC62-F7-3 | CXM-32-35-90-54-TC62-F7-2 | |
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | R91 |
| 5700K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Absolute Maximum Ratings
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 2400 | mA |
| Maximum | If max | 5600 | ||
| Power Dissipation | Typical | Pd typ | 120 | W |
| Maximum | Pd max | 242 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
150 | °C |
Characteristics1,2,3
| Parameter | Symbol | Value | Unit | |
| Light Emitting Surface Diameter | LES | 32.8 | mm | |
| Forward Voltage | Minimum | Vf min | 46.3 | V |
| Typical | Vf typ | 50.2 | ||
| Maximum | Vf max | 55.0 | ||
| Thermal Resistance | Rth J-C | 0.10 | °C/W | |
| Viewing Angle | 2θ1/2 | 120 | ° | |
