Description

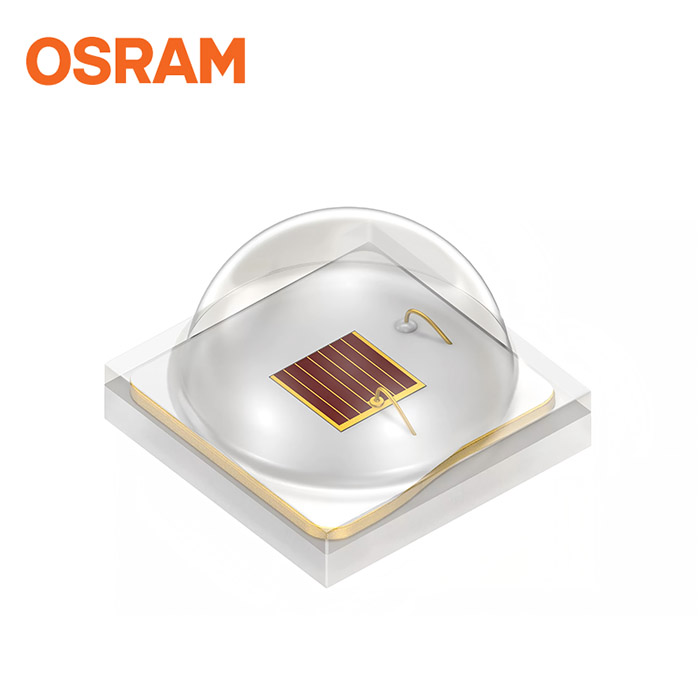

OSLON™ Optimal GF CSSRML.24 A brand new family of LEDs with our ams OSRAM’s latest chip technology, delivering significant performance upgrades. The OSLON™ Optimal strikes a perfect balance of performance and cost along with proven robustness, high reliability and long lifetime.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMT ceramic package with silicone lens

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Radiant Flux: typ. 465 mW

– Radiant Efficiency: typ. 72.2%

– Photon Flux: typ. 2.80 umol/s

– Photon Flux Efficacy: typ. 4.35 umol/J

– ThinFilm LED chip designed and manufactured in Germany

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Illumination Color: Red
Luminous Flux/Radiant Flux: 0.474 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 1.95 V
Power Rating: 680 mW
Series: GF CSSRML.24
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: ams OSRAM
Height: 2.17 mm
Length: 3 mm
Luminous Intensity: 154 mcd
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
3000
Subcategory: LEDs
Tradename: OSLON
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 3 mm
Part # Aliases: Q65113A4445
