Description

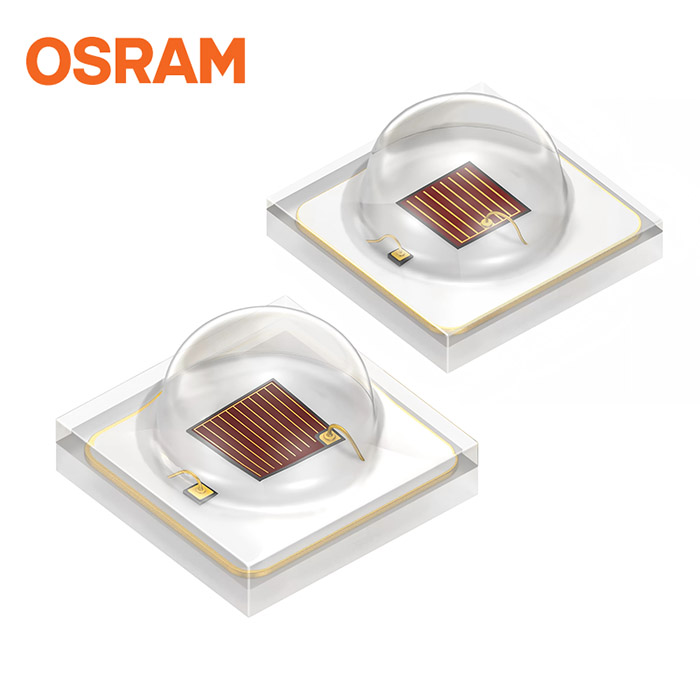

OSLON® SSL 120 GH CSSPM1.24 New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMT ceramic package with silicone lens

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Radiant Flux: typ. 475 mW

– Radiant Efficiency: typ. 65 %

– Photosynthetic Photon Flux: typ. 2.58 μmol/s

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Wavelength/Color Temperature: 640 nm
Illumination Color: Red
Luminous Flux/Radiant Flux: 28 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.07 V
Power Rating: 720 mW
Series: GH CSSPM1.24
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: ams OSRAM
Height: 1.88 mm
Length: 3 mm
Luminous Intensity: 9.34 cd
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
3000
Subcategory: LEDs
Tradename: OSLON
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 3 mm
Part # Aliases: Q65112A5153
Unit Weight: 0.001023 oz
