Description

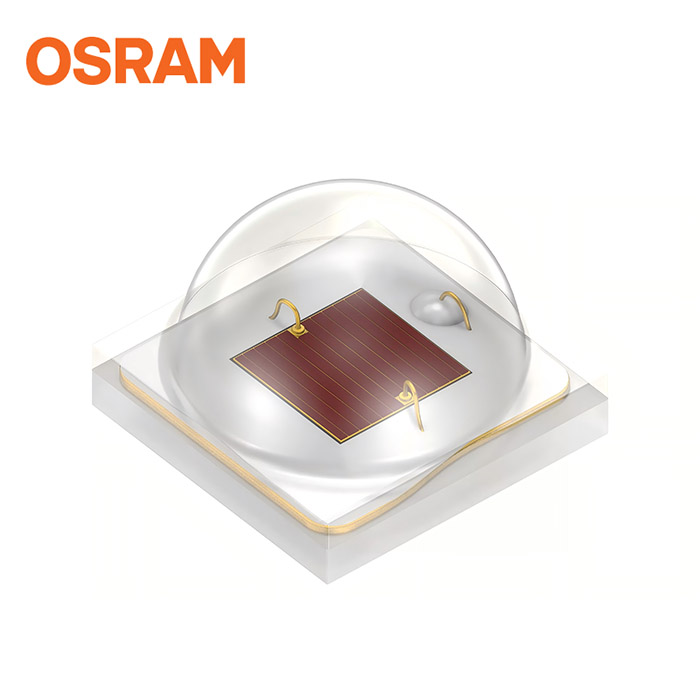

OSLON® Square GH CSSRM6.24 OSLON® Square Hyper Red with best value for highest PF/W. Most compact high-power LED with proven robustness, high reliability, long lifetime and low thermal resistance.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMD ceramic package with silicone lens

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Radiant Flux: typ. 1113 mW @ 700mA; typ. 563 mW @ 350mA

– Radiant Efficiency: typ. 81% @ 700mA; typ. 86% @ 350mA

– Photon Flux: typ. 6.10 μmol/s @ 700mA; typ. 3.09 μmol/s @ 350mA

– Photon Flux Efficacy: typ 4.42 μmol/J @ 700mA; typ 4.74 μmol/J @ 350mA

– ThinFilm LED chip designed and manufactured in Germany

Product Attribute Attribute Value
Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Red LEDs
Mounting Style: SMD/SMT
Package / Case: 3 mm x 3mm x 2.17 mm
Wavelength/Color Temperature: 660 nm
Illumination Color: Red
Luminous Flux/Radiant Flux: 880 mW
If – Forward Current: 700 mA
Vf – Forward Voltage: 2.06 V
Power Rating: 1.4 W
Lens Shape: Dome
Series: GH CSSRM6.24
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: ams OSRAM
Configuration: Single
Height: 2.17 mm
Length: 3 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
3000
Subcategory: LEDs
Tradename: OSLON
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 3 mm
Part # Aliases: Q65113A8446
