Description

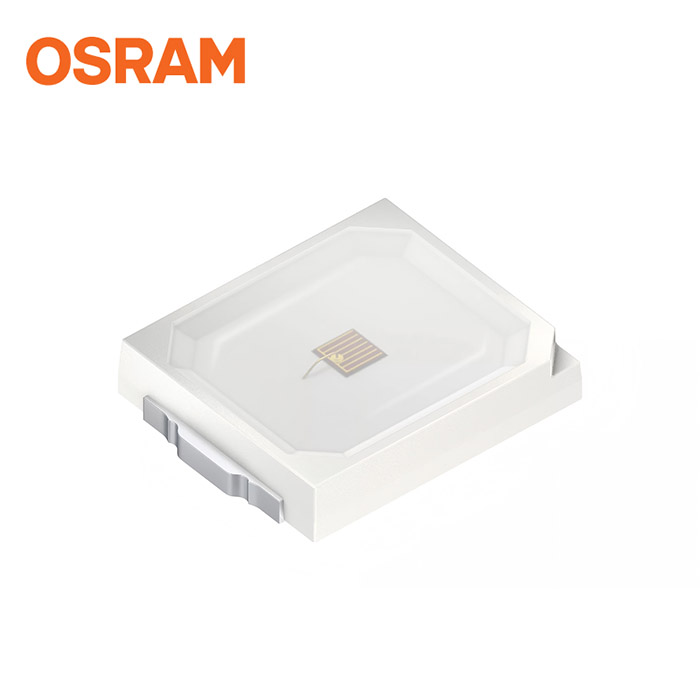

DURIS® E 2835 GH JTLPS1.24 The DURIS® E 2835 color family provide excellent color rendering and supreme efficacy in cost effective industry standard LED. DURIS® E 2835 never fails to impress with its performance on system level.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

Features

– Package: white SMT package, colorless clear silicone resin

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Radiant Flux: typ. 165 mW – Radiant Efficiency: typ. 50 %

– Photosynthetic Photon Flux: typ. 0.906 μmol/s

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: White LEDs
Mounting Style: SMD/SMT
Wavelength/Color Temperature: 657 nm
Luminous Flux/Radiant Flux: 155 mW
If – Forward Current: 150 mA
Vf – Forward Voltage: 2.2 V
Power Rating: 132 mW
Lens Shape: Rectangular
Series: GH JTLPS1.24
Brand: ams OSRAM
Luminous Intensity: 2.87 cd
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
100000
Subcategory: LEDs
Tradename: DURIS
Type: Single Color LEDs
Viewing Angle: 120 deg
Part # Aliases: Q65113A8410
