Description

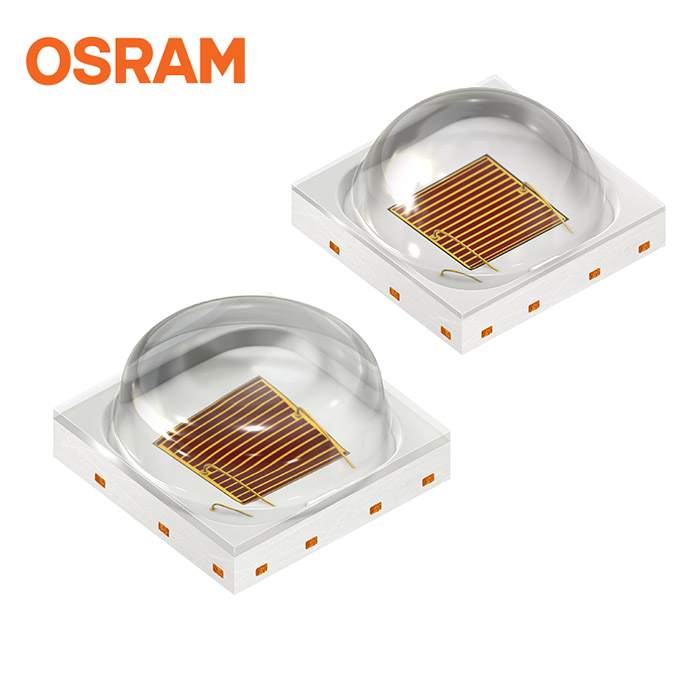

OSCONIQ® P 3737 (2W) GH PUSRA1.25 High-power LED with our ams OSRAM’s latest chip technology, delivering industry leading performance, superior robustness and long lifetime. With the introduction of a new color (Red 640 nm) the family offers five colors for ease of design and high flexibility for all your horticulture spectrum needs. The OSCONIQ® P 3737 family offers Hyper Red (660 nm), Red (640nm), Deep Blue (450 nm), Far Red (730 nm) and Horti White which can cater to both narrow spectrum and full spectrum solutions to meet all crop needs for both greenhouses and vertical farms.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMD epoxy package with silicone lens

– Typ. Radiation: 120°

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Radiant Flux (@ 700mA): typ. 1113 mW @ 25°C; typ. 1050 mW @ 85°C

– Radiant Efficiency (@ 700mA): typ. 83.2% @ 25°C; typ. 80.6% @ 85°C

– Photon Flux (@ 700mA): typ. 6.13 μmol/s @ 25°C; typ. 5.85 μmol/s @ 85°C

– Photon Flux Efficacy (@ 700mA): typ. 4.59 μmol/J @ 25°C; typ. 4.49 μmol/J @ 85°C

– ThinFilm LED chip designed and manufactured in Germany

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Red LEDs
Mounting Style: SMD/SMT
Package / Case: 3.7 m x 3.7 mm x 2.15 mm
Wavelength/Color Temperature: 672 nm
Illumination Color: Red
Luminous Flux/Radiant Flux: 985 mW
If – Forward Current: 700 mA
Vf – Forward Voltage: 1.86 V
Power Rating: 2 W
Lens Color: Colorless
Lens Dimensions: 3.6 mm
Lens Shape: Round
Lens Transparency: Clear
Series: P3737
Packaging: Reel
Packaging: Cut Tape
Brand: ams OSRAM
Configuration: Single
Height: 2.15 mm
Length: 3.7 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
3000
Subcategory: LEDs
Tradename: OSCONIQ
Type: Single Color LEDs
Viewing Angle: 130 deg
Width: 3.7 mm
