Description

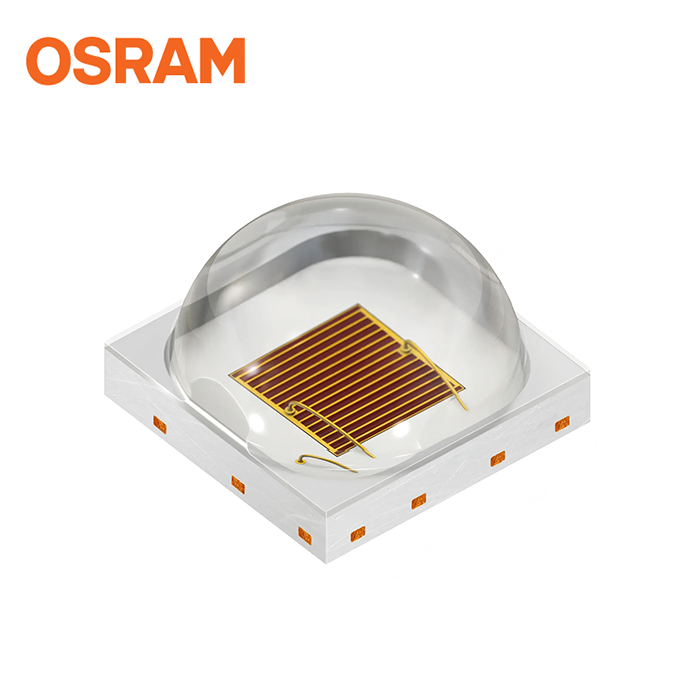

OSCONIQ™ P 3737 (2W) GH PUSRA2.25 Brand new, upgraded high-power LED with our ams OSRAM’s latest chip technology and new generation of optimized lens, delivering industry leading performance, superior robustness and long lifetime. With high efficiency REDS available in three wavelengths, the family offers five colors for ease of design and high flexibility for all your horticulture spectrum needs.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMD epoxy package with silicone lens

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Typ. Radiation: 120°

– Radiant Flux (@ 700mA): typ. 1085 mW @ 85°C

– Radiant Efficiency (@ 700mA): typ. 82.4% @ 85°C

– Photon Flux (@ 700mA): typ. 6.09 μmol/s @ 85°C

– Photon Flux Efficacy (@ 700mA): typ. 4.63 μmol/J @ 85°C

– ThinFilm LED chip designed and manufactured in Germany

Product Attribute Attribute Value
Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Red LEDs
Mounting Style: SMD/SMT
Wavelength/Color Temperature: 680 nm
Illumination Color: Red
Luminous Flux/Radiant Flux: 5.7 umol/s
If – Forward Current: 700 mA
Vf – Forward Voltage: 1.8 V
Power Rating: 1.3 W
Lens Color: Colorless
Lens Dimensions: 3.7 mm x 1.62 mm
Lens Shape: Dome
Lens Transparency: Clear
Series: P3737
Packaging: Reel
Packaging: Cut Tape
Brand: ams OSRAM
Height: 2.37 mm
Length: 3.7 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
3000
Subcategory: LEDs
Tradename: OSCONIQ
Type: Single Color LEDs
Viewing Angle: 125 deg
Width: 3.7 mm
Part # Aliases: Q65115A0384
