Description

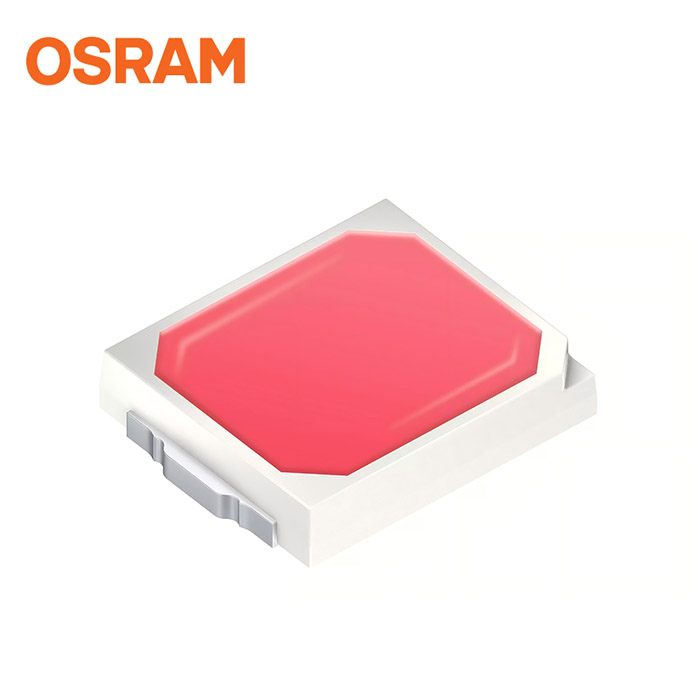

DURIS® E 2835 GP JTLPS1.14 The DURIS® E 2835 color family provide supreme efficacy in cost effective industry standard LED. DURIS® E 2835 never fails to impress with its performance on system level.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

Features

– Package: white SMT package, colored diffused silicone resin

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Radiant Flux: typ. 203 mW

– Radiant Efficiency: typ. 48%

– Photosynthetic Photon Flux: typ. 0.93 μmol/s

– Photon Efficacy: typ. 2.56 μmol/J

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Purple LEDs
Mounting Style: SMD/SMT
Wavelength/Color Temperature: 455 nm
Illumination Color: Purple
Luminous Flux/Radiant Flux: 21 lm
If – Forward Current: 150 mA
Vf – Forward Voltage: 2.86 V
Power Rating: 440 mW
Lens Color: Tinted
Lens Dimensions: 3.3 mm x 2.8 mm
Lens Shape: Rectangular with Sidecut
Lens Transparency: Diffused
Series: GP JTLPS1.14
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: ams OSRAM
Height: 0.7 mm
Length: 3.5 mm
Luminous Intensity: 6.79 cd
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
10000
Subcategory: LEDs
Tradename: DURIS
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 2.8 mm
Part # Aliases: Q65113A1493
