Description

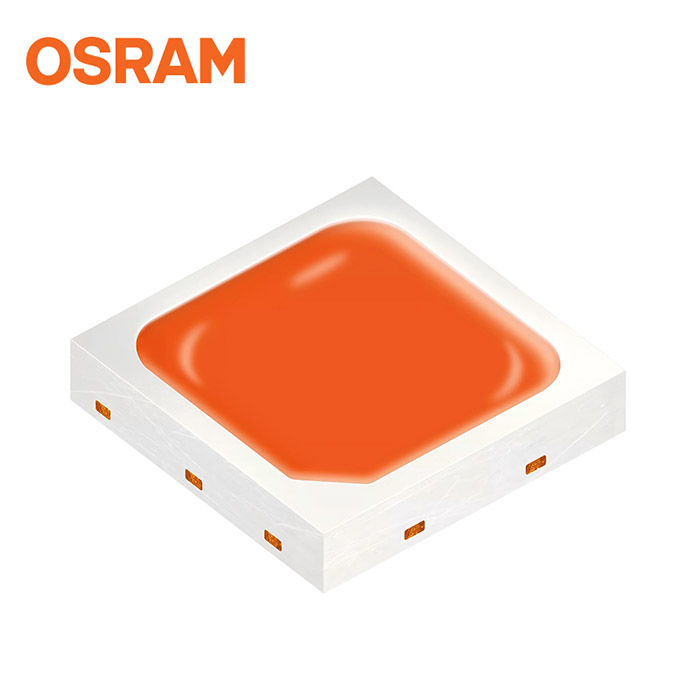

GP PSLM31.14 DURIS® S 5 The compact, mid-power Duris® S 5 LED with industry standard 3030 package that comes with high efficacy, color quality and long lifetime. Ideal choice for indoor General Lighting applications.

Applications

– Architecture

– Architecture / Garden Lighting (LED & Laser)

– Horticulture Lighting – Medical Illumination

– Photo Therapy

Features

– Package: white SMT package, colored diffused silicone resin

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 4 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3A)

– Radiant Flux: typ. 128 mW

– Radiant Efficiency: typ. 45 %

– Photosynthetic Photon Flux: typ. 0.58 μmol/s

– Photon Efficacy: typ. 2.07 μmol/j

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Horticulture LEDs
Mounting Style: SMD/SMT
Package / Case: 1212 (3030 metric)
Illumination Color: Purple
Luminous Flux/Radiant Flux: 15.7 lm
If – Forward Current: 100 mA
Vf – Forward Voltage: 2.85 V
Power Rating: 280 mW
Lens Color: Tinted
Lens Dimensions: 2.55 mm x 2.55 mm
Lens Shape: Square
Lens Transparency: Diffused
Series: GP PSLM31.14
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: ams OSRAM
Height: 0.6 mm
Length: 3 mm
Luminous Intensity: 5.17 cd
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
4500
Subcategory: LEDs
Tradename: DURIS
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 3 mm
Part # Aliases: Q65112A7173
Unit Weight: 0.000705 oz
