Description

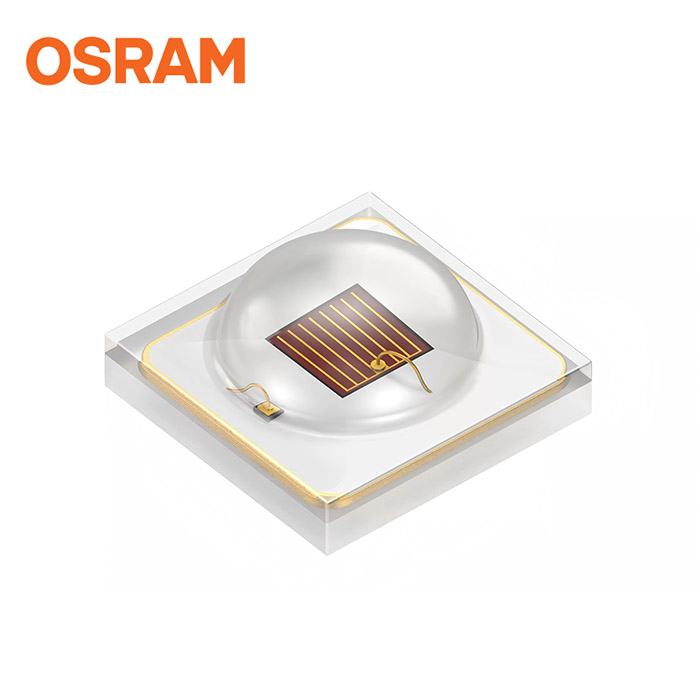

OSLON® SSL 150 GR CSHPM1.23 New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.

Applications

– Agriculture & Horticulture

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMT ceramic package with silicone lens

– Typ. Radiation: 150°

– Lumen maintenance: Test results according to IESNA LM-80 available

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Luminous Flux: typ. 86 lm

– Luminous efficacy: typ. 117 lm/W

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Wavelength/Color Temperature: 623 nm
Illumination Color: Red
Luminous Flux/Radiant Flux: 68 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.1 V
Power Rating: 740 mW
Series: GR CSHPM1.23
Packaging: Reel
Packaging: Cut Tape
Brand: ams OSRAM
Height: 1.51 mm
Length: 3 mm
Luminous Intensity: 13.2 cd
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
600
Subcategory: LEDs
Tradename: OSLON
Type: Single Color LEDs
Viewing Angle: 150 deg
Width: 3 mm
Part # Aliases: Q65113A1181
