Description

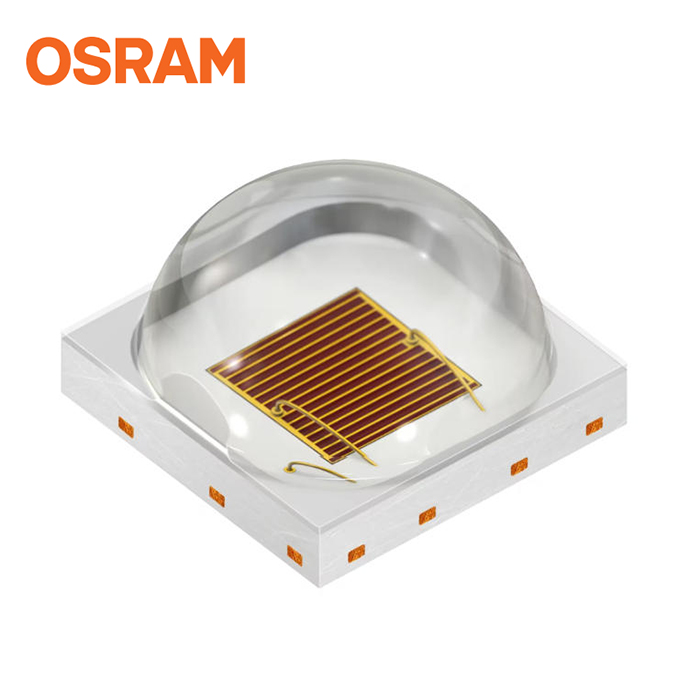

OSCONIQ™ P 3737 (2W) GR PUSRA2.25
Brand new, upgraded high-power LED with our ams OSRAM’s latest chip technology and new generation of optimized lens, delivering industry leading performance, superior robustness and long lifetime. With high efficiency REDS available in three wavelengths, the family offers five colors for ease of design and high flexibility for all your horticulture spectrum needs.
Applications
– Agriculture & Horticulture
– Entertainment
Features
– Package: SMD epoxy package with silicone lens
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Typ. Radiation: 120°
– Radiant Flux (@ 700mA); typ. 912 mW @ 85°C
– Radiant Efficiency (@ 700mA): typ. 66.8% @ 85°C
– Photon Flux (@ 700mA): typ. 4.92 μmol/s @ 85°C
– Photon Flux Efficacy (@ 700mA): typ. 3.61 μmol/J @ 85°C
– ThinFilm LED chip designed and manufactured in Germany
| Emission Color | Red (612-630 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Power | 1.4 W (High) | Beam Angle | ∢ Typical 125° |
| Dimensions | l Typical 3.7 mm w Typical 3.7 mm h Typical 2.37 mm |
Brightness | Typical ΦV: 29 lm Typical IV: 8.23 cd Typical ΦE: 888 mW Typical IE: 252 mW/sr Typical ΦP: 4.97 µmol/s |
| Product Category | Description | Order Code |
|---|---|---|
| GR PUSRA2.25-S5T1-1-1 | Φ<_sub>P = 4.65 … 5.30 μmol/s (IF = 700 mA) | Q65115A0349 |
