Description

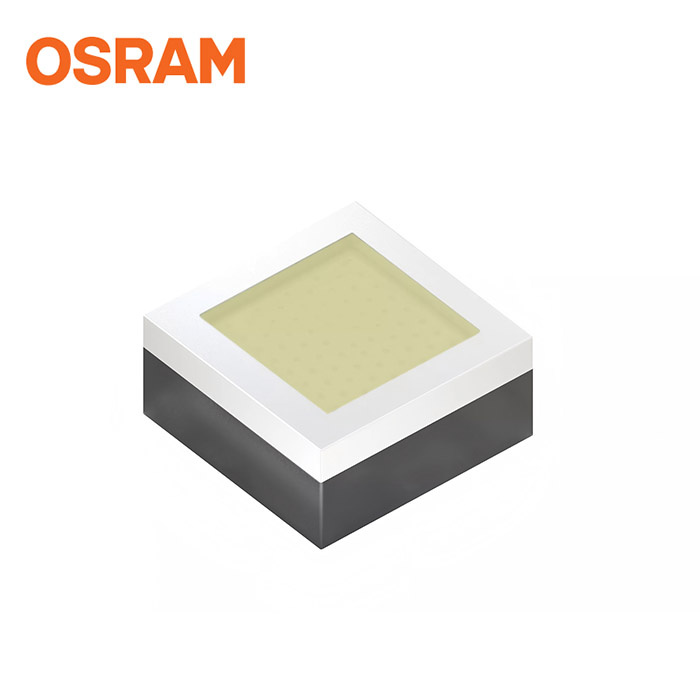

OSLON® Pure 1414 GT VJLPL1.13 The OSLON Pure® 1414, one of the best lumen density, excellent efficiency and color homogeneity. The OSLON Pure® 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.

Applications

– Appliances & Tools

– Entertainment

– Factory Automation

– Indoor Lighting

– Medical Lighting

– Outdoor & Industrial Lighting

– Projection & Display

– Robotics

Features

– Package: chip level conversion

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Luminous Flux: typ. 121 lm @ 25 °C

– Luminous efficacy: typ. 129 lm/W

Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Green LEDs
Mounting Style: SMD/SMT
Package / Case: 0505 (1414 metric)
Wavelength/Color Temperature: 525 nm
Illumination Color: Green
Luminous Flux/Radiant Flux: 121 lm
If – Forward Current: 350 mA
Vf – Forward Voltage: 2.67 V
Power Rating: 930 mW
Lens Color: Colorless
Lens Dimensions: 1.1 mm x 1.1 mm
Lens Shape: Square
Lens Transparency: Clear
Series: Pure 1414
Packaging: Reel
Packaging: Cut Tape
Brand: ams OSRAM
Height: 0.75 mm
Length: 1.4 mm
Luminous Intensity: 41.3 cd
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
1000
Subcategory: LEDs
Tradename: OSLON
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 1.4 mm
Part # Aliases: Q65113A7111
