Description

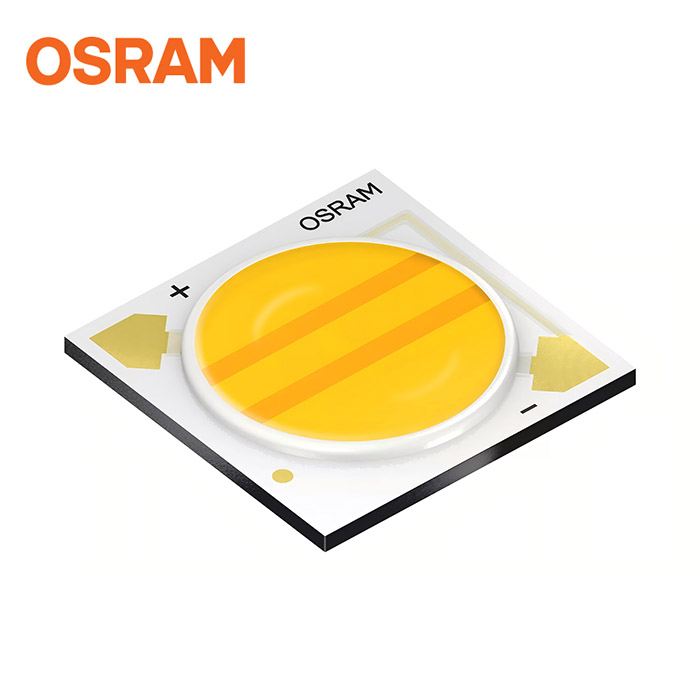

SOLERIQ™ S 15 GW CAGJL1.HM The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.

Applications

– Indoor Lighting

Features

– Package: Chip-on-Board, Ceramic package

– Typ. Radiation: 120° (Lambertian emitter)

– Color temperature: 2700K – CRI: 90 (min.)

– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Luminous Flux: typ. 3020 lm @ 2700 K, 25 °C

– Luminous Efficacy : typ. 113 lm/W @ 2700 K, 25 °C

Manufacturer: ams OSRAM
Product Category: White LEDs
RoHS:
Product: White CoB LEDs
Mounting Style: PCB
Package / Case: 19 mm x 19 mm x 1.5 mm
Illumination Color: Warm White
Wavelength/Color Temperature: 2700 K
Luminous Intensity: 986 cd
Luminous Flux/Radiant Flux: 3020 lm
Color Rendering Index – CRI: 90
Viewing Angle: 120 deg
If – Forward Current: 720 mA
Vf – Forward Voltage: 37 V
Power Rating: 27 W
Length: 19 mm
Width: 19 mm
Height: 1.5 mm
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 105 C
Lens Dimensions: 15.7 mm
Series: GW CAGJL1.HM
Packaging: Tray
Brand: ams OSRAM
Product Type: White LEDs
125
Subcategory: LEDs
Tradename: SOLERIQ
Type: High Power LEDs
Part # Aliases: GW CAGJL1.HM-TPTQ-27S3-720-T05 Q65112A8958
