Description

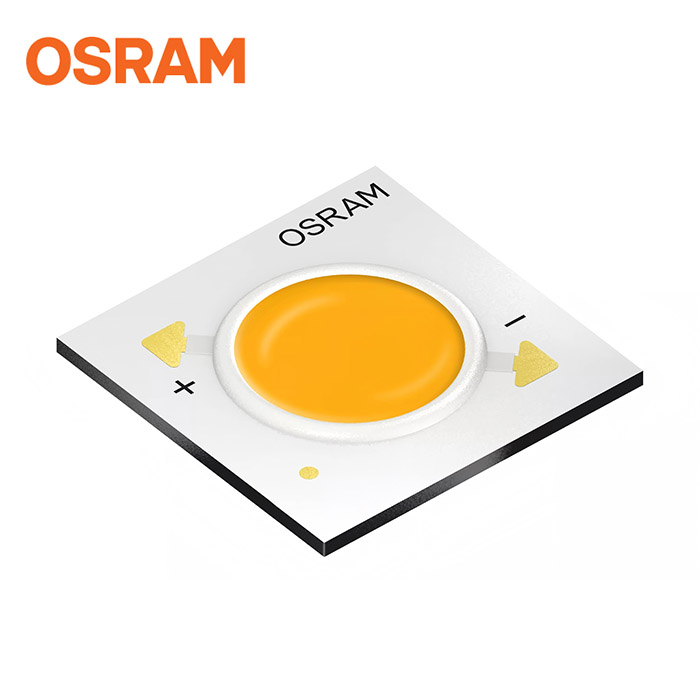

SOLERIQ™ S 12 GW CAMLBA.EM The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.

Applications

– Indoor Lighting

Features

– Package: Chip-on-Board

– Typ. Radiation: 120° (Lambertian emitter)

– Color temperature: 3000K – 5000K

– CRI: 80 (min.) – ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Luminous Flux: typ. 3260 lm @ 3000 K, 25 °C

– Luminous efficacy: typ. 124 lm/W @ 3000 K, 25 °C
