Description

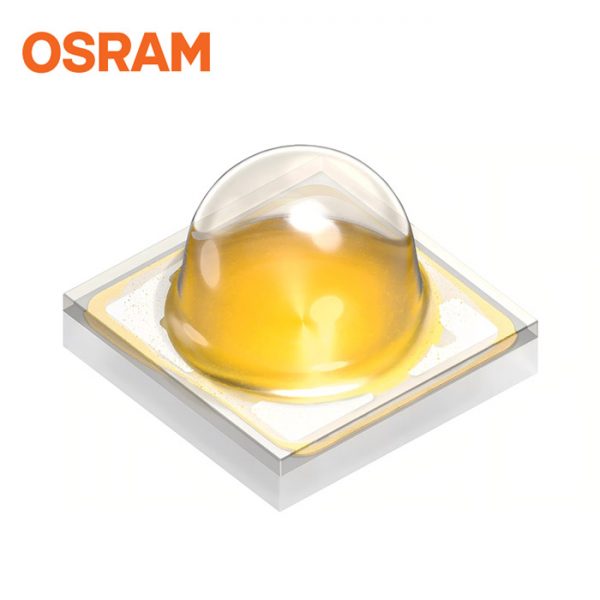

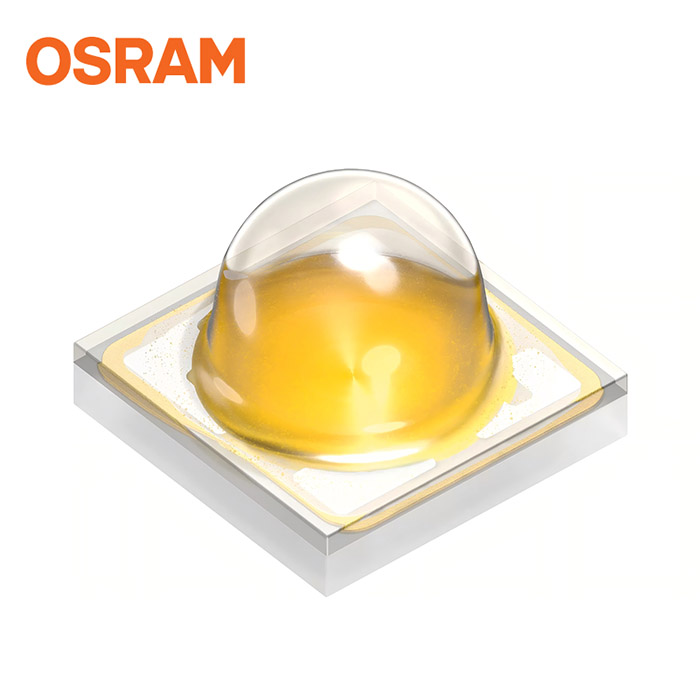

OSLON® SSL 80 GW CS8PM1.PM Higher performance. Lower thermal resistance. Extended range of driving conditions. This OSLON SSL family new generation LED offers a prefocused radiation pattern making it the ideal choice for spot lighting applications.

Applications

– Entertainment

– Indoor Lighting

– Outdoor & Industrial Lighting

Features

– Package: SMT ceramic package with silicone lens

– Typ. Radiation: 80°

– Color temperature: 3000K – 6500K

– CRI: 70 (min.), 72 (typ.), R9: -40 (min.)

– Lumen maintenance: Test results according to IESNA LM-80 available

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Luminous Flux: typ. 155 lm @ 5000 K, 85 °C

– Luminous efficacy: typ. 155 lm/W @ 5000 K, 85 °C

Manufacturer: ams OSRAM
Product Category: White LEDs
RoHS:
Series: OSLON SSL 80
Brand: ams OSRAM
600
Subcategory: LEDs
Tradename: OSLON
Part # Aliases: Q65113A9956
