Description

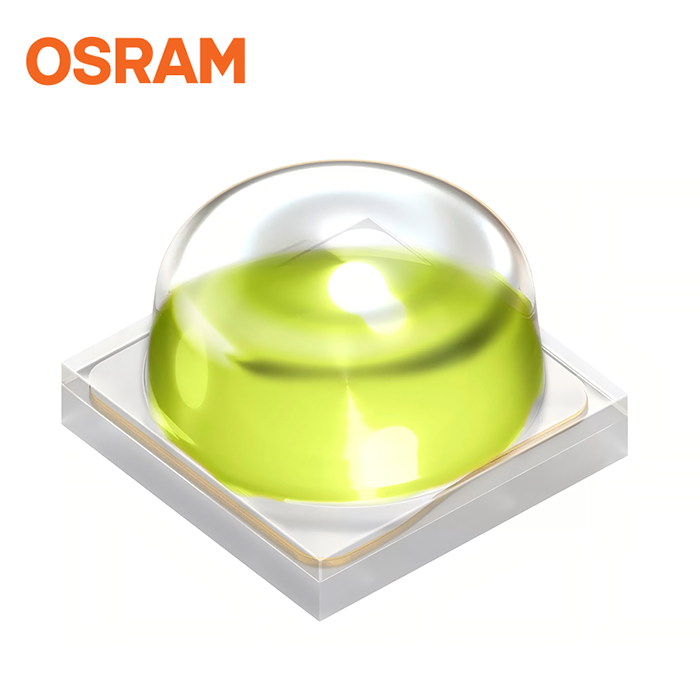

OSLON® Square GW CSBRM3.HW
OSLON® Square Horti White now comes with a unique innovative radiation pattern. Paired with a customized phosphor solution, this latest LED illuminates plants evenly for uniform growth while facilitating the increase of non-converted red pho- tons to deliver superior fixture level efficacy. Additionally, this high-power LED provides excellent reliability, long lifetime, proven robustness and low thermal resistance in a compact footprint
Applications
– Agriculture & Horticulture
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Package: SMD ceramic package with silicone lens
– Typ. Radiation: 150°
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Radiant Flux: typ. 1140 mW @ 700mA ; typ. 607 mW @ 350mA
– Radiant Efficiency: typ. 56% @ 700mA; typ. 62% @ 350mA
– Photon Flux: typ. 5.02 μmol/s @ 700mA ; typ. 2.66 μmol/s @ 350mA
– Photon Flux Efficacy: typ 2.47 μmol/J @ 700mA ; typ 2.71 μmol/J @ 350mA
| Emission Color | White | Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Power | 2.0 W (High) | Beam Angle | ∢ Typical 140° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 2.02 mm |
Brightness | Typical ΦV: 394 lm Typical IV: 81.2 cd Typical ΦE: 1130 mW Typical IE: 233 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GW CSBRM3.HW-VOAQ-H1H2-1 | ΦE = 1035 … 1300 mW (IF = 700 mA) | Q65113A6876 |
| GW CSBRM3.HW-VOAQ-H3H4-1 | ΦE = 1035 … 1300 mW (IF = 700 mA) | Q65113A6875 |
