Description

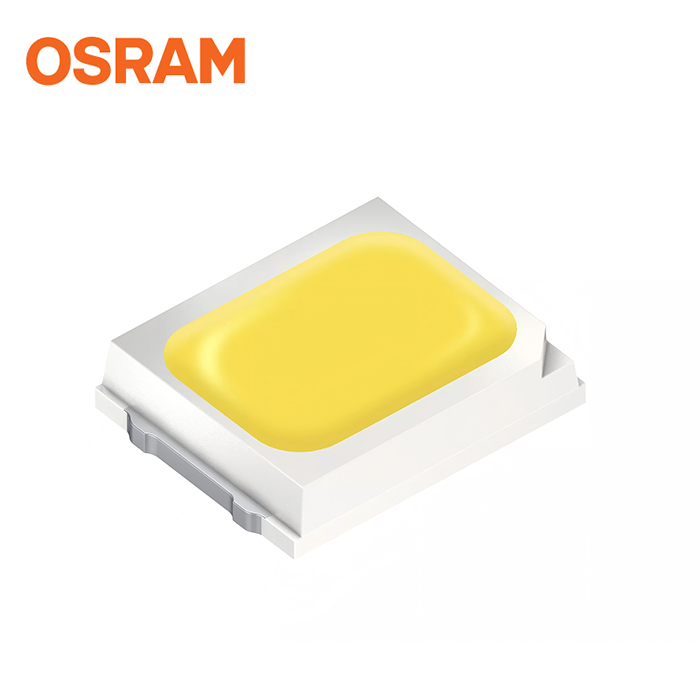

OSRAM DURIS ® E 2835 GW JTLMS3.GM
The pre-molded PPA 2835 LED version with standard 2835 footprint provides competitive value in application and system level. The DURIS ® E 2835 0.2W SOFTLINEAR combines good mechanical flexibility and a wide beam angle into a compact format (2.8 mm x 3.5 mm). This product fits well to flexible strips general lighting application and High CRI series enable rich color rendering design needs. DURIS ® E 2835 never fails to impress with its performance on system level.
Applications
– Indoor Lighting
Features
– Package: white SMT package, colored diffused silicone resin
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2200K – 6500K
– CRI: 97 (min.), 98 (typ.), R9: 90 (min.)
– Lumen maintenance: Test results according to IESNA LM-80 available
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 18.5 lm @ 3000 K
– Luminous efficacy: typ. 105 lm/W @ 3000 K
| Emission Color | White | CRI | 97 |
| Power | 0.18 W (Mid) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.5 mm w Typical 2.8 mm h Typical 0.7 mm |
Brightness | ΦV Typical 21 lm IV Typical 7.2 cd ΦE Typical 82.8 mW IE Typical 28.4 mW/sr ΦP Typical 0.106 µmol/s |
| Operating Temperature | Top Minimum -40°C/Top Maximum 100°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW JTLMS3.GM-G2G6-XX510-1 | ΦV = 13.5 … 21.0 lm, Mountingmethode:SDCM 5, 2200 K (IF = 60 mA) | Q65113A8536 |
| GW JTLMS3.GM-G3G7-XX58-1 | ΦV = 15.0 … 22.5 lm, Mountingmethode:SDCM 5, 2700 K (IF = 60 mA) | Q65113A8535 |
| GW JTLMS3.GM-G3G7-XX59-1 | ΦV = 15.0 … 27.0 lm, Mountingmethode:SDCM 5, 2400 K (IF = 60 mA) | Q65113A8673 |
| GW JTLMS3.GM-G4G8-XX57-1 | ΦV = 16.5 … 24.0 lm, Mountingmethode:SDCM 5, 3000 K (IF = 60 mA) | Q65113A8534 |
| GW JTLMS3.GM-G5G9-XX56-1 | ΦV = 18.0 … 25.5 lm, Mountingmethode:SDCM 5, 3500 K (IF = 60 mA) | Q65113A8533 |
| GW JTLMS3.GM-G6GV-XX51-1 | ΦV = 19.5 … 27.0 lm, Mountingmethode:SDCM 5, 6500 K (IF = 60 mA) | Q65113A8537 |
| GW JTLMS3.GM-G6GV-XX52-1 | ΦV = 19.5 … 27.0 lm, Mountingmethode:SDCM 5, 5700 K (IF = 60 mA) | Q65113A8531 |
| GW JTLMS3.GM-G6GV-XX53-1 | ΦV = 19.5 … 27.0 lm, Mountingmethode:SDCM 5, 5000 K (IF = 60 mA) | Q65113A8530 |
| GW JTLMS3.GM-G6GV-XX55-1 | ΦV = 19.5 … 27.0 lm, Mountingmethode:SDCM 5, 4000 K (IF = 60 mA) | Q65113A8532 |
